B–64113EN–1/01

9. SPINDLE SPEED FUNCTION

555

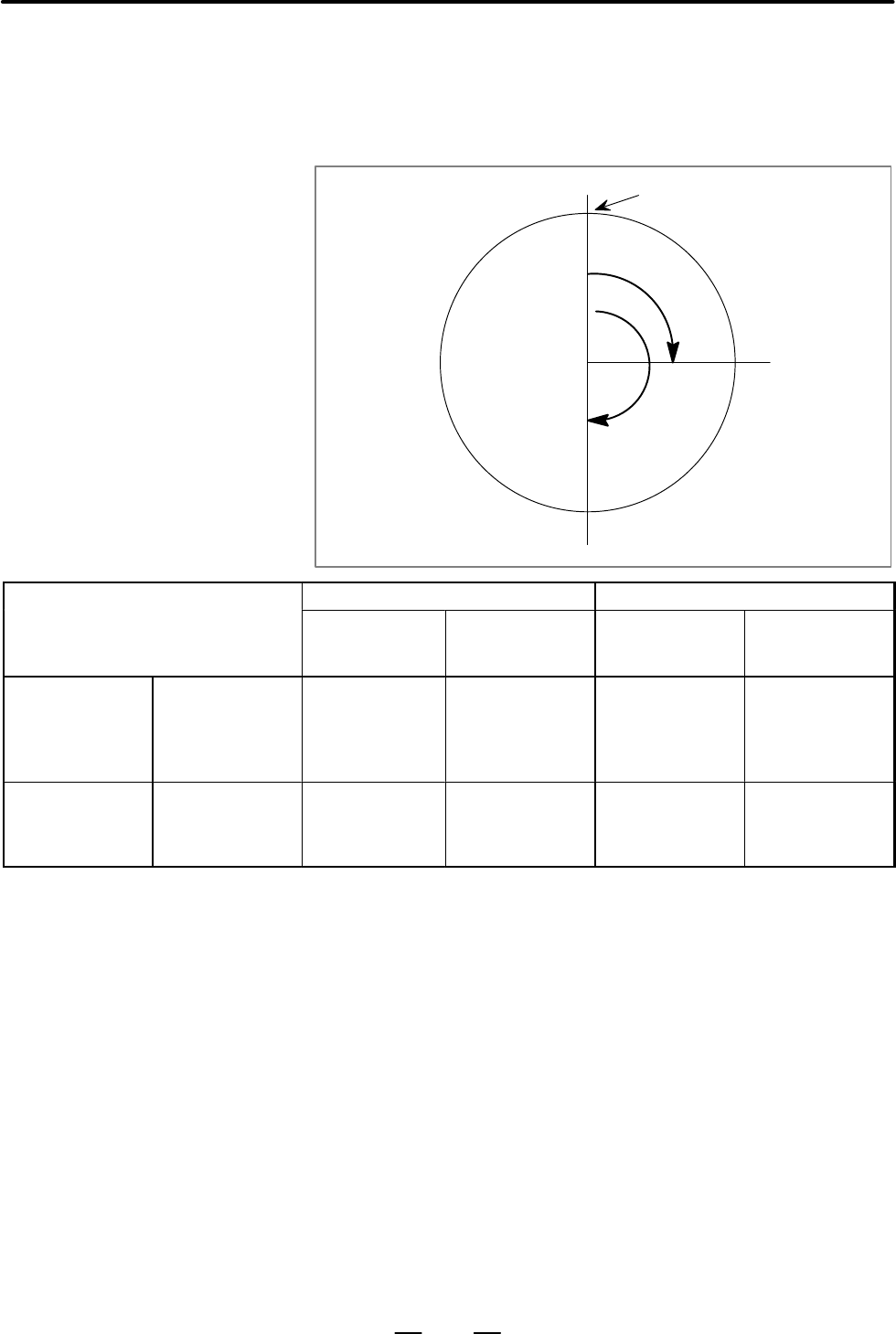

Positioning by specifying a semi–fixed angle (by M code) is always

incremental. To perform positioning by specifying an optional angle,

specify the distance between the program origin and the end point

(absolute) with address C and the distance between the start point and the

end point (incremental) with address H.

180°

90°

Program origin

Command method

G code system A G code system B, C

Command method

Address used

Command of

A!B on the

above Fig.

Address used

and G–code

Command of

A!B on the

above Fig.

Absolute

command

Direct the end

point position by

the distance from

the program

origin.

C C180.0 ; G90,C G90C180.0 ;

Incremental

command

Command by the

distance between

the start and end

points.

H H90.0 ; G91,C G91C90.0 ;

Spindle positioning is done at the rapid traverse rate specified by

parameter No. 1420, to which linear acceleration deceleration are applied.

Overrides of 100%, 50%, 25% and F0 (parameter No. 1421) are also

applied.

A specific M code (parameter no. 4961) must be set when the mode is

changed from spindle positioning to normal spindle rotation.

D Absolute and

incremental commands

D Spindle positioning

feedrate

D Spindle positioning reset
