13. INPUT/OUTPUT OF DATA
B–64113EN–1/01
944
G067#7
(HCREQ)
F061#3
(HCEXE)
G067#6
(HCABT)
F061#2
(HCAB2)

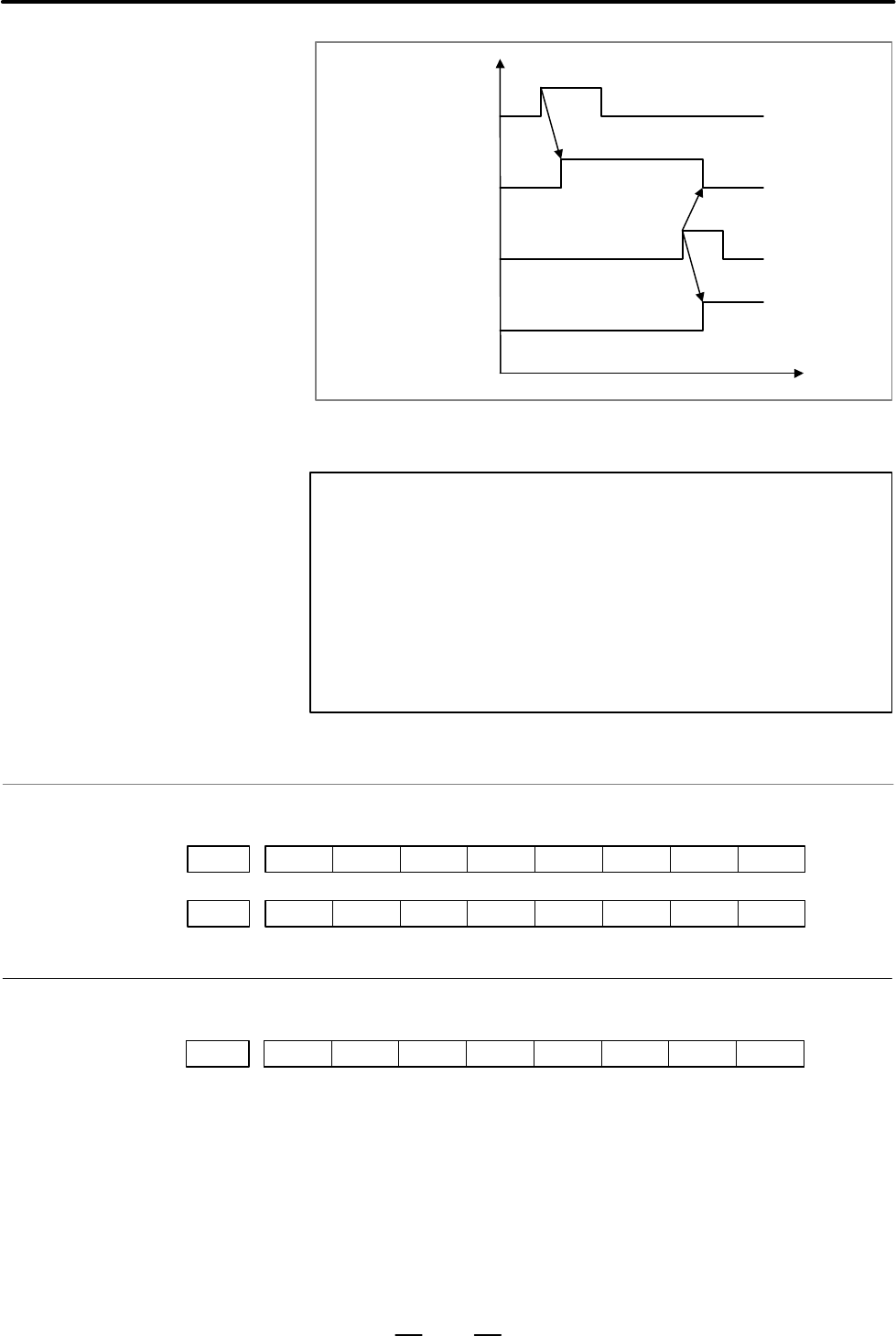

Fig. 13.6 (b) Time chart when screen hard copy is interrupted
CAUTION
1 Even when the hard copy stop request acceptance signal
(HCAB2, F063#2) is 1, another hard copy operation can
start. In this case, HCAB2 is set to 0 automatically.
2 Even when the hard copy in–progress signal (F061#3) is set
from 1 to 0 (hard copy operation is terminated for a cause),
the next hard copy operation does not start unless G067#7
(HDCPY) is set to 0 once.
#7
HCREQG67
#6
HCABT
#5 #4 #3 #2 #1 #0
#7
F61
#6 #5 #4 #3
HCEXE
#2
HCAB2
#1 #0
#7
HDCPY3301
#6 #5 #4 #3
HCNEG
#2
HCALM
#1 #0
HDCL1
[Data type] Bit
HDCL1 When the screen display is in VGA compatible mode on a color LCD:
0 : Hard copy is performed with 256–color BMP. (The same colors as
those on the screen display can always be obtained, but data is
transferred to the memory card slowly.)
1 : Hard copy is performed with 16–color BMP. (Data is transferred to
the memory card at high speed, but the colors in the data may differ
from those on the screen display.)
Signal Address
Parameter
