0i/0i Mate - Model C Connection manual (Function) Page 516

Connection manual (Function)
8. AUXILIARY FUNCTION
B–64113EN–1/01
498
Mxx
Myy
Next block
Code signal
Strobe signal MF
PMC side operation
Miscellaneous function
completion signal MFIN

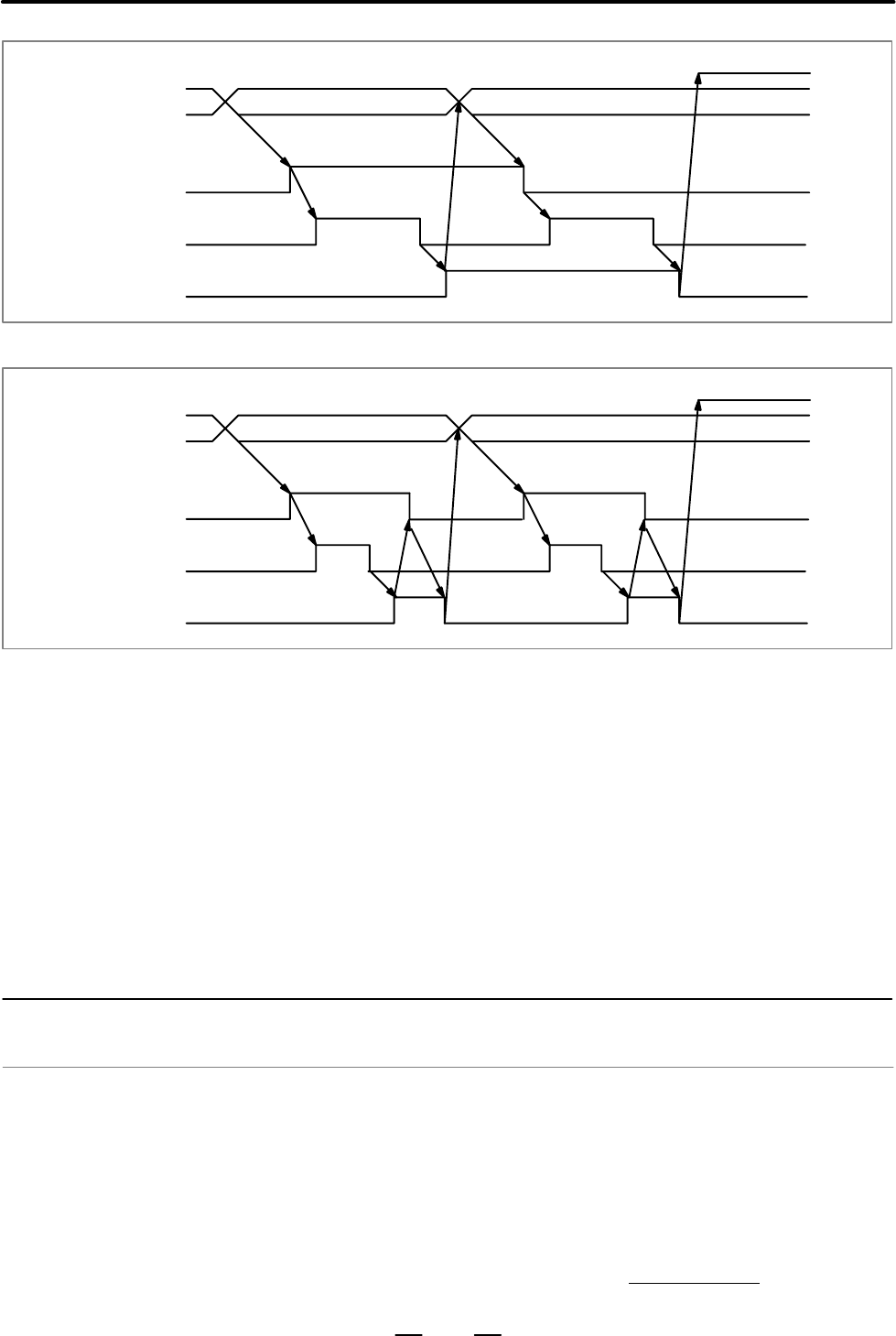

Fig. 8.4 (a) Timing chart of the high–speed system
Mxx
Myy
Next block
Code signal
Strobe signal MF
PMC side operation
Completion signal FIN
Fig. 8.4 (b) Timing chart of the usual system
A high–speed interface can also be used for multiple M commands issued
for one block. This interface provides separate completion signals for
each M code. They are called MFIN (the same name as for the single M
command per block function), MFIN2, and MFIN3, respectively. The
signal transfer sequence for multiple M codes per block is the same as that
for a single M code per block.
The high–speed interface can also be used for the external operation
function. In this case, special external operation signal EFD and
completion signal EFIN are used. The procedure for sending and
receiving these signals is identical to that for sending and receiving the
strobe and completion signals of the miscellaneous function (M series).
[Classification] Input signal
[Function] Reports that the execution of a miscellaneous function using the high–
speed M/S/T/B interface is completed.
[Operation] For the operation and aprocedure of the contol unit when this signal turns
to “1” and “0”, see the description of “Basic procedure” above.
Signal
Miscellaneous function
completion signal
MFIN <G005#0>
