B–64113EN–1/01

4. REFERENCE POSITION ESTABLISHMENT

265

The reference position establishment procedure is explained below.

<1> The tool is fed along a specified axis at the reference position return

FL feedrate (parameter No. 1425).

<2> Upon detection of a reference mark on the scale, the tool is stopped

briefly then fed at the reference position return FL feedrate.

<3> Step <2> above is repeated until three or four reference marks are

detected on the scale. Then, the reference position is established,

and the reference position established signal (ZRF1, ZRF2, ZRF3,

etc.) is set to 1.

<4> The tool is fed to a specified end point at a rapid traverse rate.

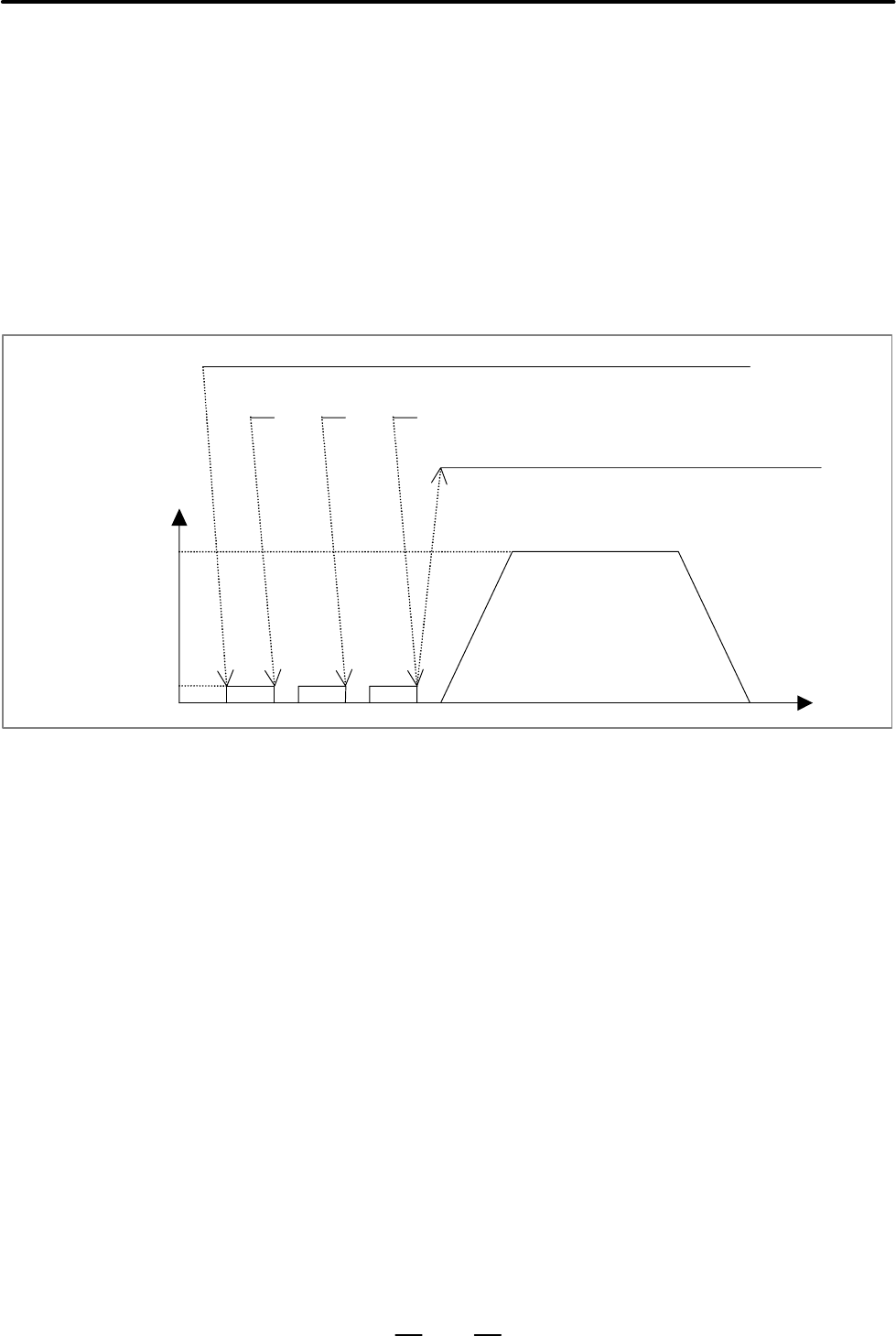

A time chart for the above procedure is shown below.

ZRFn

G00 command

Reference mark

Feedrate

Rapid traverse rate

FL feedrate

Time

Fig. 4.8 (b) Time chart for reference position establishment (G00)

The specifications for the steps of detecting reference marks and

establishing the reference position (steps <1> to <3> above) are the same

as for the conventional linear scale with absolute addressing reference

marks. The restrictions are also the same.

For details, see Section 4.7, ”Linear Scale I/F with Absolute Address

Referenced Mark (A/B Phase)/Linear Scale with Distance–Coded

Reference Marks (Serial)”.

The tool path in the G00 command is explained below.

(1)When no axis requires the reference position establishment operation

When the reference position has already been established for all

specified axes, the reference position establishment operation is not

performed.

For example, suppose that the reference position is already established

for the X–, Y–, and Z–axes, and that G00 Xxx Yyy ZZz; is specified.

Then, normal rapid traverse operation takes place. The tool path

follows the setting in bit 1 (LRP) of parameter No. 1401.

D Operation

D Tool path
