6. INTERPOLATION FUNCTION

B–64113EN–1/01

324

r=50mm

End point

Start point

r=50mm

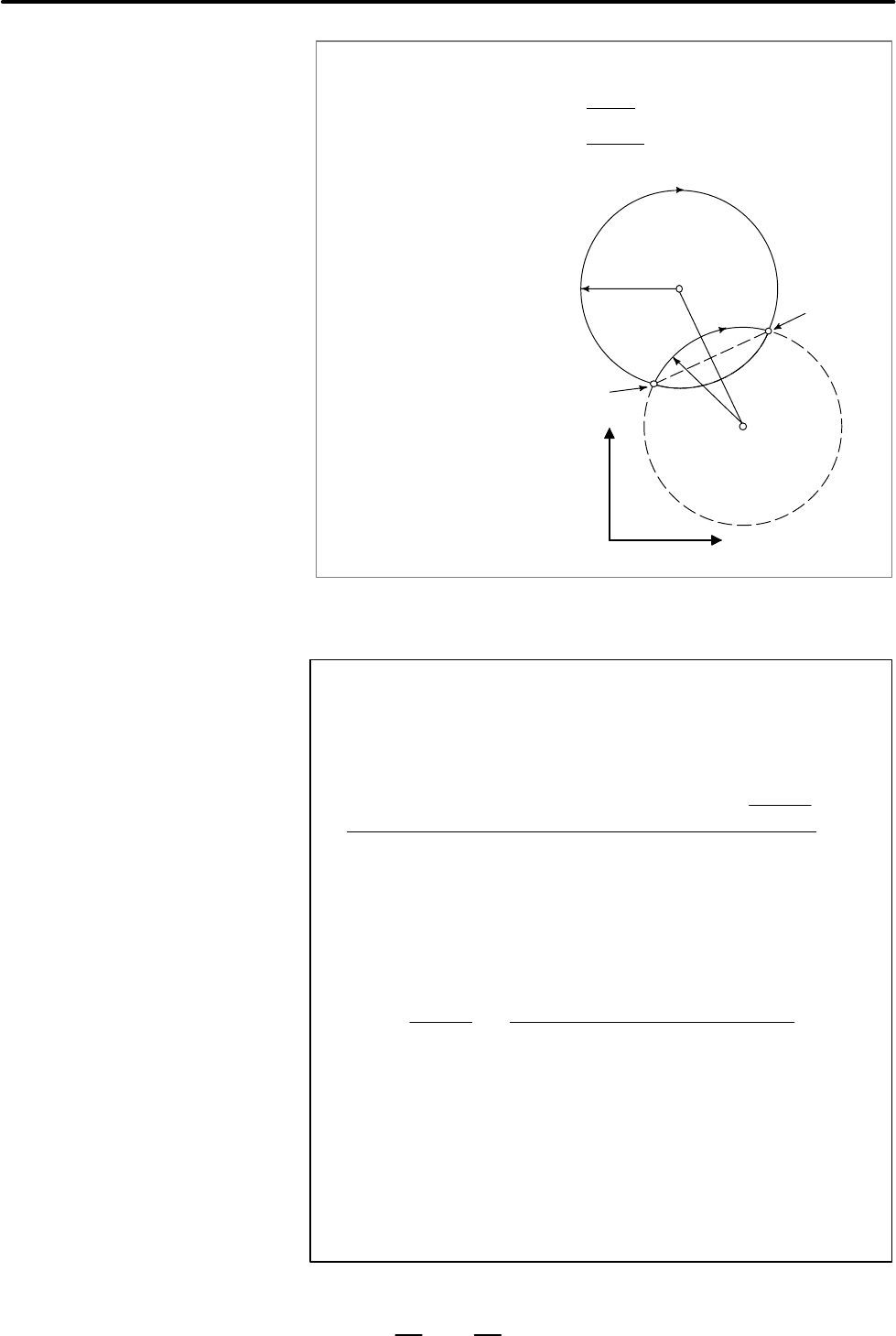

(Example) (M series)

For arc (1) (less than 180_)

G91 G02 X60.0 Y20.0 R50.0

F300.0 ;

For arc (2) (greater than 180_ )

G91 G02 X60.0 Y20.0 R–50.0

F300.0 ;

(1)

(2)

NOTE

1 Specifying an arc center with addresses I, K, and J

When the distance from the arc start point to the arc center

is specified with addresses I, K, and J, a P/S alarm (No.

5059) is issued if:

Example:

When IS–B and metric input are selected, issuing the

following command (radius specification) will result in the

issue of a P/S alarm (No. 5059):

2 Tool nose radius compensation

In tool nose radius compensation mode, a P/S alarm (No.

5059) is issued if the distance from the tool nose radius

center to the arc center exceeds the maximum value which

can be specified.

Maximum value which can be specified <

G50 X0 Z0;

G18 G02 X11.250 Z10. I–800000.000 K900000.000 F5.0;

+ (–800000.000)

)900000.000

= 1204159.458

> 999999.999
