5. AUTOMATIC OPERATION

B–64113EN–1/01

278

The CNC is reset and enters the reset state in the following cases:

1. When the emergency stop signal (*ESP) is set to 0

2. When the external reset signal (ERS) is set to 1

3. When the reset and rewind signal (RRW) is set to 1

4. When MDI RESET key is pressed

When the CNC is reset, the resetting signal (RST) is output to the PMC.

The resetting signal (RST) is set to 0 when the resetting signal output

time, set with parameter No. 3017, has elapsed after the above conditions

have been released.

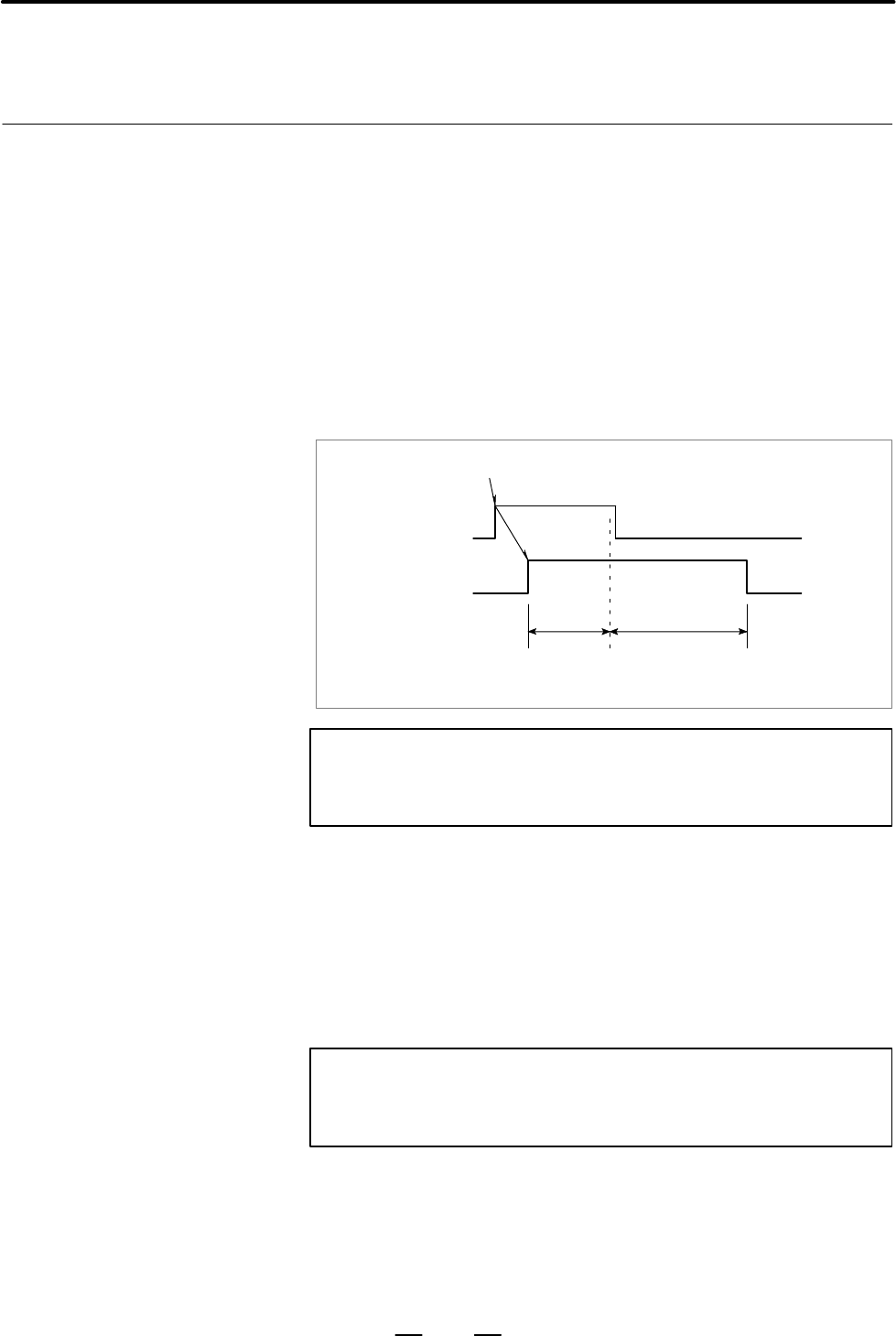

RST signal output time = T

reset

(Reset processing time) + (parameter

setting value) 16 msec.

Reset Pro-

cessing

Reset ON

RST signal

reset

(Parameter

setting value)

16 msec

CAUTION

reset

requires at least 16 msec. This time will be longer on

optional configurations.

When the CNC is reset during automatic operation, automatic operation

is stopped and tool movement along the controlled axis is decelerated and

stopped(*1). When the CNC is reset during the execution of the M, S, T,

or B function, signal MF, SF, TF, or BF is set to 0 within 100 ms.

Tool movement along the controlled axis is also decelerated and

stopped(*1) in manual operation (jog feed, manual handle feed,

incremental feed, or etc).

CAUTION

*1 When the emergency stop signal (*ESP) is set to 0, the tool

is stopped by an emergency stop.

Bit 6 (CLR) of parameter No. 3402 is used to select whether the CNC

internal data (such as modal G codes) is cleared or reset when the CNC

is reset. Refer to the Appendix E, ”Status when turning on power, when

cleared, and when reset” in the Operator’s manual for the state of the

internal data when cleared or reset.

5.2

RESET AND REWIND

General
