2. PREPARATIONS FOR OPERATION
141
Three areas which the tool cannot enter can be specified with stored
stroke check 1, stored stroke check 2,and stored stroke check 3.
Stored stroke
check 3
Stored stroke
check 2
Stored stroke check 1
: Forbidden area for the tool

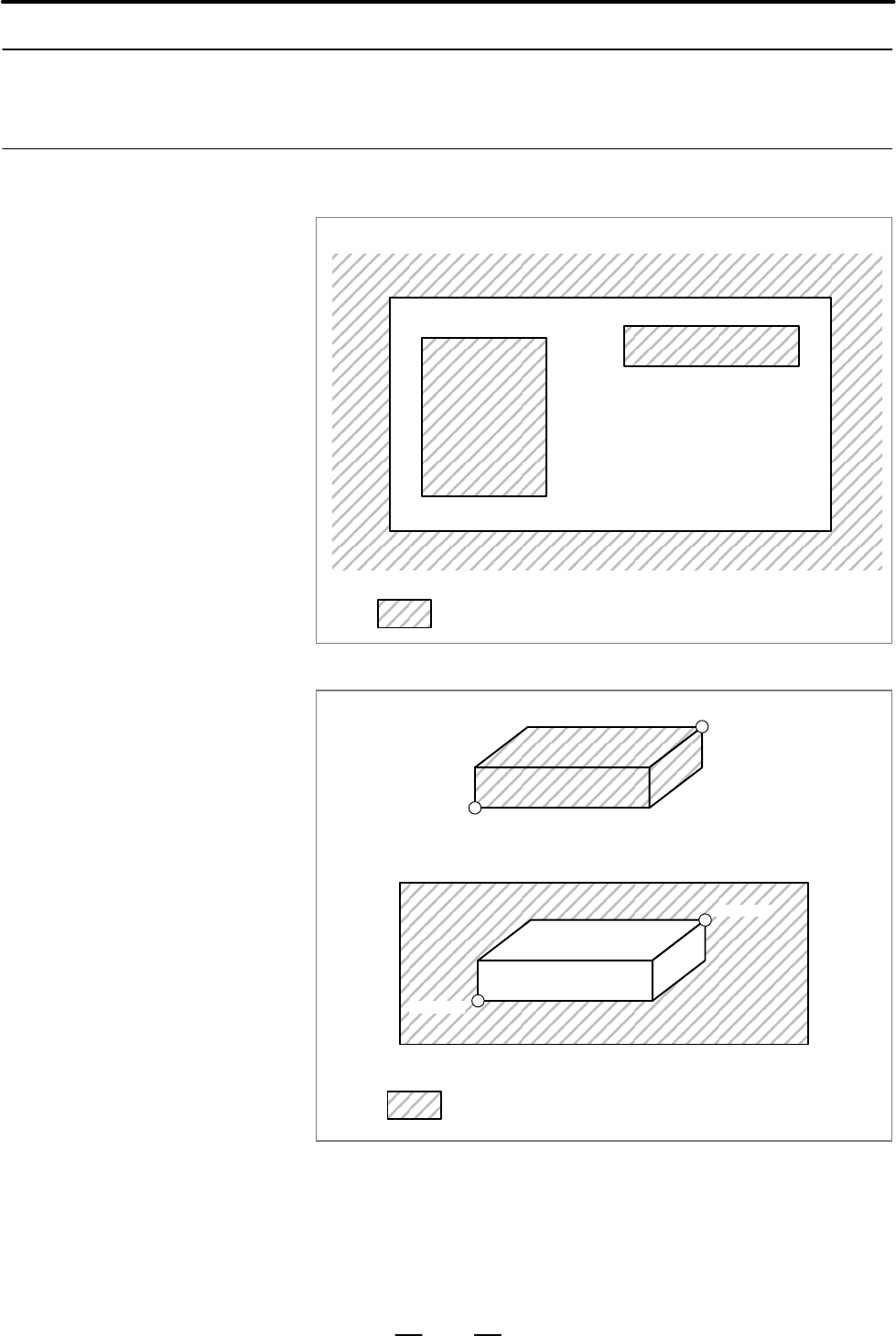

Fig. 2.3.3 (a) Stroke check (T series)
(1) Forbidden area is inside.
(2) Forbidden area is outside.
(I, J, K)
(X, Y, Z)
(I, J, K)
(X, Y, Z)
: Forbidden area for the tool
Fig. 2.3.3 (b) Stroke check (M series)
When the tool tries to move beyond a stored stroke check limit, an alarm
is displayed and the tool is decelerated and stopped.
When the tool enters a forbidden area and an alarm is generated, the tool
may only be moved in the direction from which the tool came.
2.3.3
Stored Stroke
Check 2, 3
General
