B–64113EN–1/01

7. FEEDRATE CONTROL/ACCELERATION

AND DECELERATION CONTROL

381

An override of four steps (F0, 25%, 50%, and 100%) can be applied to the

rapid traverse rate. F0 is set by a parameter (No. 1421).

Also, 1% rapid traverse override select signal allows rapid traverse

override every 1% in the range of 0 to 100%.

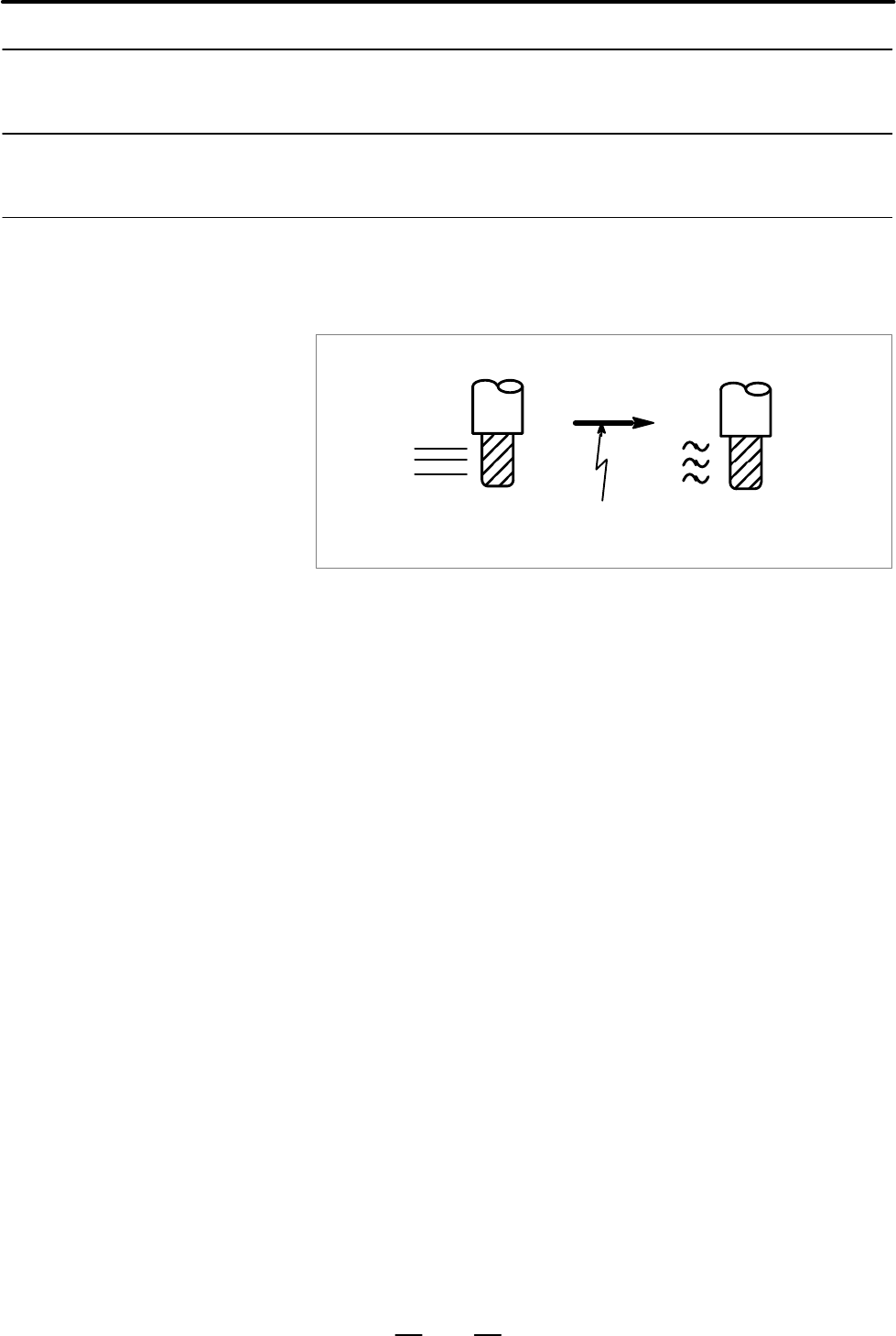

Rapid traverse

rate10m/min

Override

50%

5m/min

Fig.7.1.7.1 Rapid traverse override

Actual feedrate is obtained by multiplying the rapid traverse rate preset

by parameter no.1420 by the override value determined by this signal,

whether in automatic or manual operation (including manual reference

position return).

For F0 value, an absolute value is set by parameter no.1421 within a range

of 0 to rapid traverse rate (for each axis).

1% step rapid traverse override selection signal HROV determines

whether rapid traverse override specified with rapid traverse override

signals ROV1 and ROV2 is used or 1% step rapid traverse override is

used.

When signal HROV is 0, override is applied to the rapid traverse rate

using signals ROV1 and ROV2.

When signal HROV is 1, ROV1 and ROV2 are ignored, 1% step rapid

traverse override signals *HROV0 to *HROV6 being used to override the

rapid traverse rate.

These 1% step rapid traverse override signals are also effective to the rapid

traverse rate for the PMC axis. When rapid traverse override is applied

to the PMC axis (using signals ROV1E and ROV2E) with the setting of

the OVE bit (bit 2 of parameter No. 8001) independently of the CNC, the

1% step rapid traverse override signals are ineffective.

7.1.7

Override

7.1.7.1

Rapid traverse override

General

D Feedrate

D F0 rate

D 1% step rapid traverse

override selection signal

D PMC axis control
