6. INTERPOLATION FUNCTION

B–64113EN–1/01

358

When a tool with a rotation axis (C–axis) is moved in the XY plane during

cutting, the normal direction control function can control the tool so that

the C–axis is always perpendicular to the tool path (Fig. 6.10).

Tool

Programmed tool path

Normal direction (in

which the tool moves)

C–axis

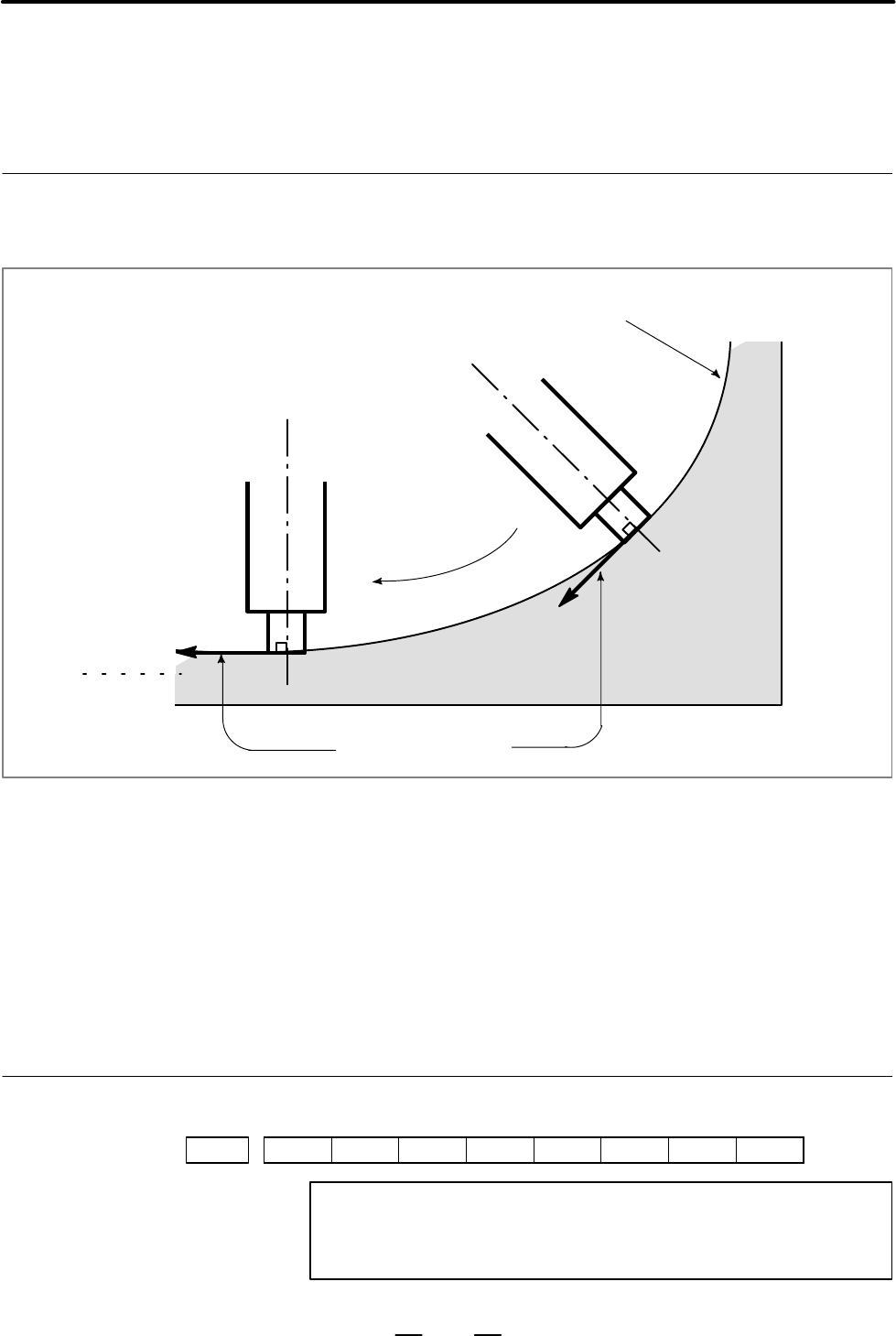

Fig. 6.10 Sample Movement of the tool

Movement of the tool inserted at the beginning of each block is executed

at the feedrate set in parameter 5481. If dry run mode is on at that time,

the dry run feedrate is applied. If the tool is to be moved along the X–and

Y–axes in rapid traverse (G00) mode, the rapid traverse rate is applied.

If the federate of the C axis exceeds the maximum cutting feedrate of the

C axis specified to parameter No. 1422, the federate of each of the other

axes is clamped to keep the federate of the C axis below the maximum

cutting feedrate of the C axis.

1006

#6 #5 #4 #3 #2 #1

ROSx

ROTx

NOTE

When this parameter is changed, turn off the power before

continuing operation.

6.10

NORMAL DIRECTION

CONTROL

(M SERIES)

General

Parameter
