4.DESCRIPTION OF PARAMETERS B-63530EN/03

- 106 -

1620

Time constant T or T

used for linear acceleration/deceleration or

bell-shaped acceleration/deceleration in rapid traverse for each axis

[Data type] Word axis

[Unit of data] msec

[Valid data range] 0 to 4000

Specify a time constant used for acceleration/deceleration in rapid

traverse. (When the optional function of bell-shaped acceleration/

deceleration in rapid traverse is provided, bell-shaped acceleration/

deceleration is applied in rapid traverse. If the function is not provided,

linear acceleration/deceleration is applied.)

(1) When the function is provided, set this parameter to time

constant T

used in bell-shaped acceleration/deceleration in rapid

traverse, and set parameter No.1621 to time constant T

(2) When the function is not provided, specify a time constant used

in linear acceleration/deceleration.

NOTE

1 When parameter No.1621 (time constant T

used

for bell-shaped acceleration/deceleration in rapid

traverse) is set to 0, linear acceleration/

deceleration is applied in rapid traverse even if the

function is provided. In this case, this parameter

stands for a time constant used in linear

acceleration/deceleration in rapid traverse.

2 Depending on the set time constant value, a

movement may be made for a certain period of

time at a feedrate slightly lower than the rapid

traverse rate before the rapid traverse rate is

reached by acceleration. To avoid this

phenomenon, set a multiple of 8 as the time

constant.

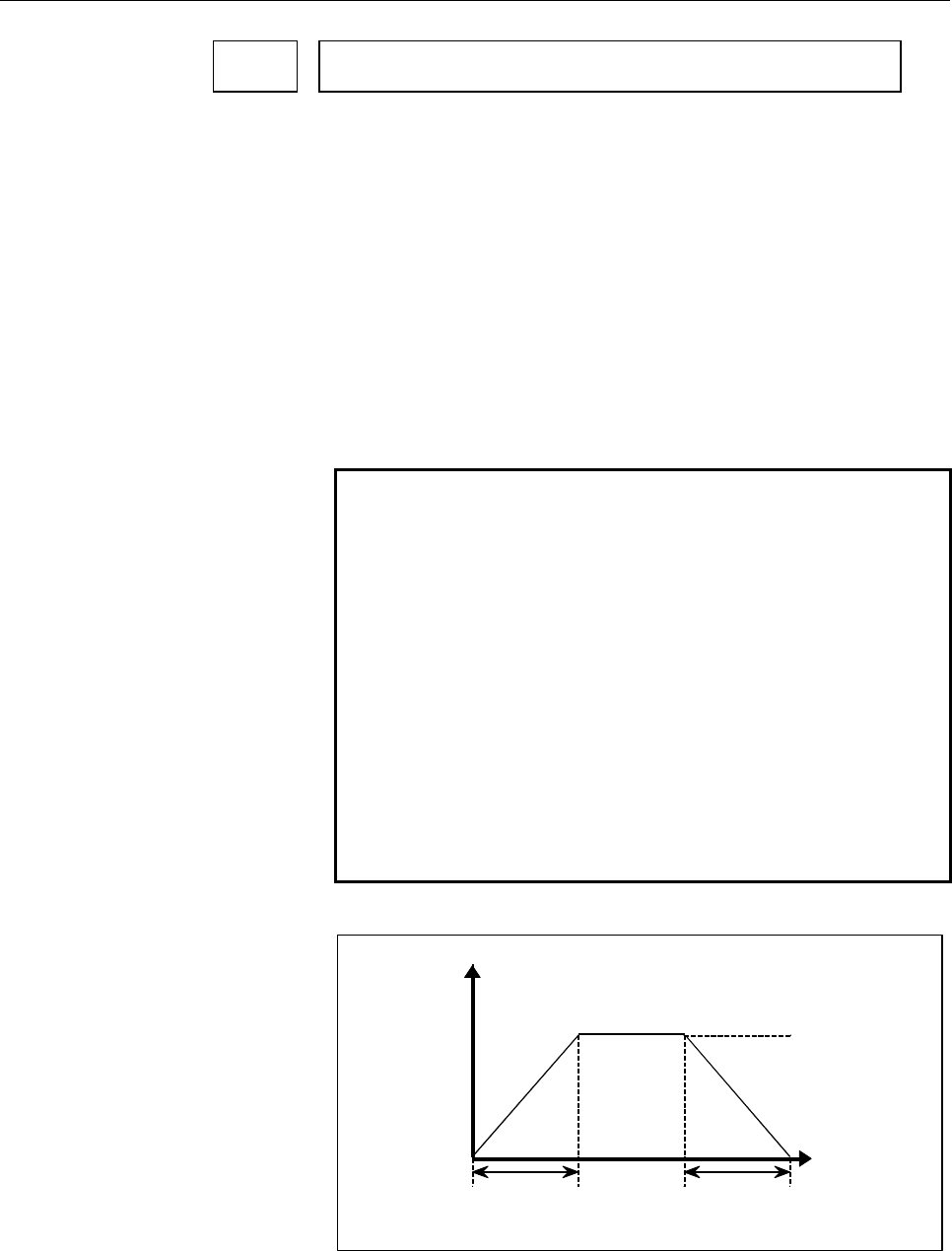

Speed

Rapid traverse

feed rate

Time

T: Time constant for linear acceleration/deceleration
