B-63530EN/03 4.DESCRIPTION OF PARAMETERS

- 735 -

19632

Distance from a programmed point (pivot point) to the tool tip position

(cutting point)

[Data type] 2-word

[Unit of data]

Increment system IS-B IS-C Unit

Linear axis (metric input) 0.001 0.0001 mm

Linear axis (inch input) 0.0001 0.00001 inch

[Valid data range] -99999999 to 99999999

This parameter sets the distance from a programmed point to the

actual cutting point so that a vector calculation for tool radius

compensation for 5-axis machining is made based on the tool tip.

If 0 is set in this parameter, the specification of the tool tip position

(cutting point) for tool radius compensation for 5-axis machining is

invalid.

Rewrite this parameter before turning on the mode of tool radius

compensation for 5-axis machining.

19635

Effective angle in an interference check for three-dimensional cutter

compensation

[Data type] 2-word

[Unit of data]

Increment system IS-B IS-C Unit

Unit of data 0.001 0.0001 deg

[Valid data range] -99999999 to 99999999

A tool direction change is assumed when the angle difference between

two tool direction vectors in three-dimensional cutter compensation is

equal to or greater than the value set in this parameter.

When 0 is set, the specification of 45 degrees is assumed.

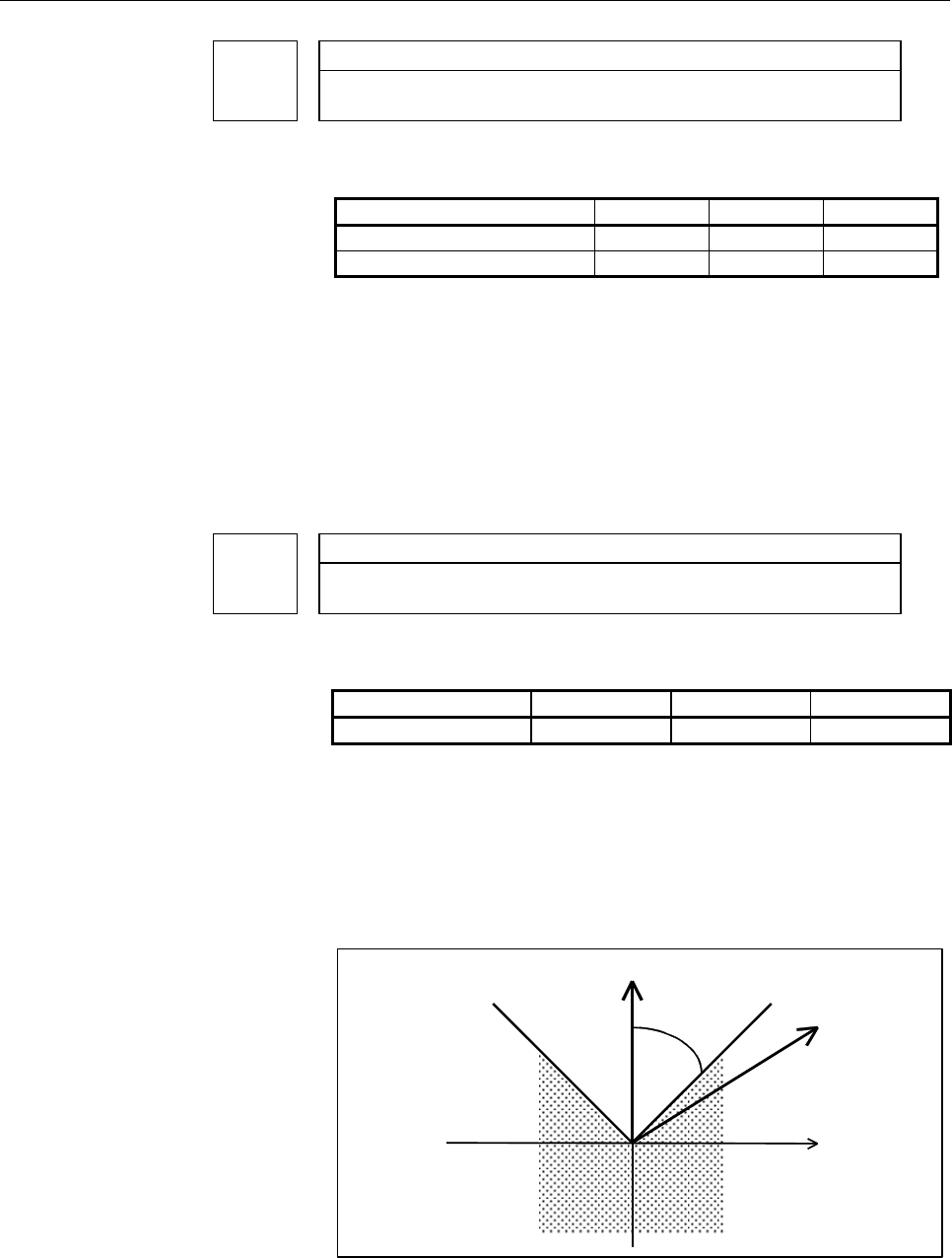

Let two tool direction vectors be Va and Vb. When the difference in

angle is α degrees or more as shown in the figure below, the tool

direction vector is determined to have been changed.

degrees
