3.3.2 High-Speed Positioning Adjustment Procedure

(1) Overview

This section describes the adjustment procedure for high-speed

positioning required with a punch press and PC board drilling

machine.

(2) Adjustment procedure

Make a high-speed positioning adjustment while viewing the ERR

(servo error amount) and TCMD. Set a measurement range as

described below.

• ERR: Adjust the measurement range so that the precision

required for positioning can be seen. When using the

analog check board, measure VCMD instead of ERR.

(Adjust the VCMD magnification and the measurement

voltage level.) In the example below, a requested

precision of 10 µm is assumed.

• TCMD: Make an adjustment to view a specified maximum

current value. If an adjustment is made to reduce

positioning time, TCMD saturation may occur. Make

an adjustment so that the TCMD lies within a specified

maximum current.

<1> I-P function setting

Select I-P function for velocity loop control. In general, PI

function reduces start-up time for a command, but requires a

longer setting time, so that PI function is not suitable for

high-speed positioning. On the other hand, I-P function reduces

time required to reach a target position, so that I-P function is

generally used for high-speed positioning adjustment.

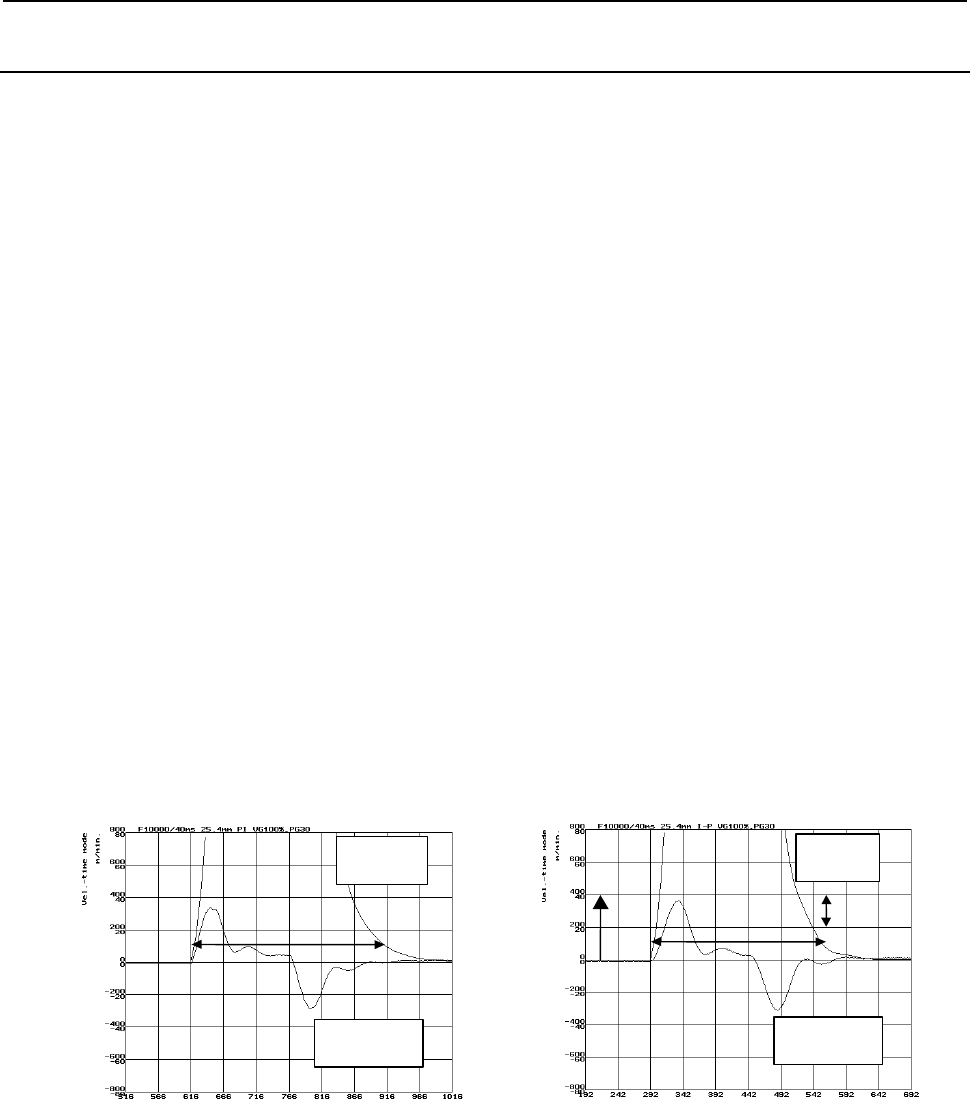

TCMD

ERR

20µm

270ms

Specified maximum current

300ms

TCMD

ERR

Fig. 3.3.2 (a) When PI function is used Fig. 3.3.2 (b) When I-P function is used
