B-65270EN/05 APPENDIX H.DETAILS OF HIGH-SPEED AND HIGH-PRECISION ADJUSTMENT

- 503 -

(6) Frequency characteristic measurement method

(a) Using SERVO GUIDE

To measure the frequency characteristic, follow this procedure.

NOTE

1 Basically, no CNC parameter setting is required.

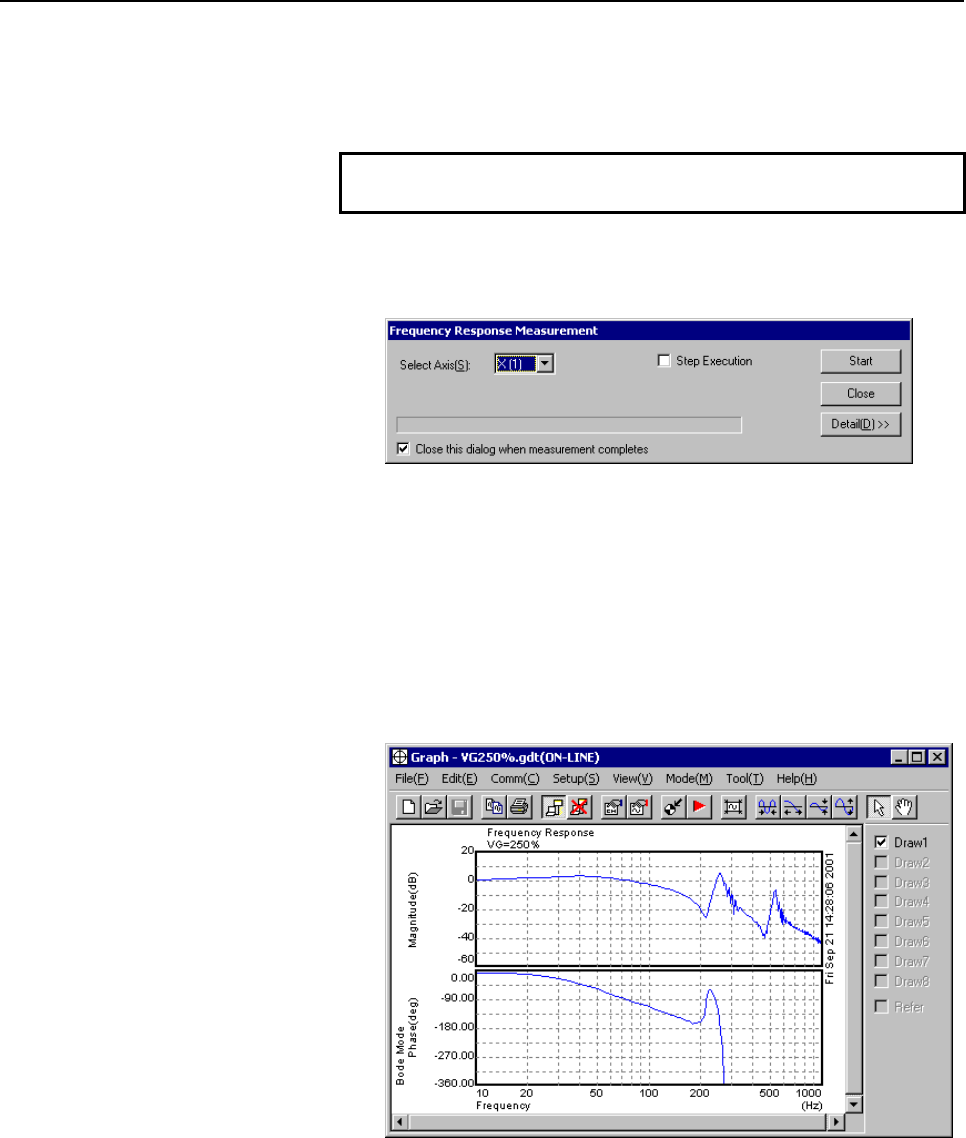

1 On the graph window menu, select [Tool(T)] → [Frequency

Response] → [Measure...] to display the "Frequency

measurement" dialog box.

2 Select an axis on which you want to measure frequency

characteristics, and click the [Start] button. The axis is

automatically vibrated, and frequency characteristics (board line

chart) are displayed.

3 Click the [Detail] button. It becomes possible to specify options.

Make option settings as required.

4 To re-draw, select [Draw Bode diagram] from [Frequency

Response] on the [Tool(T)] menu.
