B-65270EN/05 4.SERVO FUNCTION DETAILS

- 261 -

<6> For the vertical axis

, adjust the torque offset. (This is

unnecessary for the horizontal axis.)

For the vertical axis, the estimated disturbance value is not

centered at level 0. Torque offset adjustment is done to center the

estimated disturbance value at level 0.

1980 (FS15i)

Torque offset parameter

2087 (FS30i, 16i)

[Unit of data] TCMD unit (7282 with the maximum current value of the amplifier)

[Valid data range] -7282 to 7282

(Example of torque offset setting)

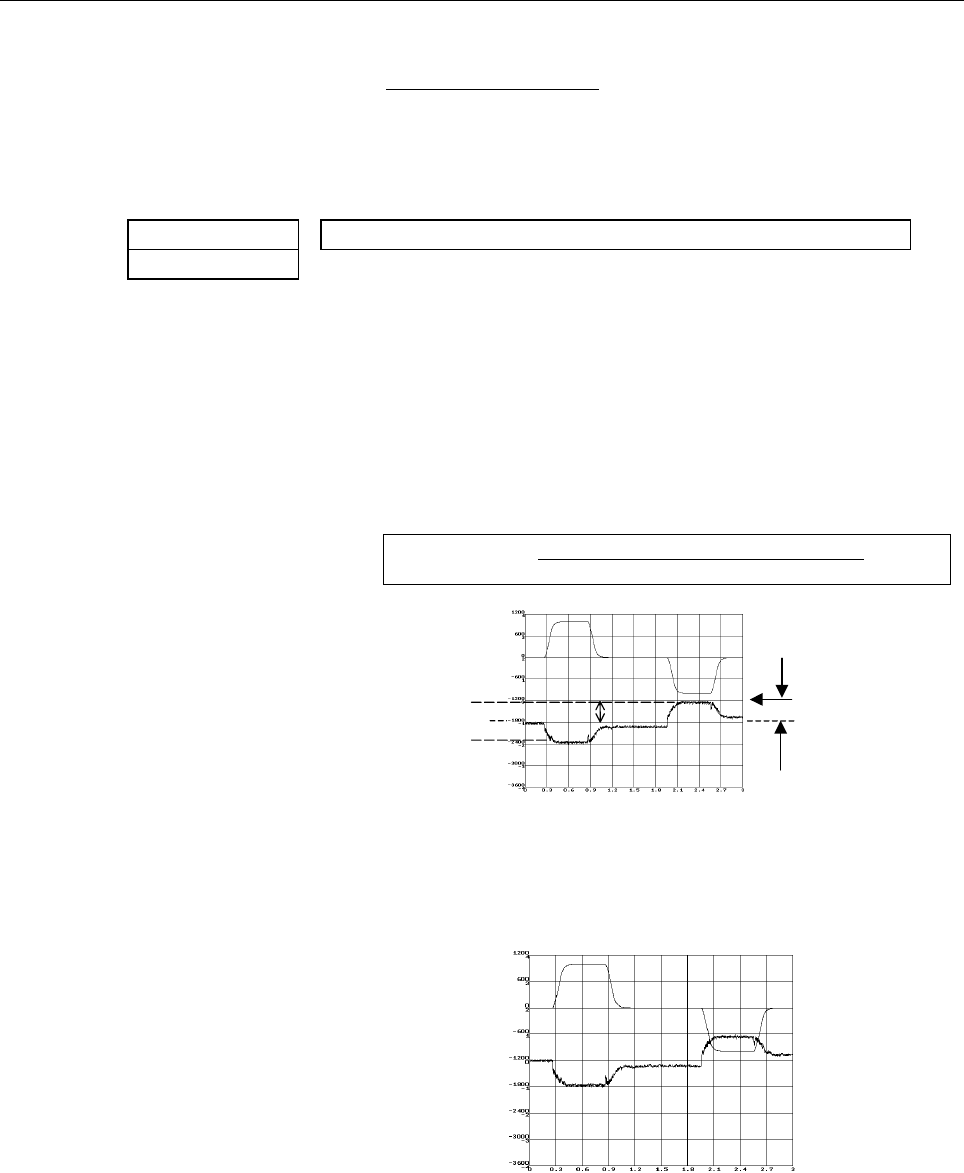

Estimated disturbance values for constant-velocity movements in

the + direction and - direction are read. In the figure below,

minimum value A (signed) is read in a movement in the +

direction, and maximum value B (signed) is read in a movement

in the - direction. A torque offset parameter setting is given using

the following expressions:

A [Ap] + B [Ap]

Torque offset =

Maximum amplifier current value [Ap]

× 3641

Estimated disturbance

value level 0

Estimated disturbance

value center line

Influence by gravity

Maximum value B

Minimum value A

If you read the minimum and maximum values as -1.9 [Ap] and -0.1

[Ap] in the above chart (the amplifier used is rated at 40 [Ap]

maximum), the torque offset parameter = -[(-1.9) + (-0.1)]/40 × 3641

= 182. The following chart applies when the parameter is set with 182.
