AC Servo Motor Alpha i/is, Beta is Series Parameter manual Page 349

Parameter manual

Page of 599

/ 599

B-65270EN/05 4.SERVO FUNCTION DETAILS

- 339 -

#7 #6 #5 #4 #3 #2 #1 #0

1960 (FS15i)

PFBCPY

2018 (FS30i, 16i)

PFBCPY (#7) 1: The motor feedback signal for the main axis is shared with the

sub-axis motor.

(Set this parameter for the sub-axis only.)

Main axis feedback

Sub-axis feedback

Linear motor Linear motor

Feedback cable

Magnet

Copy

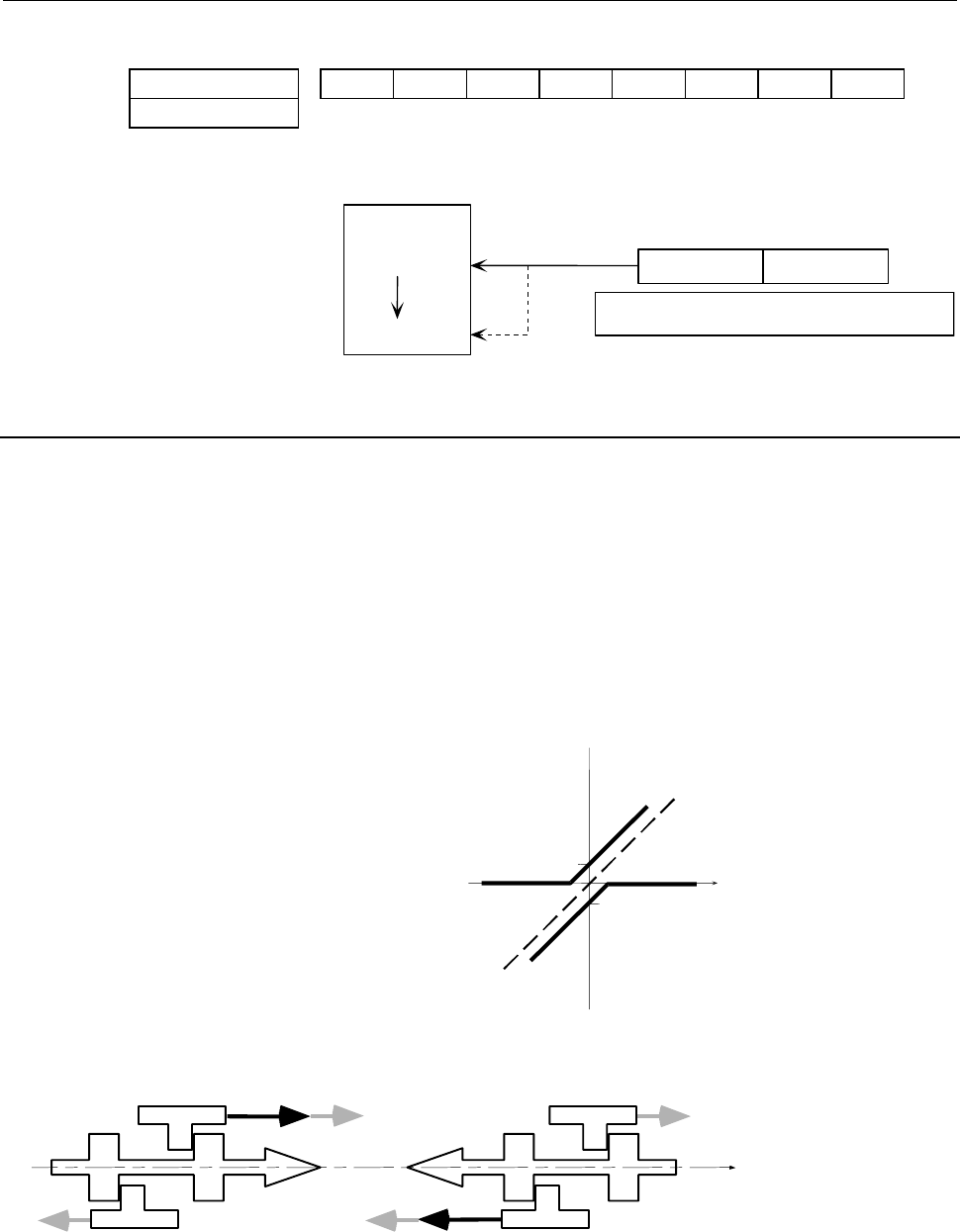

Fig. 4.18.5 Motor feedback sharing function

4.18.6 Full Preload Function

(1) Overview

In tandem control, special preload torques of opposite directions, as

shown in Fig. 4.18.6 (a), are applied to the main motor and sub-motor

to establish tension in the system.

With these special torques, the rack and pinions can be kept in tension

at all times, as shown in Fig. 4.18.6 (b). This function is referred to as

the full preload function.

However, this function is basically designed to use together with the

position feedback switch function.

Sub-motor

Output torque

Input torque

PL (main)

Main motor

PL (sub)

drive

Fig. 4.18.6 (a) Full preload function

Drive + PL

−PL

− (Drive + PL)

Rack (machine table)

Main side

Sub

Fig. 4.18.6 (b) Relationship between full preloads and backlash (conceptual)
