B-65270EN/05 4.SERVO FUNCTION DETAILS

- 257 -

4.12 UNEXPECTED DISTURBANCE TORQUE DETECTION

FUNCTION

Optional function

4.12.1 Unexpected Disturbance Torque Detection Function

(1) Overview

When a tool collides with the machine or workpiece, or when a tool is

faulty or damaged, a load torque greater than that experienced during

normal feed is imposed.

This function monitors the load torque to the motor at servo

high-speed sampling intervals. If it detects an abnormal torque, it

brings the axis to an emergency stop by issuing an alarm, or reverses

the motor by an appropriate amount.

In addition, the function enables the PMC to be used to switch the

speed at warning occurrence or load fluctuation.

Calculates

disturbance load

torque to the motor

PMC

window

Monitors disturbance

load torque

(at 1 ms intervals)

Processes motor stop

unexpected

disturbance torque

detection function

- An application on the PMC

uses a PMC ladder.

Collision

mplifier

Motor

Table

NC software

PMC ladder

Servo software

Set unexpected

disturbance torque

detection level.

Disturbance load

torque data

Monitoring is performed at 1 ms

intervals to reduce stop time.

ctual acceleration

TCMD

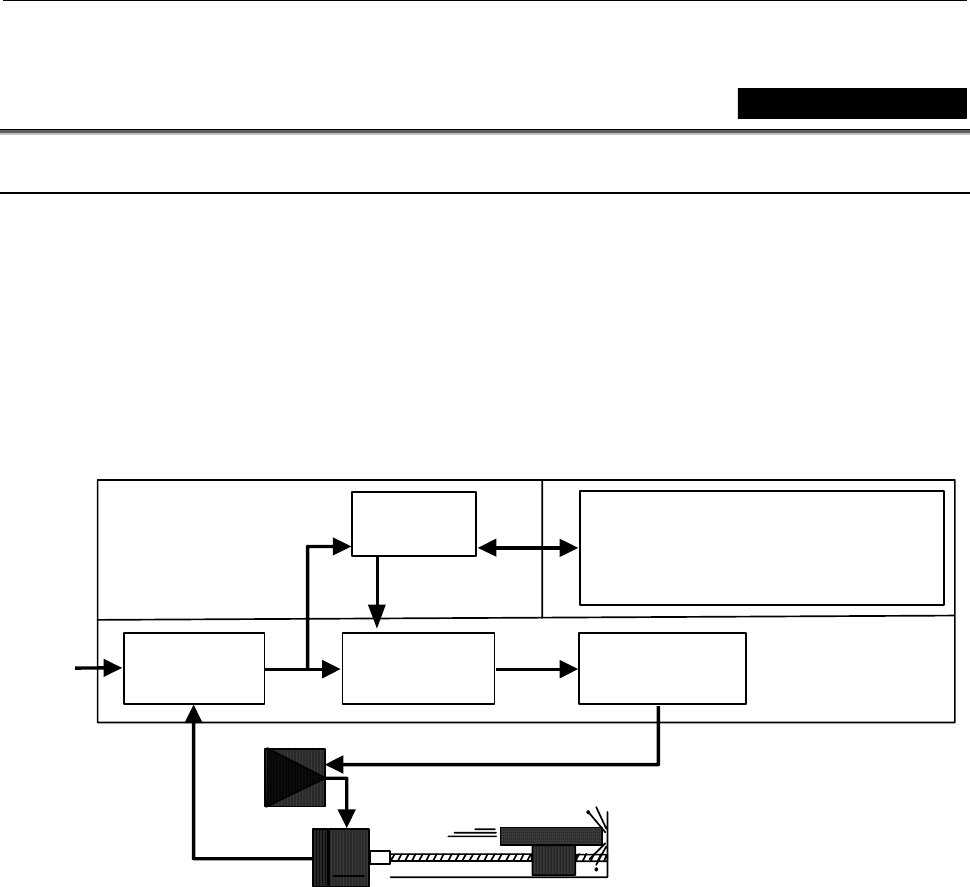

Fig. 4.12.1 Overview of unexpected disturbance torque detection

(2) Series and editions of applicable servo software

(Series 30i,31i,32i)

Series 90D0/A(01) and subsequent editions

Series 90E0/A(01) and subsequent editions

(Series 15i-B,16i-B,18i-B,21i-B,0i-B,0i Mate-B,Power Mate i)

Series 9096/A(01) and subsequent editions

Series 90B0/A(01) and subsequent editions

Series 90B1/A(01) and subsequent editions

Series 90B6/A(01) and subsequent editions

(Series 0i-C,0i Mate-C,20i-B)

Series 90B5/A(01) and subsequent editions
