4.SERVO FUNCTION DETAILS B-65270EN/05

- 316 -

(5) Adjustment method

• Check the torque commands for the main axis and sub-axis and

velocity feedback vibration by using a check board. (See Item

(6).)

• If the vibration phase is shifted by 180 degrees, the cause of

resonance is assumed to be inter-axis interference.

• Enable tandem disturbance elimination control, and adjust

integral gain Ki.

• Increase the value of integral gain Ki gradually from 0, and

observe vibration. Ki has an optimal value. When the value of Ki

is increased excessively, vibration becomes stronger.

• When the velocity loop gain is changed, the frequency of

vibration changes. So, adjust Ki to minimize vibration.

• If the frequency of vibration exceeds 100 Hz, the effect of

tandem disturbance elimination control decreases. In such a case,

set phase compensation coefficients α and 2T/t or increase the

current loop gain with the current 1/2 PI control function.

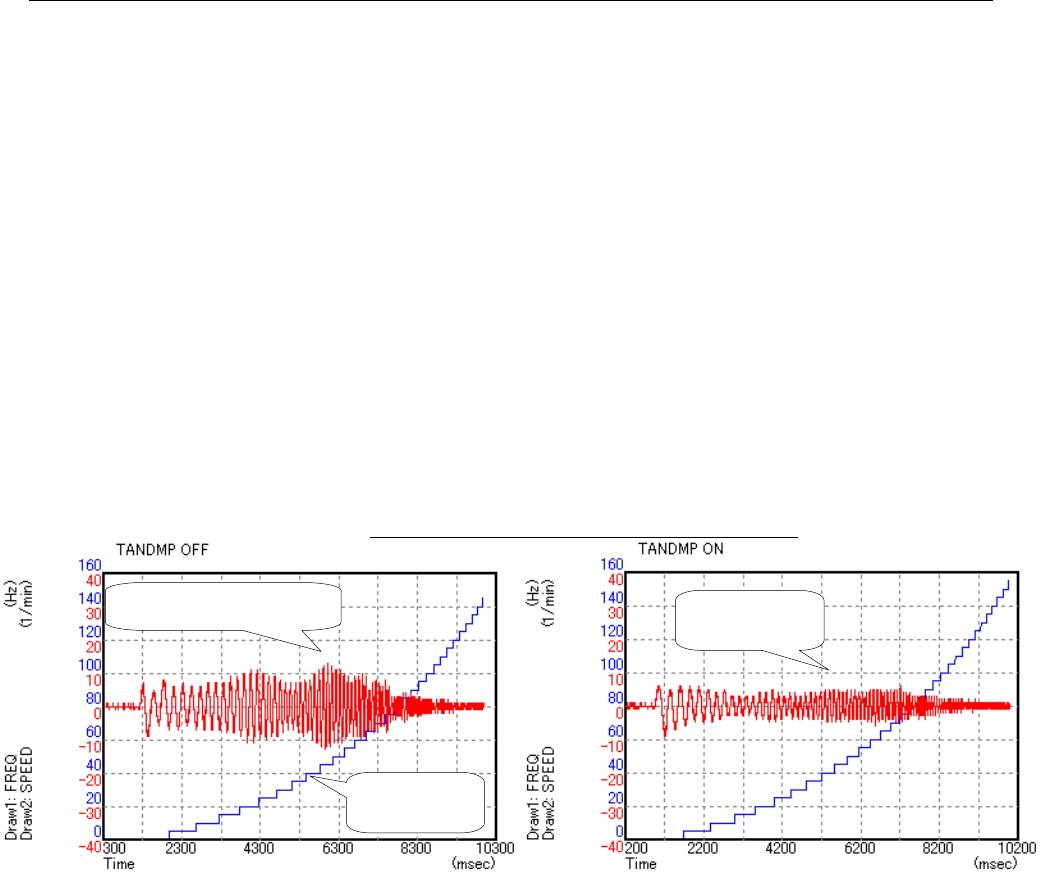

Effect of tandem disturbance elimination control

* Velocity feedback and vibration frequency when the sub-axis is

vibrated

(6) Method of checking the frequency of vibration

In this adjustment, use the disturbance input function for the sub-axis,

measure the velocity feedback for the main axis, check for

interference between the axes, and check and adjust the effect of

tandem disturbance elimination control.

The following explains how to use the disturbance input function and

how to make settings for data measurement.

Main axis velocity

feedback resonance 50 Hz

Sub-axis

vibration

Interference is

improved.
