B-65270EN/05 4.SERVO FUNCTION DETAILS

- 351 -

4.18.9 Cautions for Controlling One Axis with Two Motors

(1) Tandem control and synchronous control (position tandem control)

selection criteria

Two control methods are supported to enable the control of one axis

using two motors: tandem control and synchronous control. The

(simple) synchronous control method controls the position of the

master axis and slave axis by using the same command. Position

control is exercised separately on each of the master axis and slave

axis. Control exercised when the master axis and slave axis are

allocated on the same DSP is particularly referred to as position

tandem control.

The tandem control method exercises position control over the main

axis only; this method exercises torque control over the sub-axis only.

(For clarity, the terms master and slave are used for synchronous

control, while main and sub are used for tandem control.)

When building a machine system, select a suitable control method,

paying careful attention to the differences between the control

methods. Tandem control is used in the following cases and when

back-feed is enabled:

• Two motors are used because sufficient torque cannot be

produced by one motor alone.

• Two small motors have an advantage over one large motor in

terms of inertia.

• The full preload function is used to suppress backlash.

In other cases, position tandem control (synchronous control) is

usually used.

Position tandem control is also used when two motors are used to

improve the precision degraded by a machine position difference.

Sub-

motor

Reducer

Main

motor

Reducer

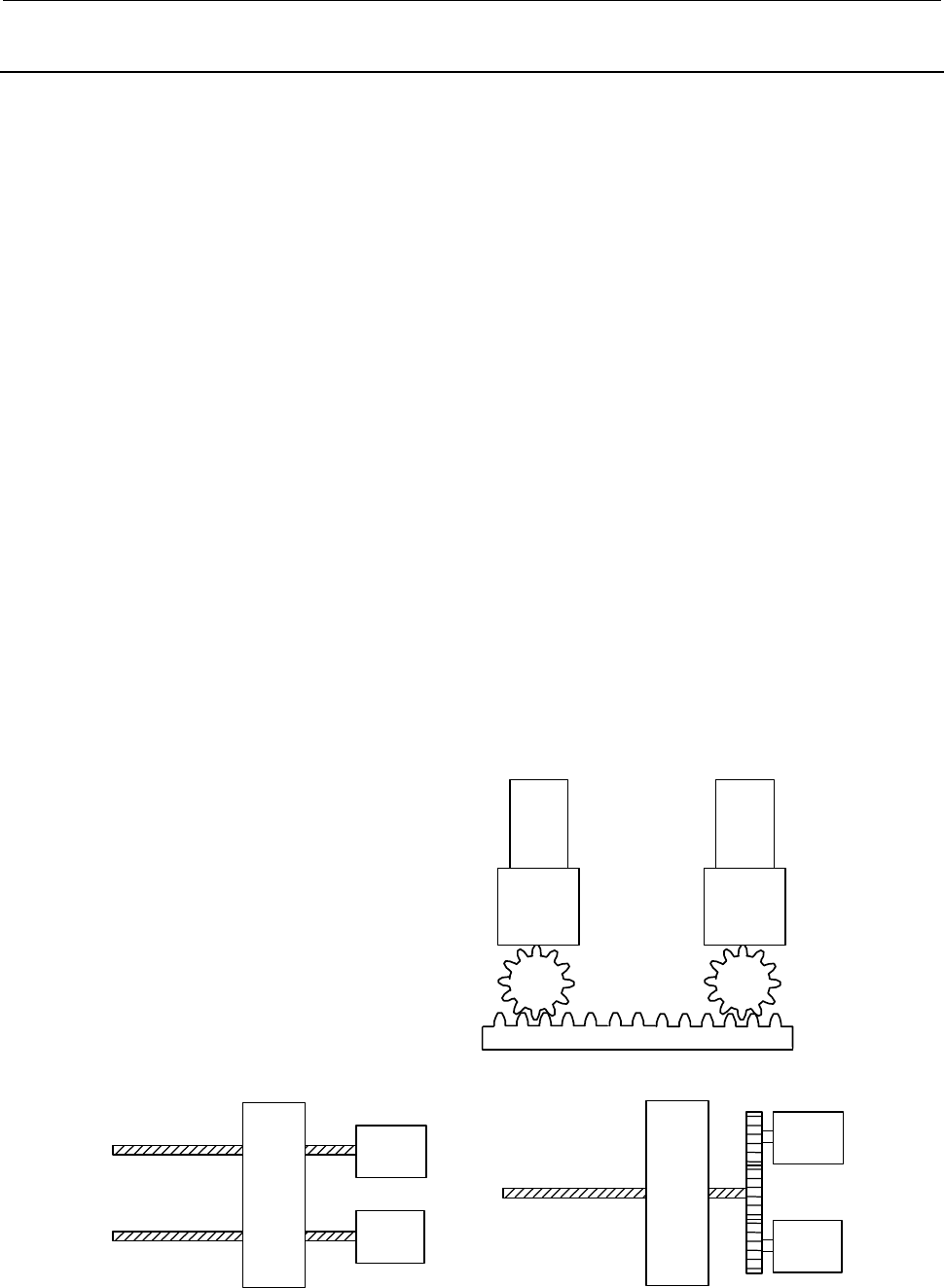

Fig. 4.18.9 (a) Example of tandem control (machine system supporting back-feed)

Sub-

motor

Main

motor

Sub-

motor

Main

motor

Fig. 4.18.9 (b) Example of synchronous control Fig. 4.18.9 (c) Example of tandem control

(to suppress the effect of a position difference) (when a torque two times greater is required)
