4.SERVO FUNCTION DETAILS B-65270EN/05

- 318 -

CAUTION

1 Disable the functions that operate only in the stop

state, such as the variable proportional gain

function in the stop state and the overshoot

compensation function.

2 When characteristics at the time of cutting are

measured, cutting/rapid switching functions should

be treated carefully.

3 Decrease the position gain to about 1000.

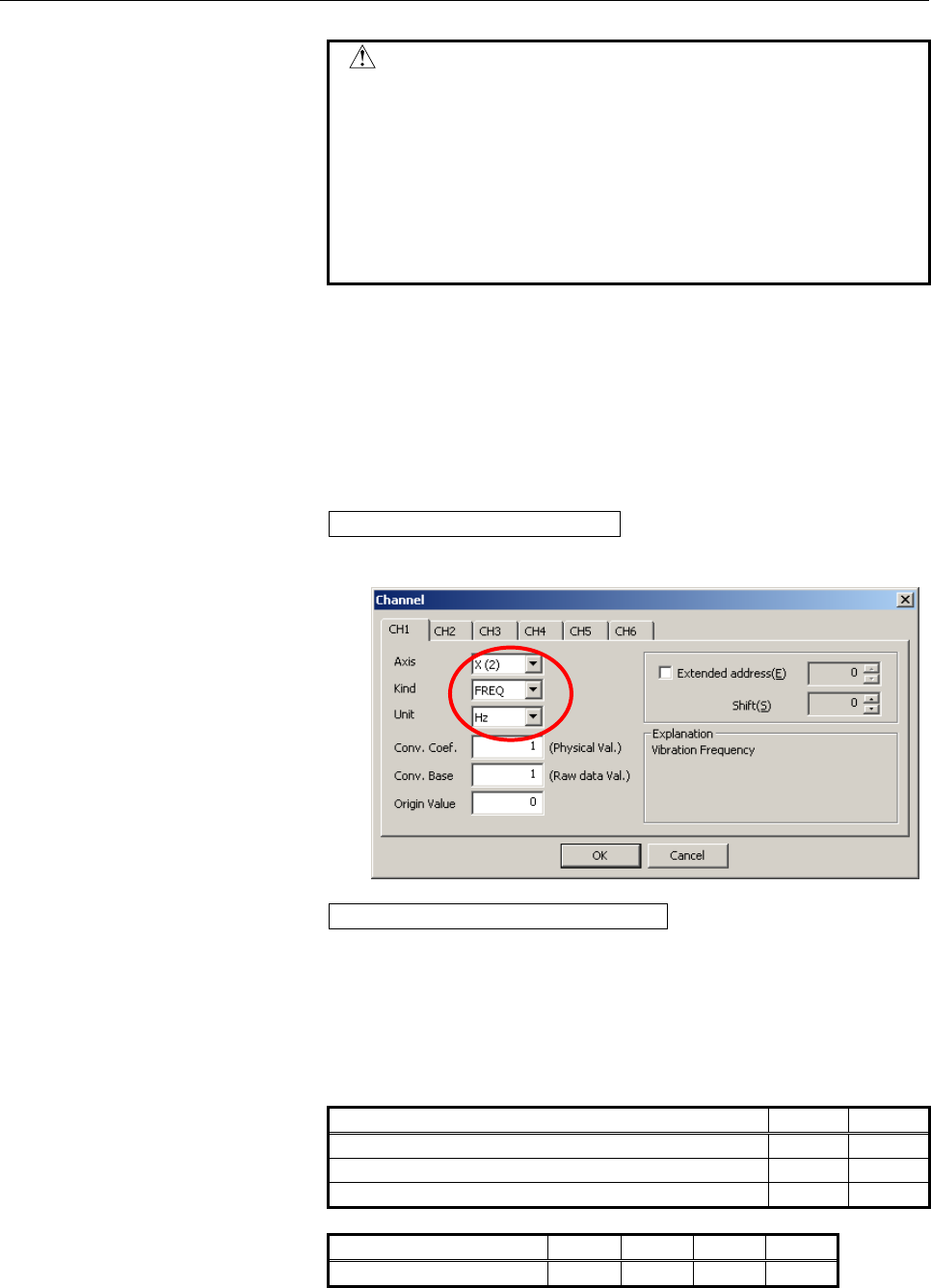

(b) Channel setting with SERVO GUIDE

With SERVO GUIDE, make settings for data acquisition. Two types

of data including disturbance frequency data (the main axis) and

velocity feedback data (the sub-axis) are acquired at the same time.

From the graph window menu of SERVO GUIDE, select [Setting]

then [Channel].

Channel 1: Disturbance frequency

• Specify the sub-axis as the axis, and set the data type to "FREQ".

(The other items are automatically set when FREQ is selected.)

Channel 2: Main axis velocity feedback

• Specify the main axis as the axis, and set the data type to

"SPEED".

• Set the conversion coefficient to 1, and set the conversion base

data to 1.

• Check the check box of the extended address, and set an address

as listed in the table below. (The setting varies depending on the

value set in parameter No. 1023.) Set the shift amount to 0.

No.1023 Odd Even

Series 90D0 596 724

Series 90B0, Series 90B1, Series 90B5, Series 90B6 340 468

Series 90B3, Series 90B7 2048 2176

No.1023 (n:0,1,2,..) 4n+1 4n+2 4n+3 4n+4

Series 90E0 596 724 6740 6868
