B-65270EN/05 4.SERVO FUNCTION DETAILS

- 359 -

Note 2 It has yet to be verified whether SERVO GUIDE operates on

Windows 95.

Note 3 To use this software on Windows NT 4.0, install Service Pack

3 or later. Service Pack is available from Microsoft.

Note 4 On Windows 98/Me, opening multiple parameter and graph

windows at a time may result in insufficient resources. We

recommend Windows NT/2000/XP be used.

Note 5 Online help cannot be displayed unless Internet Explorer 4.01

or later is available.

Note 6 In addition to the program area, a storage area is necessary to

hold measured data.

Note 7 SERVO GUIDE can operate also on SVGA. If multiple

windows are open on SVGA, however, they overlap on one

another, impairing legibility.

Note 8 If you are using a Windows CE-based "is Series" CNC (160is,

180is, 210is), you do not need this card, because no LAN card

can be used to connect between the PC and CNC. (Use a

built-in Ethernet port for connection.)

With the is Series of the Series 30i (the 300is, 310is, and

320is), connection using a LAN card is also possible.

To use this software on Power Mate i, an Ethernet board must

be installed on the NC. In this case, the PCMCIA-LAN card is

not required. Get ready the following:

- Fast Ethernet board (A02B-0259-J293)

- Fast Ethernet option (A02B-0259-J862)

- Ethernet software (A02B-0259-J555#6567)

- Extended basic 1 function option (A02B-0259-J878)

- Extended driver/library (A02B-0259-J847)

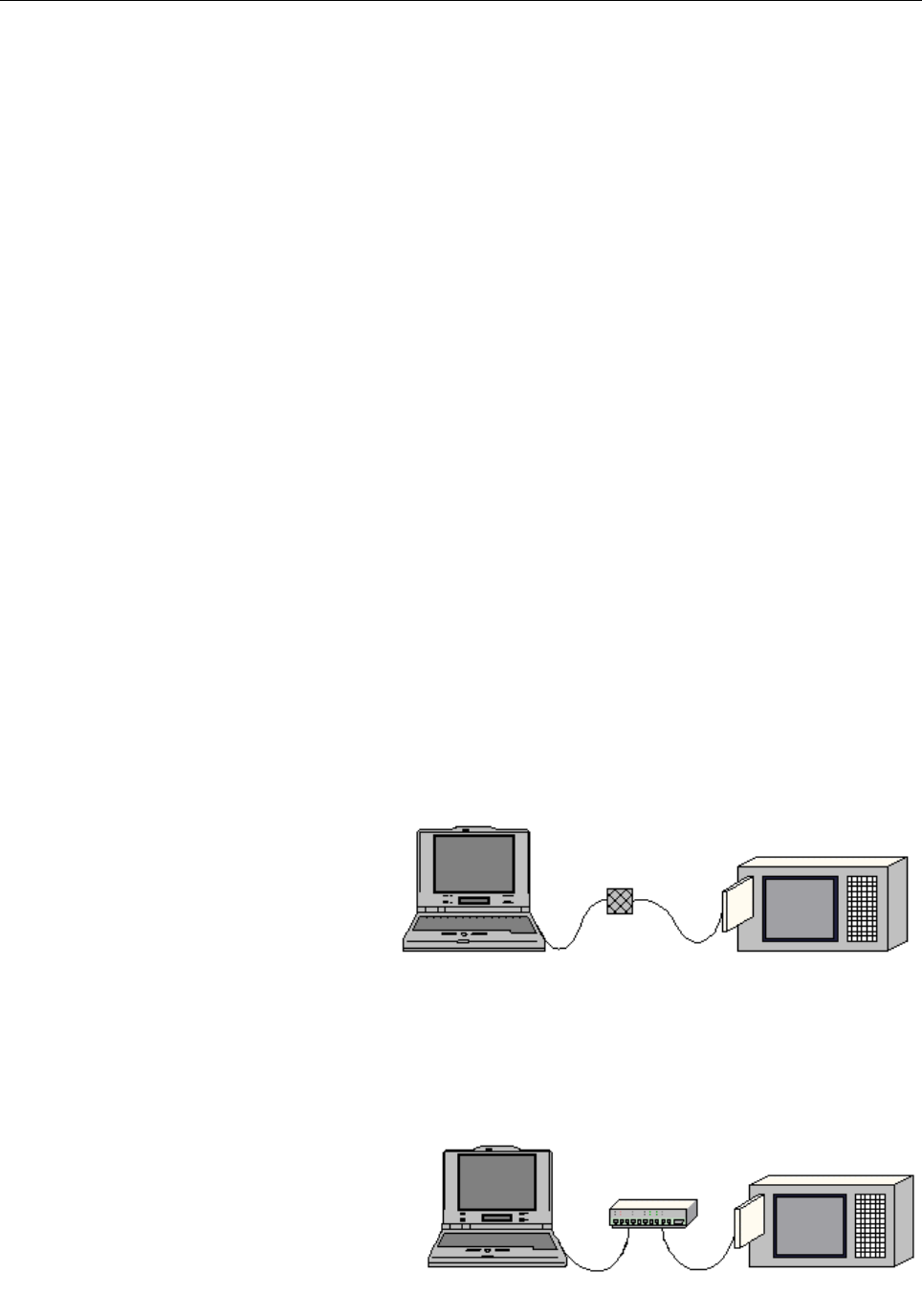

Note 9 A FANUC-supplied LAN card is provided with a straight

cable with an RJ45 male connector attached. The following

figure shows how the cable is used to connect directly

between the PC and CNC.

Straight cableCross cable

Coupler

(The cross cable and coupler are available from general PC

stores.)

The following figure shows how a hub is used to connect

between the PC and CNC. No coupler is needed. However,

you need to prepare a straight cable.

Straight cableCross cable

hub
