B-65270EN/05 4.SERVO FUNCTION DETAILS

- 249 -

NOTE

1 If the brake is in use, it starts working while the

vertical axis is being lifted. So the distance through

which the axis is actually lifted differs from the setting.

2 Whether the parameter values is positive or negative

matches whether the machine coordinate value is

positive or negative.

3 Using this function causes the load to stop after

moving it to one side of the machine. So, it should be

used for the vertical axis (Z-axis) of a vertical

machining center in which an axis retracts in a fixed

single direction at an emergency stop.

2787 (FS15i)

Lifting time

2374 (FS30i, 16i)

This parameter determines the lifting time as measured from the time

of an emergency stop. The distortion easing function is executed after

the lifting time has elapsed. This function is intended to decrease the

amount of machine elastic strain that can increase when a vertical axis

is lifted when the machine is about to apply the brake. Executing this

function can reduce the shock that may occur when the axis drops

because the servo amplifier stops energizing. The initial value of the

function is a quarter of the distance to lift.

(See the following figure.)

[Unit of data] ms

[Valid data range] 8 to 32767

[Recommended value] Approximately 16 or 24 ms

NOTE

1 Specify an integer multiple of 8 as the lifting time

2 To use the lifting function against gravity at

emergency stop, specify 8 ms or longer as the

lifting time.

3 If the distortion easing function is not used, specify

the time longer than or equal to the one set in the

brake control timer as the lifting time.

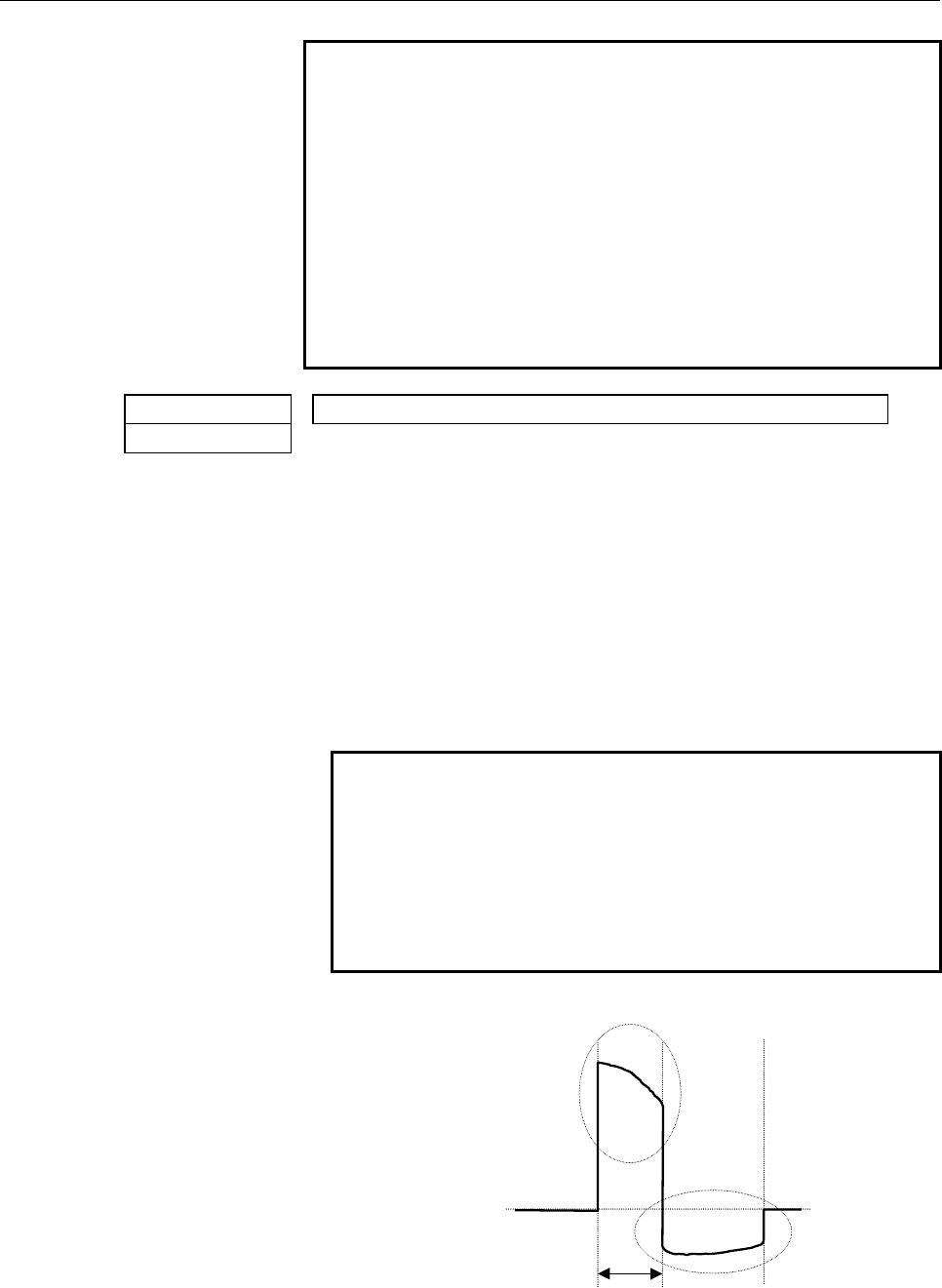

• Velocity command

ertical axis lifting

Distortion

easing

function

Lifting time

Fig. 4.11.3 (a) Velocity command
