4.SERVO FUNCTION DETAILS B-65270EN/05

- 334 -

4.18.2 Damping Compensation Function

To enable more stable tandem control, a torque offset can be applied

to the sub-axis, or to both the main- and sub-axes to eliminate a

difference in speed, if any, between the main- and sub-axes.

This function is particularly useful for controlling the vibration (with a

frequency of several Hz to 30 or 40 Hz) that may occur in a machine

system with low spring rigidity.

−

Damping compensation

Phase

compensation

Velocity feedback

Current

control

Main

motor

Detector

Preload (main)

Backlash

Spring

Preload (sub)

Current

control

Detector

Spring

Torque

command

Sub-

motor

Backlash

Table

Velocity feedback

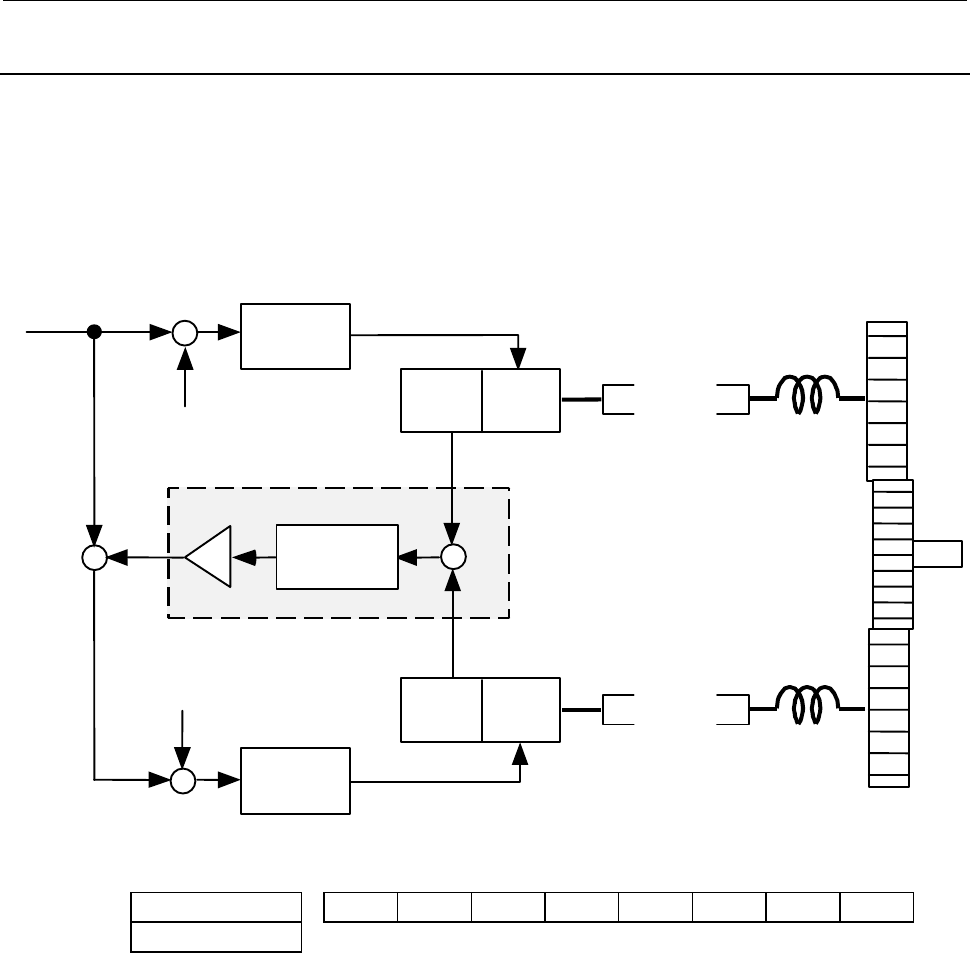

Fig. 4.18.2 (a) Damping compensation function

#7 #6 #5 #4 #3 #2 #1 #0

1952 (FS15i)

LAXDMP

2008 (FS30i, 16i)

LAXDMP (#7) 1: Enables the damping compensation function for the main- and

sub-axes.

When LAXDMP (#7) = 0, the damping compensation function is

enabled for the sub-axis only.

Usually, set this bit to 1. (Set this parameter for the main axis

only.)
