B-65270EN/05 4.SERVO FUNCTION DETAILS

- 325 -

4.18 TORQUE TANDEM CONTROL FUNCTION

Optional function

(1) Overview

If a single motor is not capable of producing sufficient torque to drive

a large table, for example, tandem control allows two motors to

produce movement along one axis.

A motor of the same specification is used for both the main motor and

sub-motor.

Only the main motor is responsible for positioning. The sub-motor

only produces a torque. In this way, double the torque can be obtained

(load sharing mode).

By applying a preload torque to produce tension between the main

motor and sub-motor, the backlash between gears can be reduced

(anti-backlash mode).

Tandem control is used to run linked linear motors and motors with a

winding tandem (α

iS300/2000, αiS500/2000, αiS1000/2000HV).

(2) Applicable servo software series and editions

(Series 30i,31i,32i)

Series 90D0/A(01) and subsequent editions

Series 90E0/A(01) and subsequent editions

(Series 15i-B,16i-B,18i-B,21i-B,0i-B,Power Mate i)

Series 9096/A(01) and subsequent editions

Series 90B0/A(01) and subsequent editions

Series 90B1/A(01) and subsequent editions

Series 90B6/A(01) and subsequent editions

(Series 0i-C)

Series 90B5/A(01) and subsequent editions

NOTE

This function cannot be used with servo HRV4

control.

Main

motor

Reducer

Pinion

Reducer

Sub-

motor

Rack

Pinion

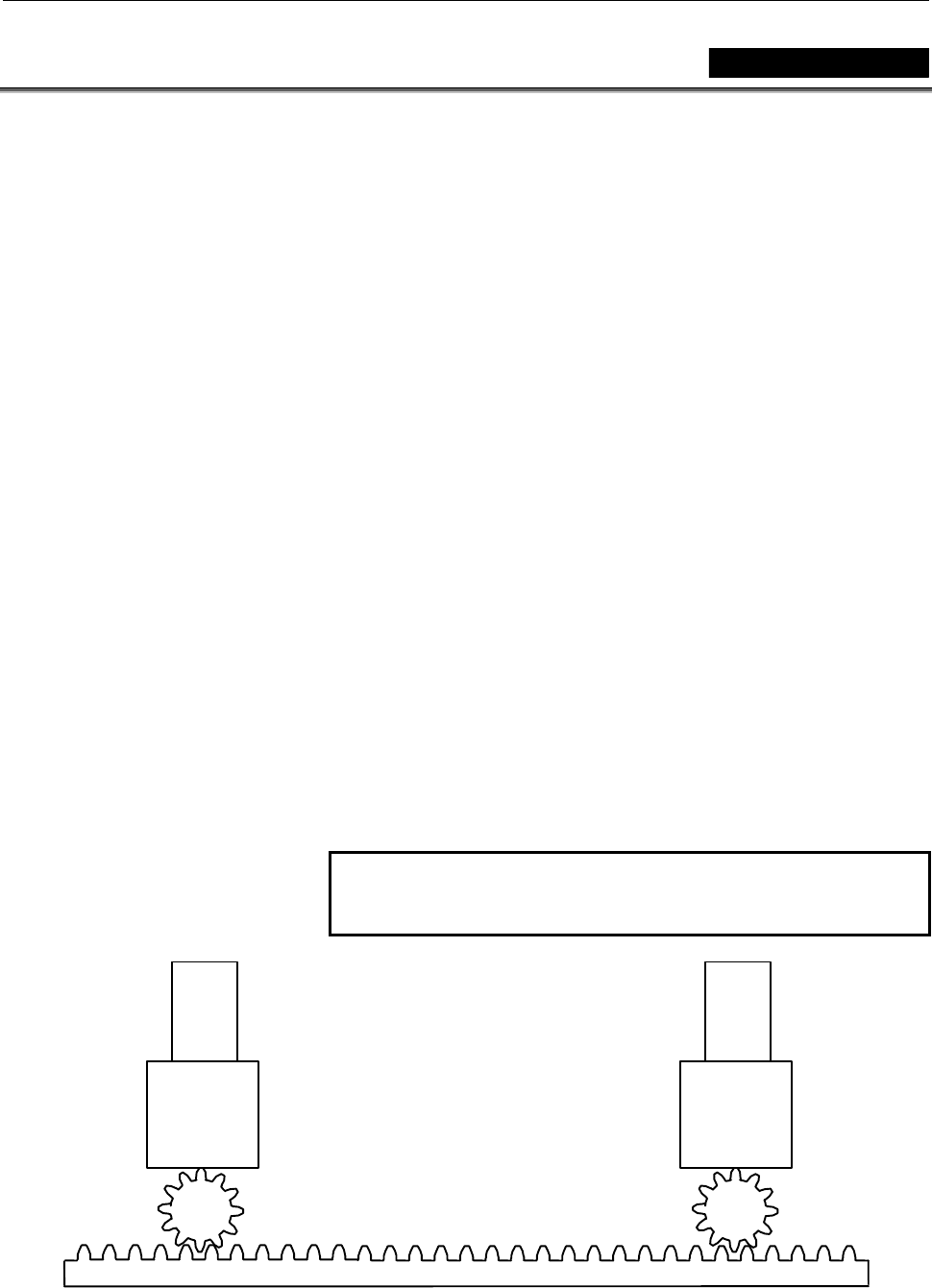

Fig. 4.18 (a) Example of tandem control application (1)
