B-65270EN/05 4.SERVO FUNCTION DETAILS

- 303 -

<6> The compensation parameters slightly vary depending on the

measurement situation. So, repeat a data measurement and a

press of the [Add] button several times in a similar manner while

keeping the dialog box open. (Up to five candidates can be

registered.)

If the displayed values include an extremely different value,

uncheck the corresponding check box on the leftmost side of the

list so that the value is not taken into account in the final

compensation calculation.

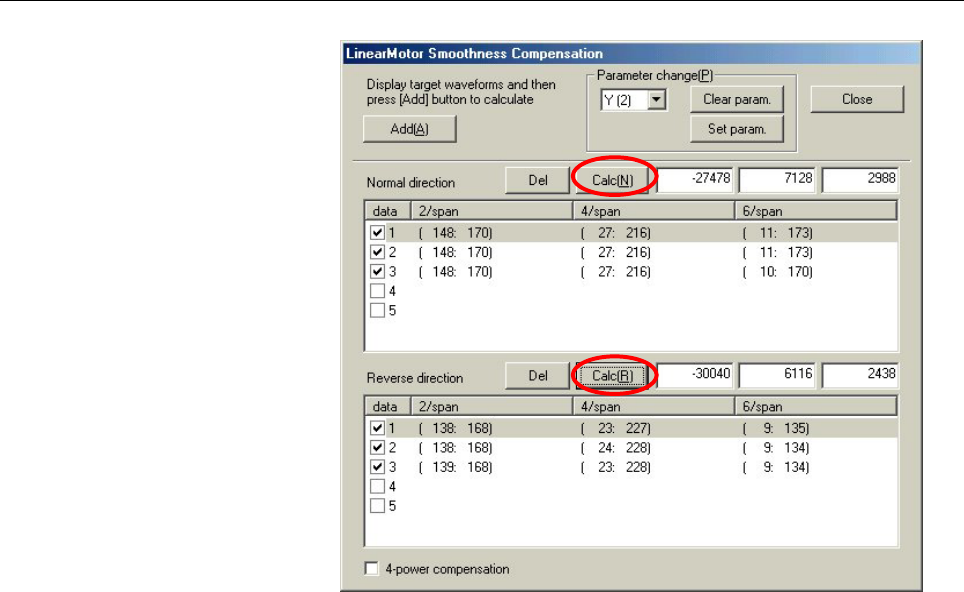

<7> Finally, press the [Calculate] button for each of the forward and

backward directions. Then, smoothing compensation parameters

are displayed.

<8> When the target axis for parameter transfer is selected in

"Parameter change", and the [Send] button is pressed, the

presented parameters are set in the CNC.

<9> Measure TCMD again to confirm the effect of smoothing

compensation.
