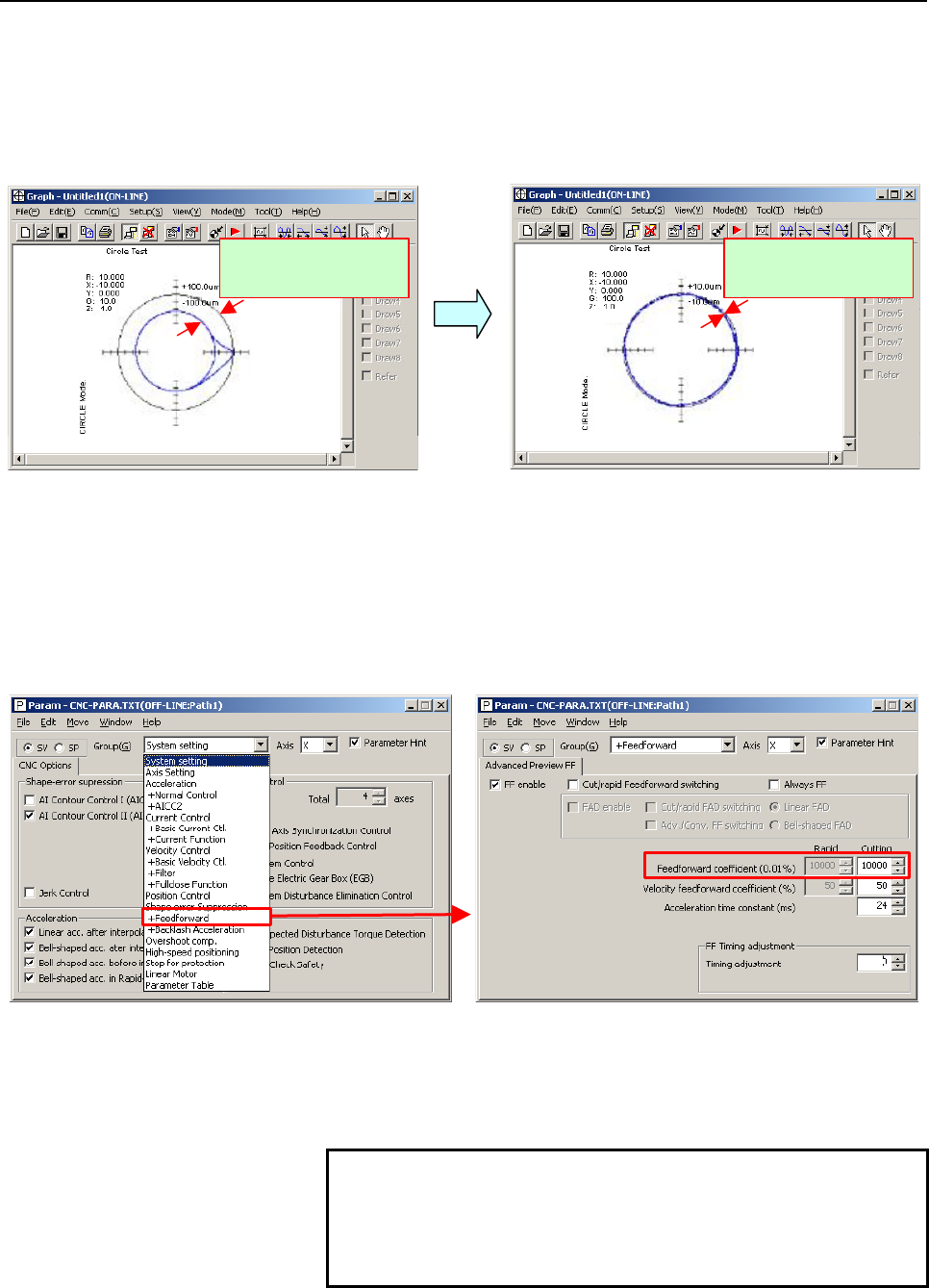

The following figure shows the effect of the feed-forward function.

The figure indicates that an arc radius error of 250 µm, which was

measured before the use of the feed-forward function, has been

reduced to almost 0 after the use of the feed-forward function.

Feed-forward coefficient 0% Feed-forward coefficient 100%

Radius error is about

250 µm

Radius error is

almost 0 µm

(b) Adjusting the feed-forward coefficient

The feed-forward coefficient can be adjusted on the screen shown

below. Note that, however, setting the feed-forward coefficient to

more than 10000 (100%) means that the actual machine position

advances ahead of commands from the CNC. So, such setting is not

permitted.

[Parameter window main screen] [Contour error suppression + feed-forward]

While checking fluctuation of radius by using an arc with about

R10/F4000 or R100/F10000 set, make an adjustment so that the actual

path matches the commanded path. At this time set the velocity

feed-forward coefficient to about 100.

NOTE

To fine-tune the amount of arc radius, also adjust

the feed-forward timing parameter after adjusting

the feed-forward coefficient. (See Subsection

4.6.5.)
