4.SERVO FUNCTION DETAILS B-65270EN/05

- 304 -

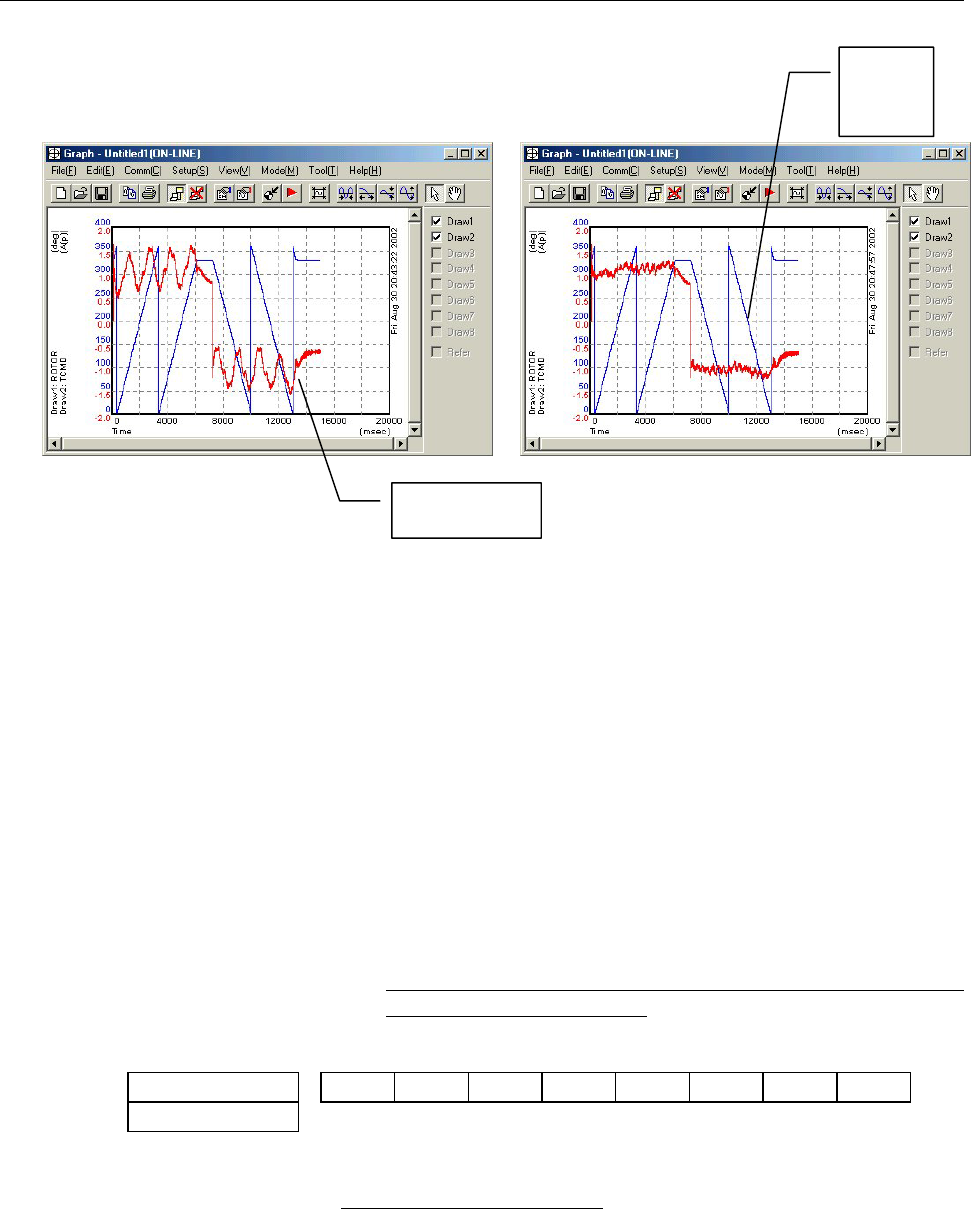

(Adjustment example)

Before smoothing compensation adjustment After smoothing compensation adjustment

(*) For details on the use of SERVO GUIDE, refer to the online help

of SERVO GUIDE.

If using SD (servo tuning software)

Follow the procedure described below to measure the activating phase

angle and torque command necessary to determine the correction

parameters.

The following procedure use terms "odd-numbered axis" and

"even-numbered axis" in relation to axis numbers specified in

parameter No. 1023 (common to the Series 15i and Series 16i and so

on).

<1> Series 90B0: Does not require step <1>. Go to step <2>.

Series 9096: To measure an odd-numbered axis, set a dummy bit

to 1 for the even-numbered axis paired with it.

If a linear motor is used in tandem control, however, do not set a

dummy bit for the paired axis.

#7 #6 #5 #4 #3 #2 #1 #0

- SERD

2009 (FS16i)

SERD (#0) Specifies whether to enable the dummy serial feedback function.

0: To disable

1: To enable ← To be set

* Do not forget to restore the previous setting after parameter

setting is completed.

Torque command

(TCMD)

ctivating

phase

(ROTOR)
