AC Servo Motor Alpha i/is, Beta is Series Parameter manual Page 212

Parameter manual

Page of 599

/ 599

4.SERVO FUNCTION DETAILS B-65270EN/05

- 202 -

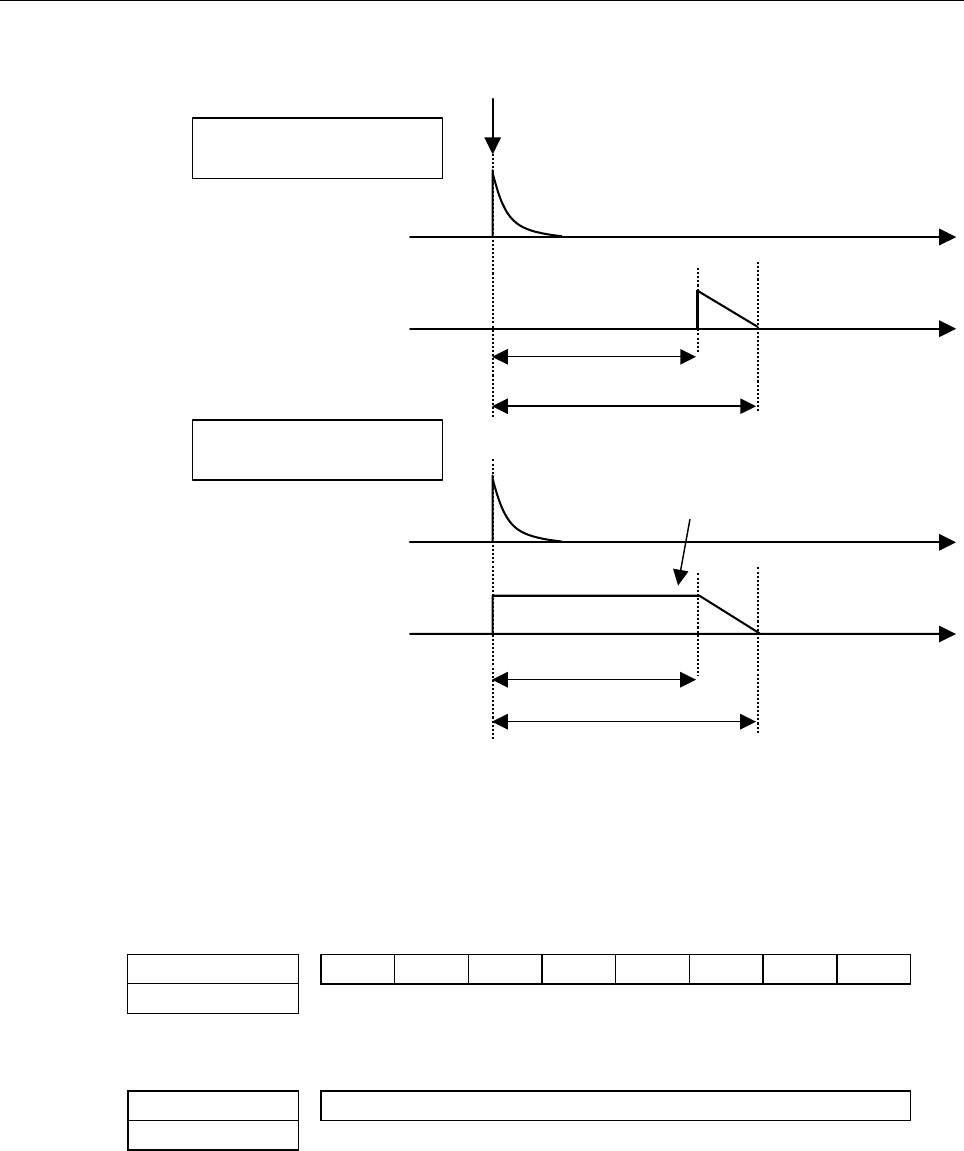

- Comparison with the conventional second stage acceleration

First stage acceleration

Start of reverse operation

Second stage acceleration

Second stage start position (set in the detection unit)

Second stage end position (set with a scale factor of start

distance

)

First stage acceleration

The initial value is output until the second stage

attenuation start position is reached, and attenuation is

performed in the area between the attenuation start

position and end position.

Second stage acceleration

Second stage attenuation start position (set in the

detection unit

)

Second stage end position (set in the detection unit)

Conventional second stage

acceleration

Second stage acceleration

(type 2)

Normally, second stage acceleration is not output until the second

stage start distance is reached. The 2-stage backlash acceleration type

2 starts outputting the acceleration amount immediately after the

reverse operation, and starts attenuation after the start distance.

- Setting parameters

#7 #6 #5 #4 #3 #2 #1 #0

2684(FS15i)

2NDTMG

2271(FS30i,16i)

2NDTMG(#5) 0: Does not use the 2-stage acceleration type 2.

1: Uses the 2-stage acceleration type 2.

1975(FS15i)

Second stage attenuation start position

2082(FS30i,16i)

[Valid data range] 0 to 32767

[Unit od data] Detection unit

[Typical setting] 0 to 10 µm
