3. αiS/αiF/βiS SERIES PARAMETER ADJUSTMENT B-65270EN/05

- 86 -

(b) Adjusting the time constant in cutting feed

In automatic corner deceleration, the feedrate at which the tool moves

along a corner is reduced according to the permissible acceleration set

for acc./dec. before interpolation. When the automatic corner

deceleration function is used, the tangential feedrate at the corner

changes in a V-shaped manner as shown below. As the permissible

acceleration for acc./dec. before interpolation is decreased,

deceleration at the corner becomes smoother, therefore, the contour

error at the corner can be decreased.

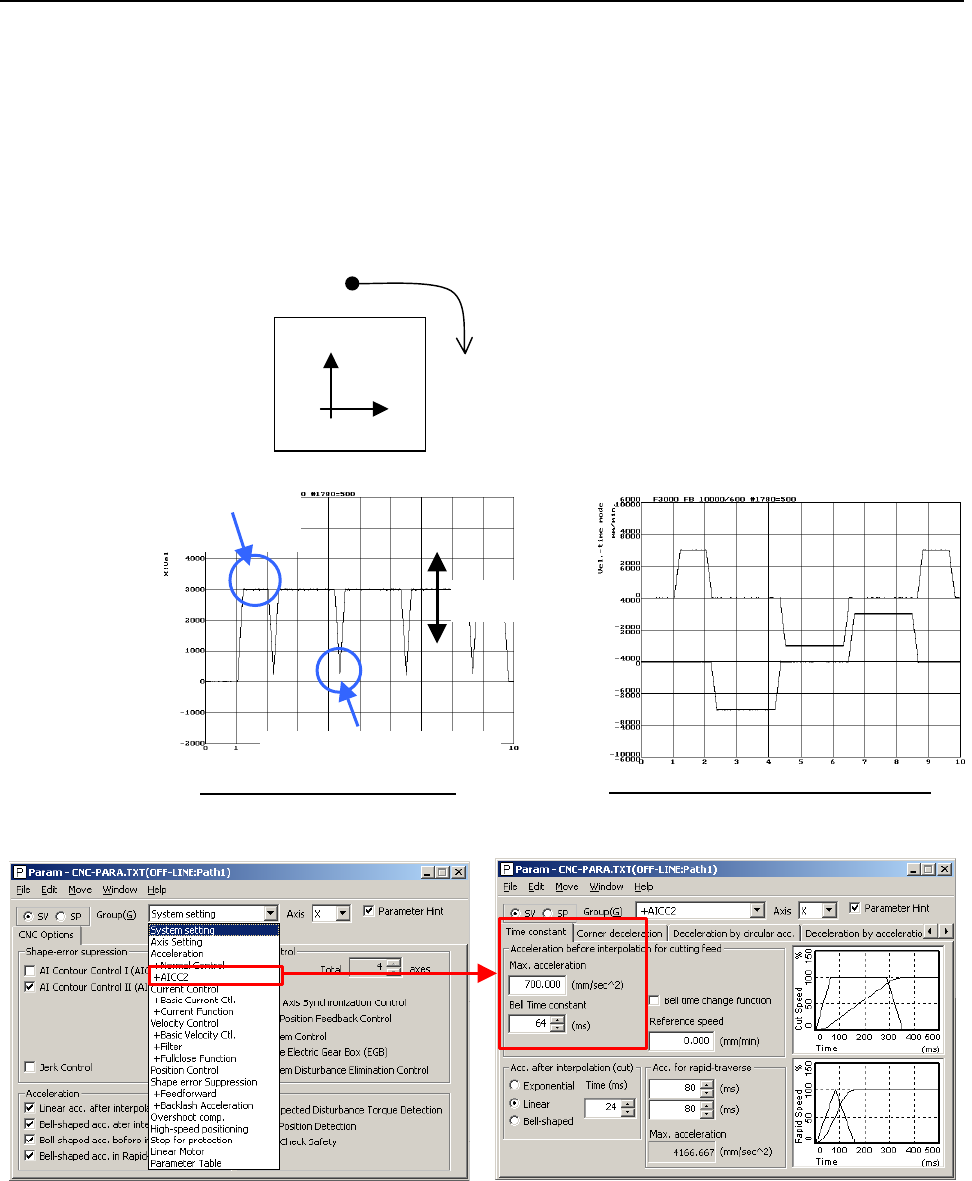

[Parameter window main screen] [Acc./dec. + AI contour control 2 (when AI

contour control II is used)]

If the contour error at the corner cannot be reduced even by adjusting

the permissible feedrate difference, increase the time constant of

acc./dec. before interpolation.

When bell-shaped Acc/Dec. before interpolation is used, contour

errors not only at corners but also rounded corners may be improved.

Note that, however, a larger time constant extends the total machining

time.

Position path

Tangential feedrate indication

Indication of feedrate along each axis

Feedrate alon

X-axis

Feedrate alon

Y-axis

F3000

Linear part

F3000

Corner: F500
