B-65270EN/05 APPENDIX H.DETAILS OF HIGH-SPEED AND HIGH-PRECISION ADJUSTMENT

- 497 -

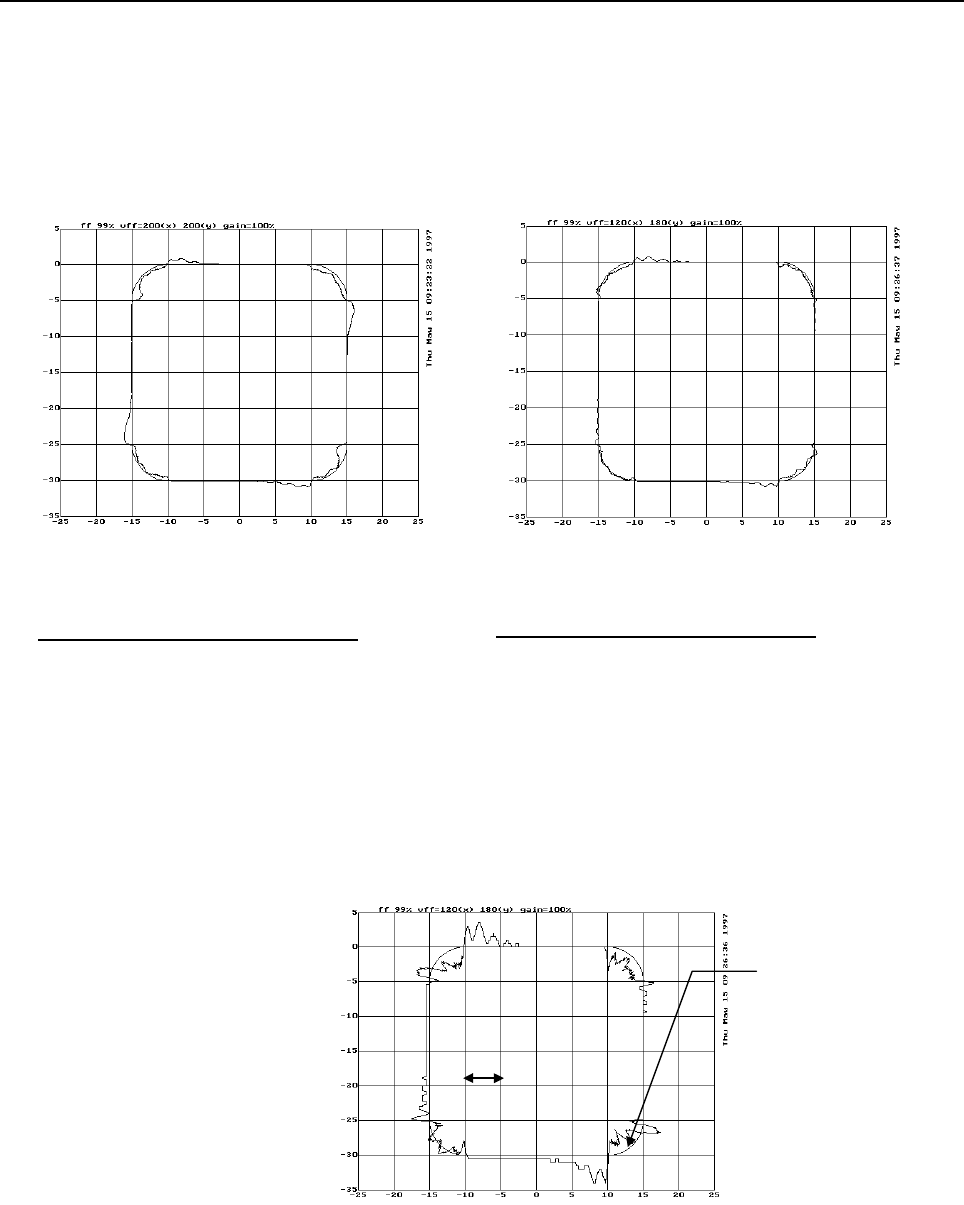

In Fig. H (i), excessively large velocity feed-forward coefficients are

specified, so that the protrusions shown in Fig. H (g) have changed to

cuts, and the cuts have changed to protrusions. This means that

optimum velocity feed-forward coefficients exist and they are less

than the values of Fig. H (i). Fig. H (j) shows the result of adjustment

to the optimum values. Fig. H (k) enlarges the errors only for display.

Fig. H (i)

elocity feed-forward adjustment

Velocity loop gain: 100%

Advanced preview feed-forward coefficient: 99%

FAD time constant: 24 ms (linear type)

Velocity feed-forward: X200%, Y200%

Fig. H (j)

elocity feed-forward adjustment

Velocity loop gain: 100%

Advanced preview feed-forward coefficient: 99%

FAD time constant: 24 ms (linear type)

Velocity feed-forward: X120%, Y180%

When the enlarged range is viewed, it is seen that the machine is

vibrating in the arc areas. This vibration is caused by a low velocity

loop gain. To reduce this vibration, two methods are available. One

method increases the velocity loop gain. (This method cannot be used

when the velocity loop gain has already been increased to the

oscillation limit.) The other method decreases the feedrate in the arc

areas with the arc radius based feedrate clamp function as described in

Item H (4).

The figure display is 5 mm wide.

The error is 10

m in size.

Machine vibration

caused by insufficient

velocity control

response is observed.

Fig. H (k) Velocity feed-forward adjustment
