4.SERVO FUNCTION DETAILS B-65270EN/05

- 212 -

cceleration 1

cceleration 3

Maximum compensation

value

Compensation value

cceleration

cceleration 2

cceleration 1

cceleration 2

cceleration 3

Maximum compensation

value

Compensation value

cceleration

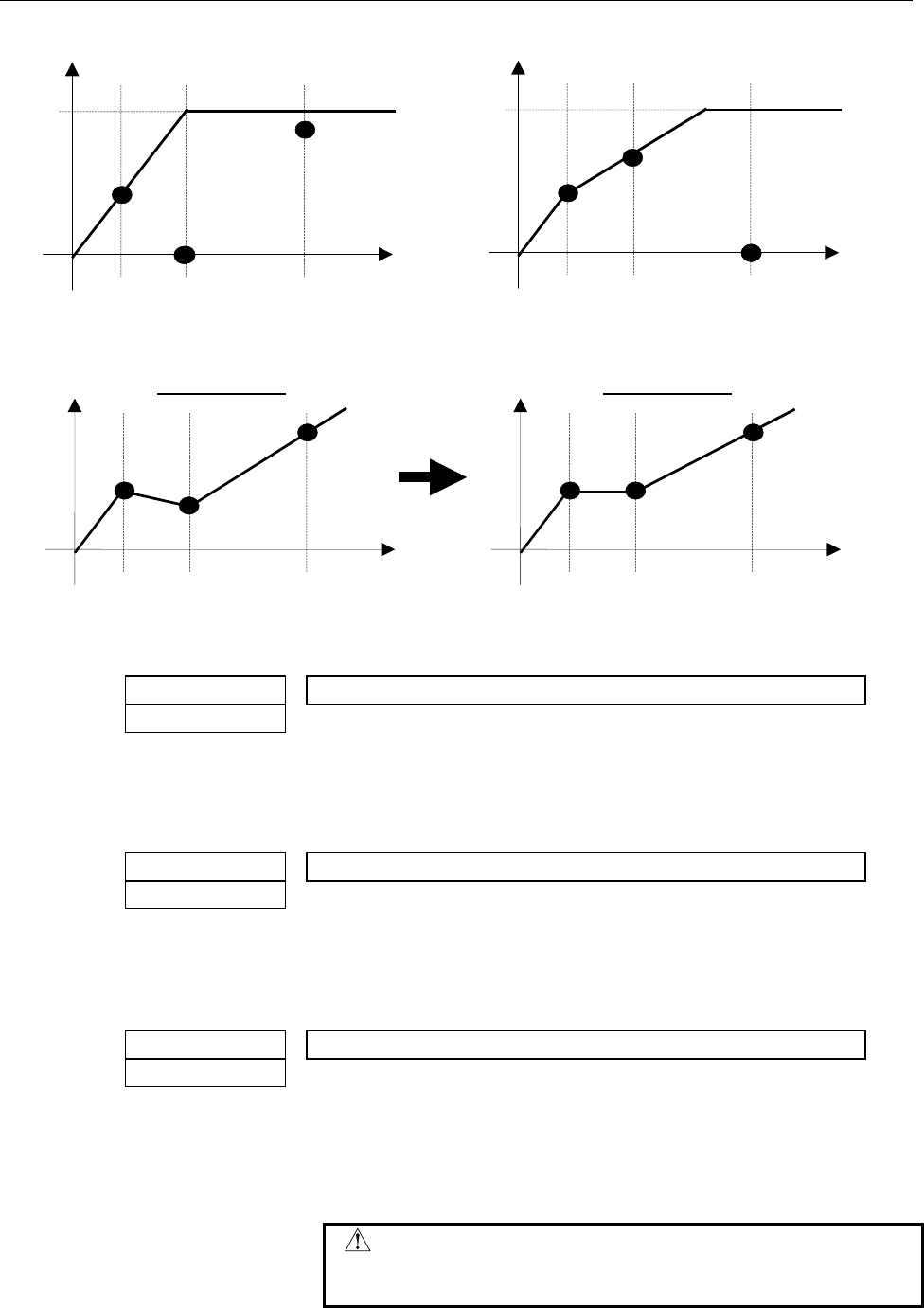

Fig. 4.6.9(g) Compensation curve when K2 = 0 Fig. 4.6.9(h) Compensation curve when K3 = 0

Corrected value

cceleration 1

cceleration 2

cceleration 3

Compensation

value

cceleration

Corrected value

cceleration 1

cceleration 2

cceleration 3

Compensation

value

Acceleration

Fig. 4.6.9(i) Automatic compensation of the compensation curve

(Acceleration torsion amount for each direction)

2804(FS15i)

Torsion preview control: Acceleration torsion compensation value K1N (LSTK1N)

2391(FS16i)

[Unit of data] Detection unit

[Valid data raneg] 0 to 32767

Set the amount of torsion generated at acceleration 1 (when the

acceleration is a negative value) in the detection unit.

2805(FS15i)

Torsion preview control: Acceleration torsion compensation value K2N (LSTK2N)

2392(FS16i)

[Unit of data] Detection unit

[Valid data raneg] 0 to 32767

Set the amount of torsion generated at acceleration 2 (when the

acceleration is a negative value) in the detection unit.

2806(FS15i)

Torsion preview control: Acceleration torsion compensation value K3N (LSTK3N)

2393(FS16i)

[Unit of data] Detection unit

[Valid data raneg] 0 to 32767

Set the amount of torsion generated at acceleration 3 (when the

acceleration is a negative value) in the detection unit. If 4 is set,

acceleration 2 and the settings up to K2 apply.

CAUTION

When all the three accelerations are not used, set 0

in the parameter of the acceleration not used.
