B-65270EN/05 4.SERVO FUNCTION DETAILS

- 361 -

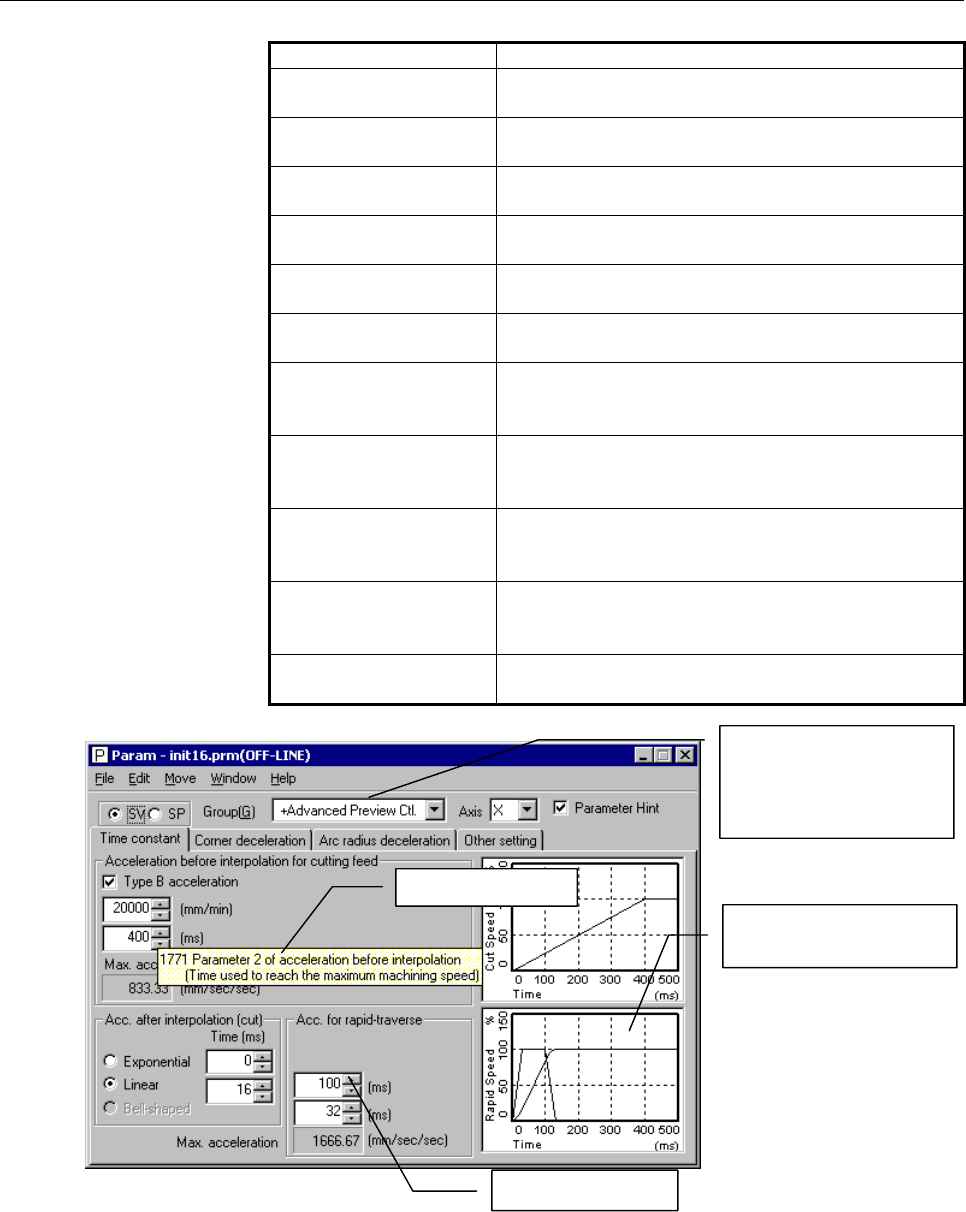

Overshoot improvement Setting for overshoot correction

High-speed positioning

Setting of FAD + advanced preview feed-forward and

position gain line graph

Stop

Setting related to brake control and quick stop at

emergency stop

Unexpected disturbance

torque detection

Estimated disturbance value tuning and alarm detection

level

Linear motor

Setting of AMR conversion coefficient and smoothing

compensation

Spindle system setting

Extracting and displaying information related to spindles

from CNC options.

Spindle system

configuration

Motor edge sensor setting, spindle edge sensor setting,

and gear ratio setting (main and sub)

Spindle ordinary velocity

control

Velocity loop gain setting and filter setting for

anti-vibration (main and sub) or resonance elimination

filter

Rigid tapping

Command setting, velocity control setting (main and

sub), position control setting, and fine acc./dec. (for

Series 16i and so on)

Cs contour control

Command setting, velocity control setting, position

control setting, fine acc./dec. (for Series 16

i and so on),

and resonance elimination filter

Orientation

Velocity control setting, position control setting,

acceleration setting (high-speed orientation), and

resonance elimination filter

Spindle synchronous

control

Velocity control setting, position control setting, and

resonance elimination filter

Function categories

- Acceleration/deceleration

- Velocity control

- Rigid tapping, etc.

Tip on parameters

cceleration/deceleration

pattern display

Parameter setting

Parameter window (example)
