AC Servo Motor Alpha i/is, Beta is Series Parameter manual Page 194

Parameter manual
4.SERVO FUNCTION DETAILS B-65270EN/05
- 184 -

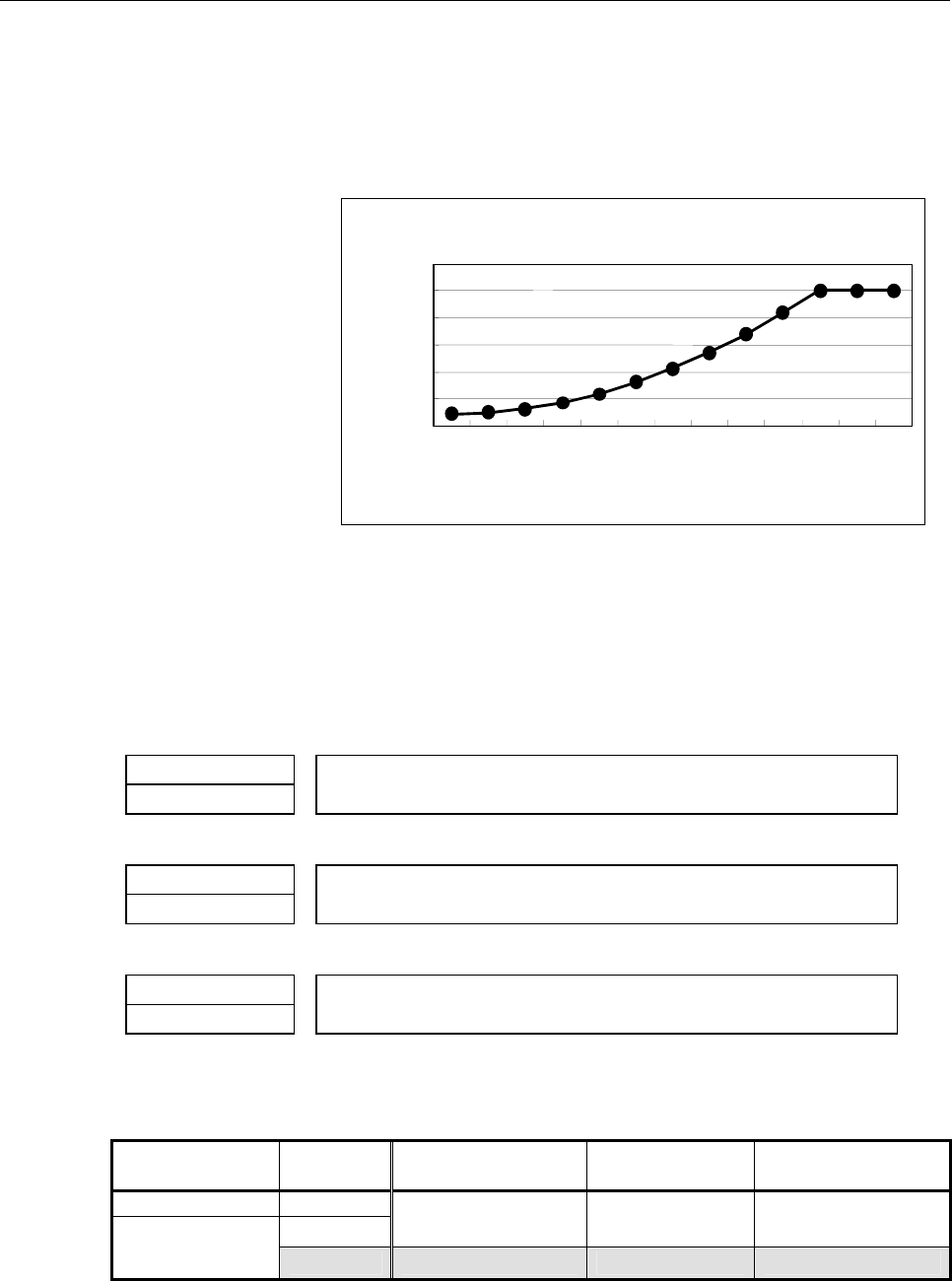

[Example] Example of setting the acceleration amount when a model such as the
Series 16i is used
Acceleration amount (parameter No. 2048) = 46, acceleration amount
override (parameter No. 2114) = 23, limit of acceleration amount
(parameter No. 2338) = 500
Backlash acceleration amount when override is set
0
100
200
300
400
500
600
0
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
5500
6000
Feedrate (mm/min)
Backlash acceleration amount
<4> Setting the direction-based backlash acceleration function
When the optimum acceleration amount differs between a reverse
operation in the positive direction and a reverse operation in the
negative direction, set the acceleration amount used for the
reverse operation from the negative direction to positive direction
in the following parameter:
1987(FS15i)
2094(FS16i)
Backlash acceleration amount (for reverse from negative to positive
direction)
[Typical setting] 20 to 600
2753(FS15i)
2340(FS16i)
Acceleration amount override (for reverse from negative to positive
direction)
[Valid data range] 0 to 32767
2754(FS15i)
2341(FS16i)
Limit of acceleration amount (for reverse from negative to positive direction)
[Valid data range] 0 to 32767 (When 0 is set, the acceleration amount is not limited.)
[Parameters used for direction-based setting]
Series30i,16i, and so on
Direction-based
setting
Reverse
direction
Backlash
acceleration amount
Acceleration
amount override
Limit of acceleration
amount
None Common
From + to -
No. 2048 No. 2114 No. 2338
Present
From - to +
No. 2094 No. 2340 No. 2341
