4.SERVO FUNCTION DETAILS B-65270EN/05

- 320 -

(d) Usage

When the rising edge of the disturbance input bit (DSTIN) is detected,

application of vibration is started. Vibration is automatically stopped

after a sine sweep is performed from the start frequency to the end

frequency. The operation is stopped by a reset or an emergency stop.

After the emergency stop is released, disturbance input is resumed

starting with the start frequency by setting the function bit off then on

again.

[Example of setting]

No.2326 = 500 Æ Gain = 500

No.2327 = 0 Æ Start frequency = 10Hz

No.2328 = 0 Æ End frequency = 200Hz

No.2329 = 0 Æ Number of measurement points = 3

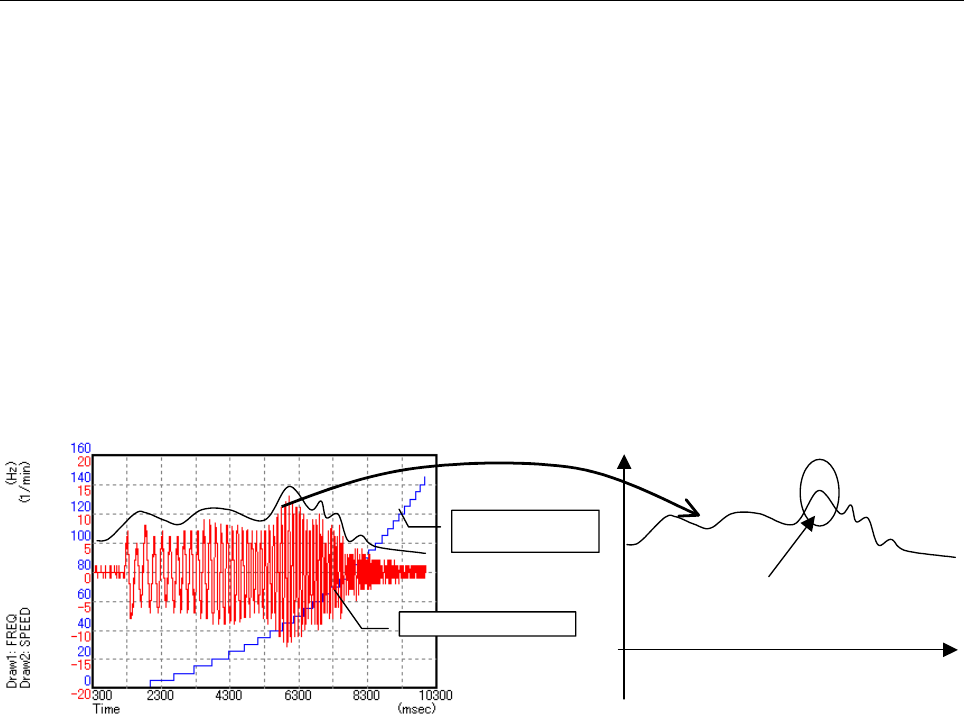

By using SERVO GUIDE, obtain data, and display the frequency

(ch1) and velocity feedback (ch2) in the XY-YT mode.

Velocity feedback

Input sine wave

frequency

Resonance

point

Gain characteristic

Frequency

As shown in the above waveform, the envelope of the velocity

feedback indicates the gain characteristic at each frequency, and a

swell portion in the waveform shows a resonance point.

Adjust the tandem disturbance elimination control parameters so that

the degree of the gain swell at the resonance point is reduced.

(7) Notes on Series 90B3 and 90B7

Series 90B3 and 90B7 are used for applications that require learning

control. It is assumed that the mechanical coupling between two

rotation axes, C1 and C2, is released. So, only when the two axes are

mechanically coupled with each other, tandem disturbance elimination

control functions. Whether the two axes are mechanically coupled

with each other can be checked using the input of the external signal

G139 (coupling flag). For details of the external signal interface, refer

to the description of "Tandem leaning control" in "Learning Function

Operator's Manual (A-63639E-034)".
