B-65270EN/05 3. αiS/αiF/βiS SERIES PARAMETER ADJUSTMENT

- 97 -

<2> Velocity feed-forward adjustment

When feed-forward is enabled, the time required for positioning

can be reduced, but a swell may occur due to insufficient velocity

loop response immediately before machining stops. A swell can

be reduced by an increased velocity loop gain, but there is an

upper limit on the velocity loop gain. So, adjust the velocity

feed-forward coefficient to reduce a swell for positioning time

reduction.

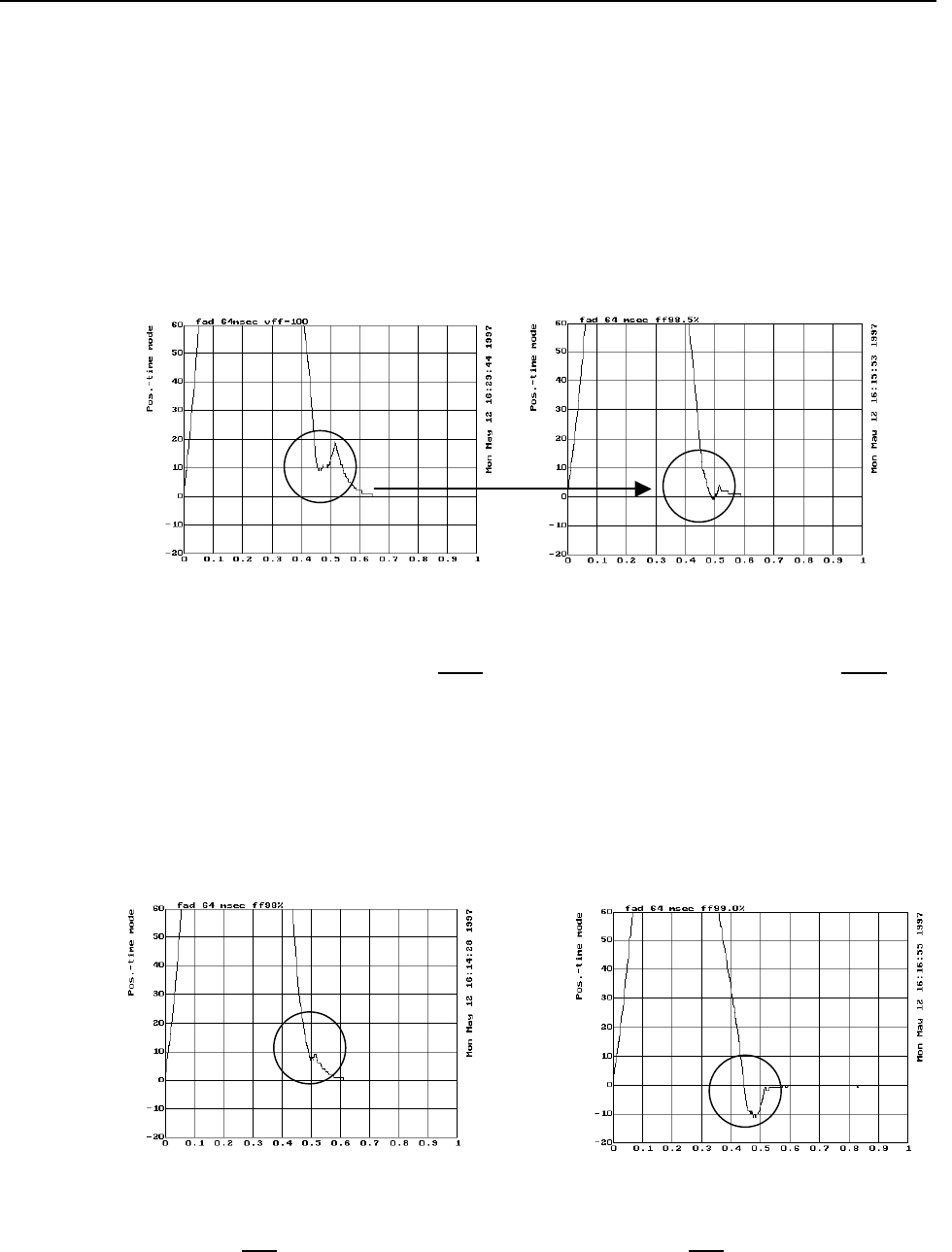

The default settings cause a swell immediately before machining

stops (Fig. 3.3.3 (f)). The swell can be reduced by increasing the

velocity feed-forward coefficient (Fig. 3.3.3 (g)).

n optimum is

achieved

when the

swell here is

reduced.

swell is

observed

immediately

before

machining stops.

Fig. 3.3.3 (g) After velocity feed-

orward

adjustment

FAD: 64 ms

Feed-forward: 98.5%

Velocity feed-forward coefficient: 250%

Fig. 3.3.3 (f) Before velocity feed-

orward

adjustment

FAD: 64 ms

Feed-forward: 98.5%

Velocity feed-forward coefficient: 100%

<3> Fine adjustment of feed-forward

Reduce the time required for positioning by making a fine

adjustment of the feed-forward coefficient. If the feed-forward

coefficient is not sufficiently large (Fig. 3.3.3 (h)), increase the

feed-forward coefficient by about 0.5%. If the feed-forward

coefficient is too large (Fig. 3.3.3 (i)), decrease the feed-forward

coefficient by about 0.5%.

Fig. 3.3.3 (h) When the

eed-

orward coefficient

is too small

FAD: 64 ms

Feed-forward: 98%

elocit

feed-forward coefficient: 250%

Fig. 3.3.3 (i) When the

eed-

orward coefficient

is too high

FAD: 64 ms

Feed-forward: 99%

elocit

feed-forward coefficient: 250%

If the position

feed-forward coefficient is

too large, an overshoot

occurs immediately

before machining stops.

If such an overshoot is

allowed from the

viewpoint of precision, the

time required for

positioning is reduced.

If the feed-forward

coefficient of the

position loop is too

small, an undershoot

occurs, resulting in a

longer time
