13.5 PROGRAMMABLE MIRROR IMAGE (G50.1, G51.1)
By a programmed command, the mirror image function can be used for
Axis of symmetry (X=50)
Axis of symmetry
(1) Original image of a programmed command
(2) Image symmetrical about a line parallel to the Y-axis and crossing the X-axis at
(3) Image symmetrical about point (50, 50)
(4) Image symmetrical about a line parallel to the X-axis and crossing the Y-axis at

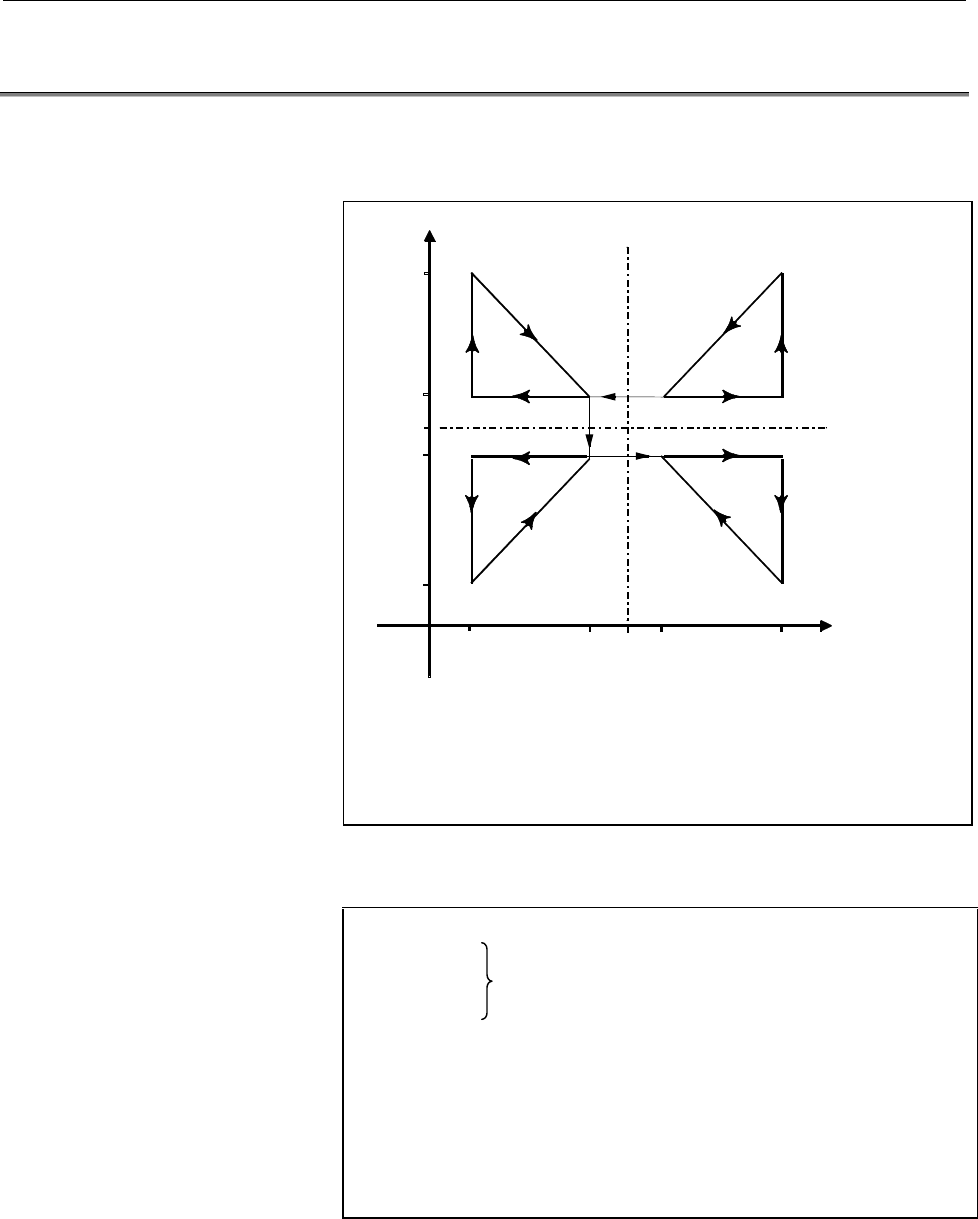

Fig14.12 Programmable Mirror image
G51.1 IP_ ;
G50.1 IP_ ;
Setting a programmable image
A mirror image of a command specified in
theseblocks is produced with respect to the
axis of symmetry specified by G51.1 _;.
Canceling a programmable mirror image
Point (position) and axis of symmetry for
producing a mirror image when specified
with G51.1. Axis of symmetry for producing
a mirror image when specified with G50.1.
Point of symmetry is not specified.
