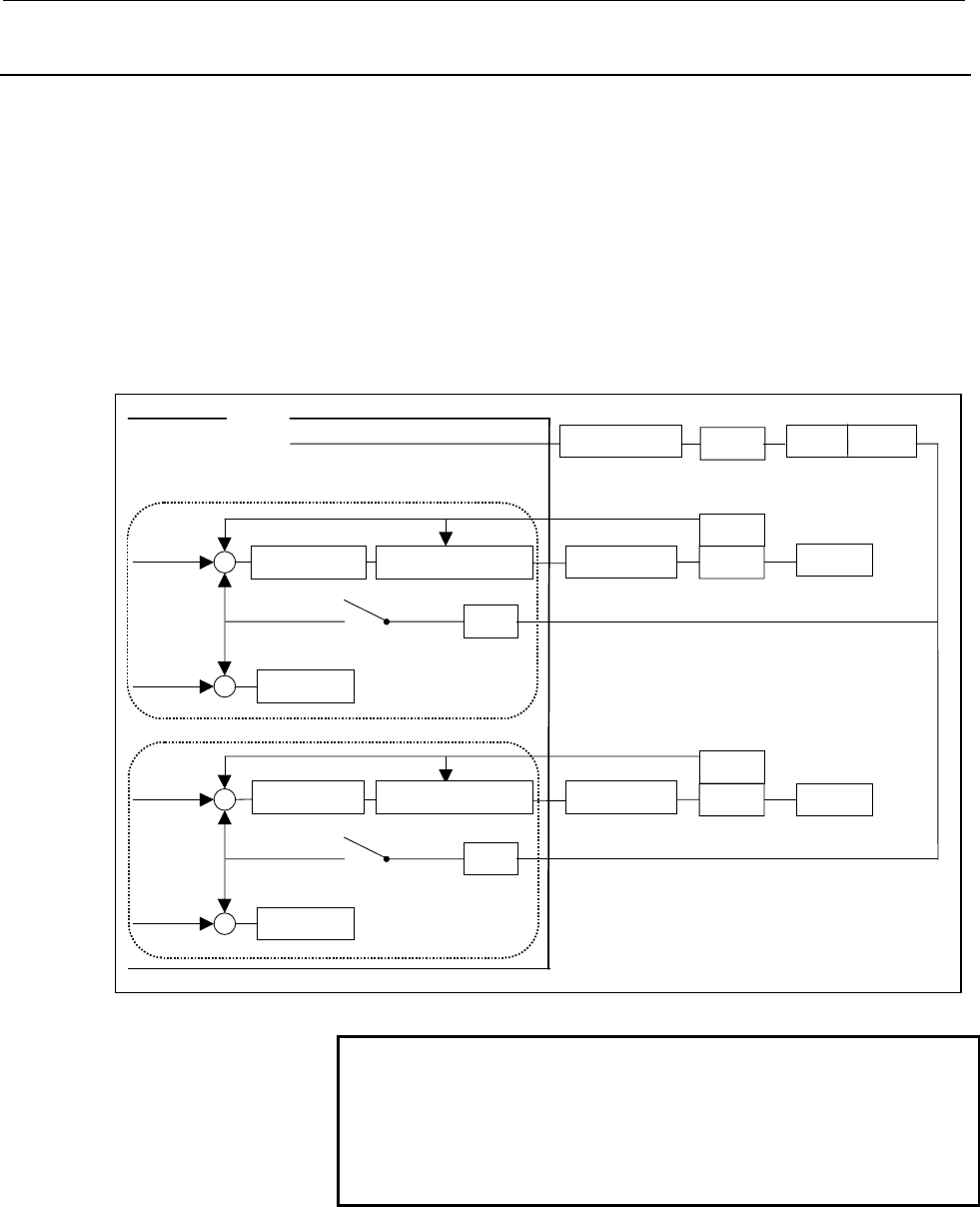

19.9.3 Example of Controlled Axis Configuration
- Gear grinder
Spindle : EGB master axis: Tool axis
First axis : X
Second axis : Y
Third axis : C-axis (EGB slave axis: Workpiece axis)
Fourth axis : C-axis (EGB dummy axis: Not usable as an ordinary
controlled axis)
Fifth axis : V-axis (EGB slave axis: Dressing axis)
Sixth axis : V-axis (EGB dummy axis: Not usable as an ordinary
controlled axis)
NOTE
With a sampling frequency of 1 ms, a feedback pulse
signal is read from the master axis, the number of
synchronization pulses for the slave axis is calculated
from the synchronization factor K, and the calculated
value is used for slave axis position control.
+
-
CNC
Motor
Spindle Detector
Spindle (master axis)
First axis X (omitted)
Second axis Y (omitted)
Tool axis
Third axis
Slave axis
Fourth axis
Dummy axis
Follow-up
EGB
C
-
+
+
-
+
K
1
:Synchronization factor
K
2
:Synchronization factor
Fifth axis
Slave axis
Sixth axis
Dummy axis
Follow-up
EGB
V
-
+
+
Dressing axis
K
1
Error counter
Synchronization switch
Motor
Detector
Servo amplifier
K
2
Error counter
Synchronization switch
Motor
Detector
V-axis
Workpiece axis
C-axis
Spindle amplifier
Position control Speed/current control
Position control Speed/current control
Servo amplifier
