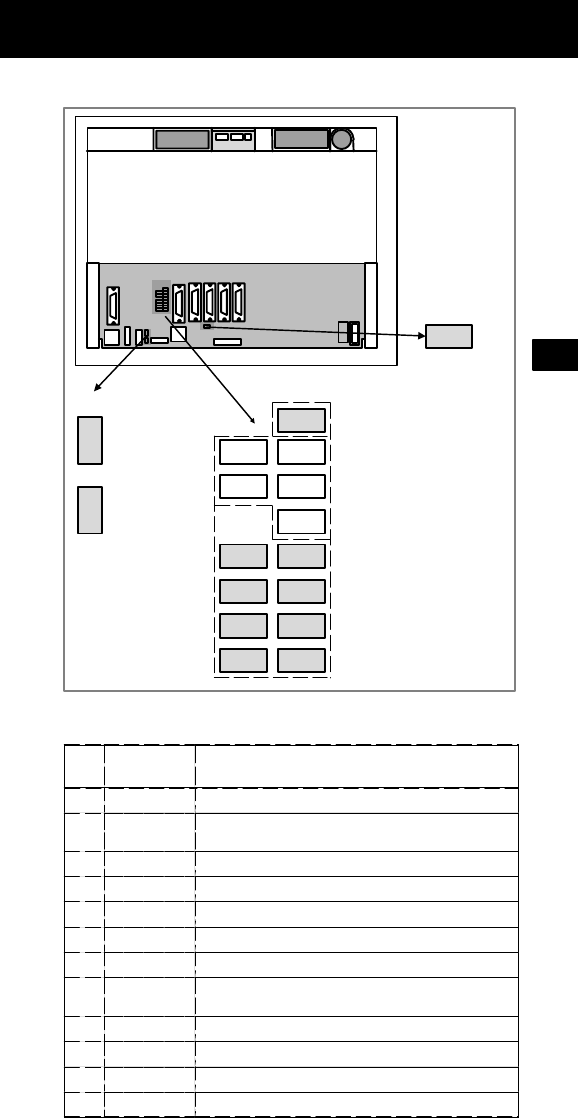

6.1 LCD–Mounted Type i Series Hardware

152

D LED display

Indicates the link

state of the Ether-

net on the NC

side. This LED

lights when a link

is established.

Rear of unit

Status (Green)

SYSFAIL PARITY1

Flashes while data

is being sent or re-

ceived over the

Ethernet on the

PC side.

Lights when a

link is estab-

lished in 100

Mb/s mode over

the Ethernet on

the PC side.

LED

LINK

POWER

PARITY2 SVALM

SYSEMG

LED8 LED4

LED7 LED3

LED6 LED2

LED5 LED1

Alarm (Red)

See next page.

Status (Green)

* LED1 to LED4 : NC side status

LED5 to LED8 : PC side status

(1) Changes in status LED (green) indication at power–on time (NC side

status : Green LED)

No.

Status LED

1.2.3.4

Status

1 jjjj Power is not supplied.

2 JJJJ Initial status immediately after power is switched on; boot

is running.

3 jJJJ System activation started.

4 JjJJ Waiting for each processor ID in the system to be set up.

5 jjJJ Each processor ID in the system has been set up.

6 JJjJ FANUC bus initialized.

7 jJjJ PMC initialized.

8 JjjJ Information about the hardware configuration of each

printed–circuit board in the system has been set up.

9 jjjJ PMC ladder initialized.

10 jJJj Waiting for digital servo to be initialized.

11 JJJj Digital servo initialized.

12 Jjjj Initialization completed, and usual operation under way.

J: On j: Off
