6. HARDWARE

191

6.2 Stand–Alone Type i Series Hardware

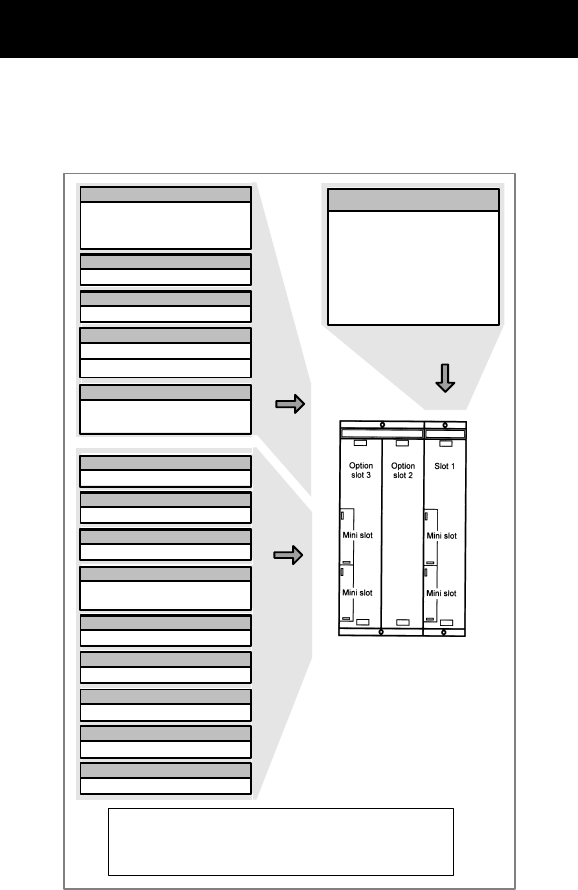

6.2.1 Overview of hardware

(1) Series 16i/160i/160is

The mounting position of an option board depends on the board type, as shown below:

The option board marked with *1 fits into option slot 2.

The option board marked with *2 fits into option slot 3.

The option board marked with *3 fits into a mini slot (of any slot).

RISC board (M series only)(*1)

High–precision contour control function

Sub–CPU board(*2)

Sub–CPU for two–path control

⋅ 2–axis to 8–axis control

⋅ Spindle interface

⋅ Analog output

Data server board(*1)

Data server function (ATA card)

RISC + data server board (M series only)(*1)

High–precision contour control function

Data server function (ATA card)

Serial communication board(*3)

Remote buffer/DNC1/DNC2

Ethernet board(*3)

Ethernet interface

PMC C language board(*3)

C language function for PMC

Super CAPi T board (T series only)(*3)

Conversational automatic programming function

HSSB interface board(*3)

High–speed serial bus interface

I/O Link–II board(*3)

I/O Link–II interface

DeviceNet interface board(*3)

DeviceNet interface

PROFIBUS board(*3)

PROFIBUS function

FL–net board(*3)

FL–net function

Main CPU board

CPU for controlling CNC

⋅ Power

⋅ 2–axis to 8–axis control

⋅ Spindle interface

⋅ I/O Link

⋅ PMC–SB7

⋅ Analog output (option)

⋅ High–speed DI

⋅ RS–232C x 2

⋅ Memory card interface

⋅ Display interface

⋅ Ethernet

Mounted in slot 1

Basic system

Option

Mini–slot

options

1–slot cabinet or

3–slot cabinet

Loader control board (*1)

Loader control function

2–axis to 4–axis control

Loader I/O (I/O Link connection)
