6.2 Stand–Alone Type i Series Hardware

216

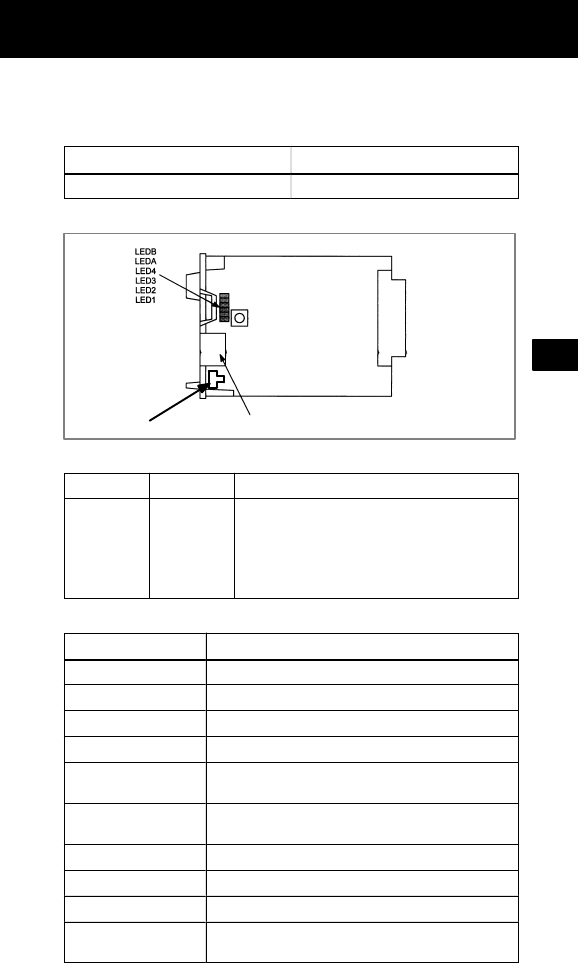

6.2.3.6 HSSB interface board

D Specifications

Item

Code

HSSB interface board A20B–8001–0730

D Mounting positions of connectors, LEDs, etc.

SW1

(Up to the PWB03 version)

JNA

F–BUS backplane con-

nector

COP7: High–speed serial bus (HSSB) interface

SW1

(PWB04 version and later)

D LED display

LEDB Red HSSB communication has been interrupted.

LEDA Red A RAM parity alarm occurred in the common RAM

on the board.

The common RAM is mounted on this board. The

RAM is used to exchange information between

the CNC and personal computer and is not bat-

tery–backed.

Status display of the green LEDs j: Off J: On

4 3 2 1

Status

JJJJ Immediately after power–up

JJJj HSSB board initialization in progress

JJjJ Waiting for the booting of the PC side

JJjj CNC screen displayed on the PC

Jjjj Activation normally terminated, normal operation in

progress

jJJj Thermal error detected by the CNC display unit with

PC functions or PANEL i

jJjJ HSSB communication interrupted

jJjj Parity alarm in the common RAM

jjJJ Communication error

jjJj Battery alarm in the CNC display unit with PC functions

or PANEL i

NOTE The PC used in the above table includes PANEL i, CNC display unit

with PC functions, and CNC display unit for the is series CNC.
