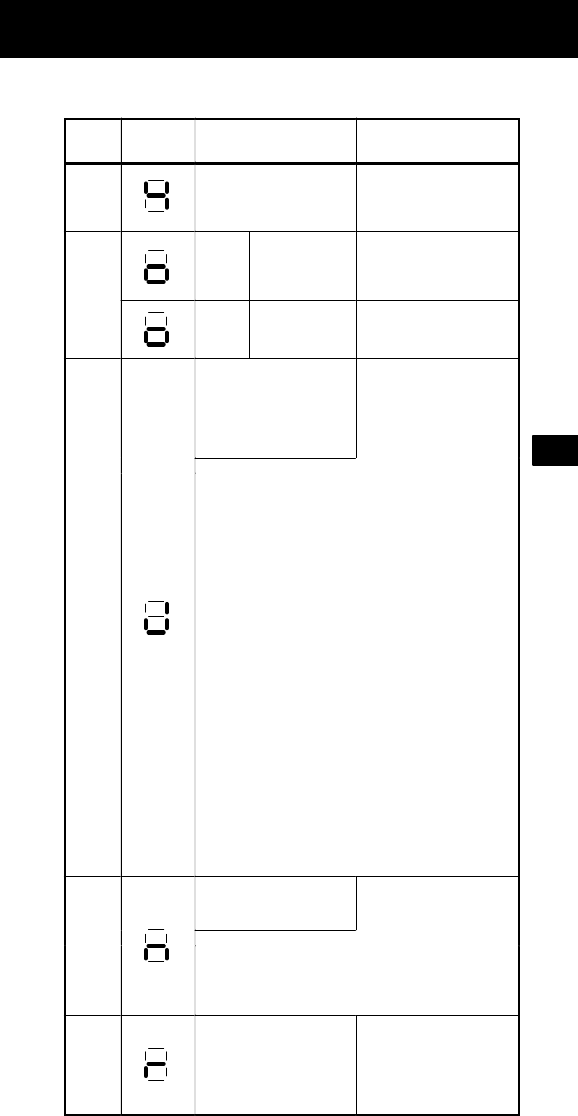

8.3 Alarms Indicated on the Screen of the Power Mate CNC Manag-

er (FANUC Servo Motor Amplifier β Series (I/O Link Option))

538

D Servo alarms

No.

LED

display

Description Countermeasure

400

The servo motor has over-

heated (estimated value).

The motor operation condi-

tion may be too severe.

Check the operation condi-

tion.

403

SVU–12 The cooling fins

have overheated.

SVU–20 (hardware detec-

tion)

The load on the motor may

be too high. Re–examine

the load conditions.

403

SVU–40 This alarm will not

be issued.

SVU–80

The regenerative discharge

unit has overheated.

This alarm is issued when

the average regenerative

discharge energy is too high

(when the acceleration/de-

celeration frequency is too

high, for example).

404

(1) When the separate regenerative discharge resistor is

not used: For the SVU–12 and the SVU–20, check

whether the CX11–6 connector is short–circuited with a

dummy connector; for the SVU–40 and the SVU–80,

check whether the CX20 and CX23 connectors are

short–circuited with a dummy connector.

(2) The average regenerative discharge energy may be too

high. Decrease the acceleration/deceleration fre-

quency.

(3) The separate regenerative discharge unit may not be

connected properly. Check the connection.

(4) The thermostat of the separate regenerative discharge

unit may be defective. Disconnect the separate regen-

erative discharge unit, then check the thermostat. If the

thermostat is open even through the separate regen-

erative discharge unit is cool, replace the separate

regenerative discharge unit.

(5) The resistor of the separate regenerative discharge unit

may be defective. Disconnect the separate regenera-

tive discharge unit, then check the resistance. If it does

not fall in the range of the predetermined resistance

"20%, replace the separate regenerative discharge

unit.

(6) If (1) to (5) are not the cause of the alarm, replace the

servo amplifier unit.

Reference position return

could not be executed cor-

rectly.

Re–execute reference posi-

tion return.

405

If a value in the range of 4 to 96 is set for parameter(*) 032

(CMR), an alarm may be issued. In this case, prevent an

alarm from being issued by setting N405 (parameter(*)

001#4) to “1”.

410

The servo position error in

the stop state is larger than

the value specified in

parameter(*) 110.

Determine the mechanical

cause of the large position

error. If no mechanical

cause is found, specify a

larger value for the parame-

ter(*).
