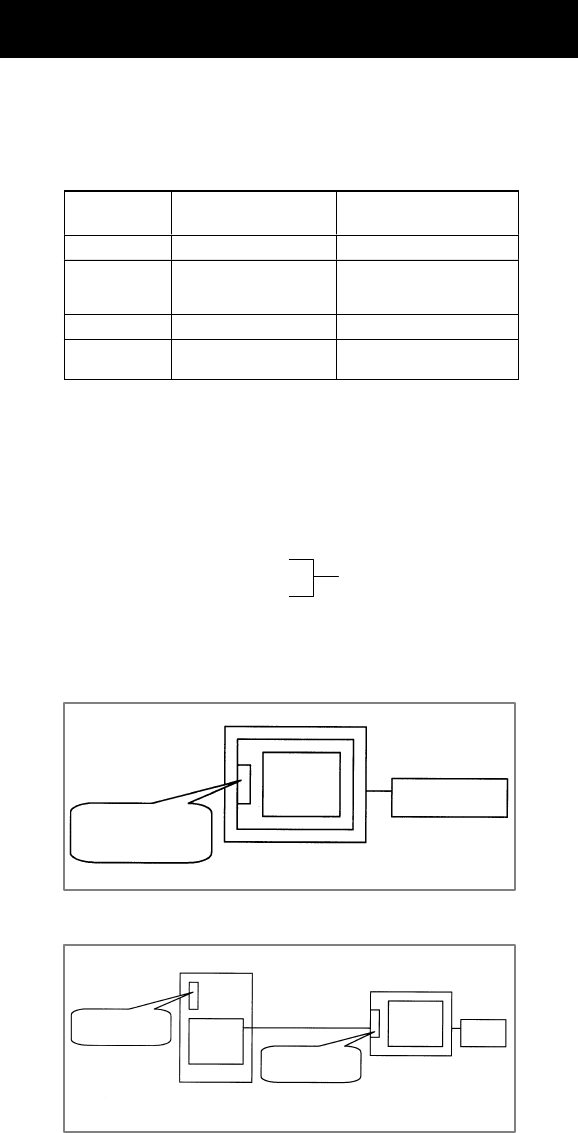

19. MAINTENANCE FUNCTION

915

19.2 Memory Card Slot

19.2.1 Overview

Whether a memory card slot is provided or not depends on the hardware

configuration. See the following table:

Hardware

configuration

Card slot on LCD unit Card slot on control unit

Type 1 Provided No card slot

Type 2

Type 6

Provided Provided

(This slot, however, cannot be

used.)

Type 3 No card slot Provided

Type 4

Type 5

No card slot

(See NOTE given below.)

Provided

(Supplementary)

– Types 1 to 6 indicate hardware configuration. See Subsec. 19.2.2.

– When both the LCD unit and control unit have a memory card slot, only

the memory card slot on the LCD unit can be used.

NOTE When the hardware configuration is type 4 or type 5, software write

operation and other operations are implemented by open CNC

functions. (→ See Section 19.5.)

D Memory card types (functions)

SRAM memory card

FROM memory card Data I/O

Flash ATA card

Modem card (for remote diagnosis)

19.2.2 Hardware configuration

D Type 1

LCD–mounted type

LCD

MDI

Card slot on LCD unit

Control unit (LCD–mounted type)

D Type 2

Stand–alone type (with an LCD unit)

LCD

MDI

Card slot on

control unit

LCD

link

card

Control unit

Optical cable

Card slot on

LCD unit

LCD unit for

stand–alone type
