11.4 Embedded Ethernet

706

11.4 Embedded Ethernet

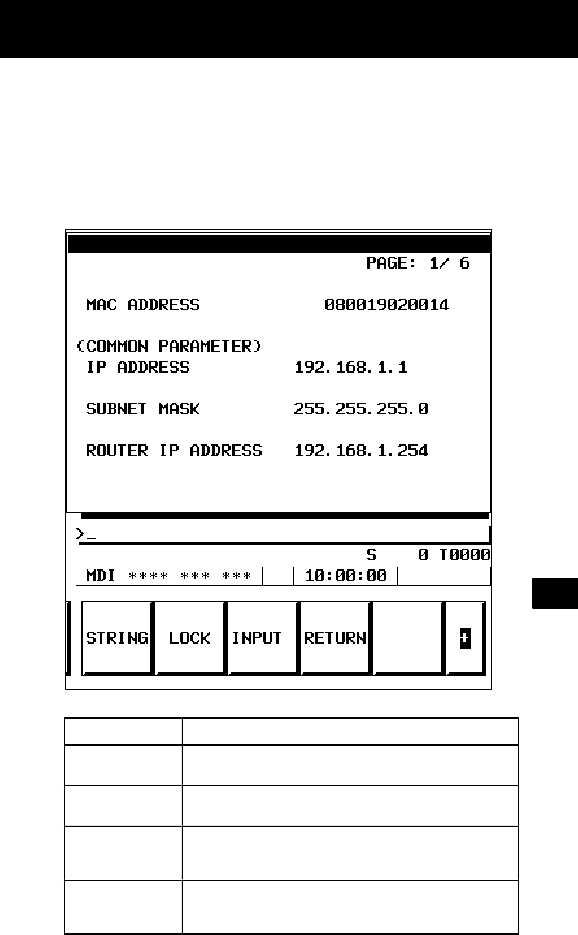

11.4.1 Parameter setting screen

The embedded Ethernet parameters can be set separately for the embedded

port and for the PCMCIA card.

You can switch between the parameter setting screens by using the page key.

(1) Common parameter

Item Description

MAC ADDRESS

(Display only)

Embedded Ethernet MAC address

IP ADDRESS Specify the IP address of the embedded Ethernet.

(Example of specification format: “192.168.1.1”)

SUBNET MASK Specify a mask address for the IP addresses of the net-

work.

(Example of specification format: “255.255.255.0”)

ROUTER IP

ADDRESS

Specify the IP address of the router.

Specify this Item when the network contains a router.

(Example of specification format: “192.168.1.254”)

NOTE The parameter for an IP address or file name specified by entering

characters can be cleared by entering spaces.
