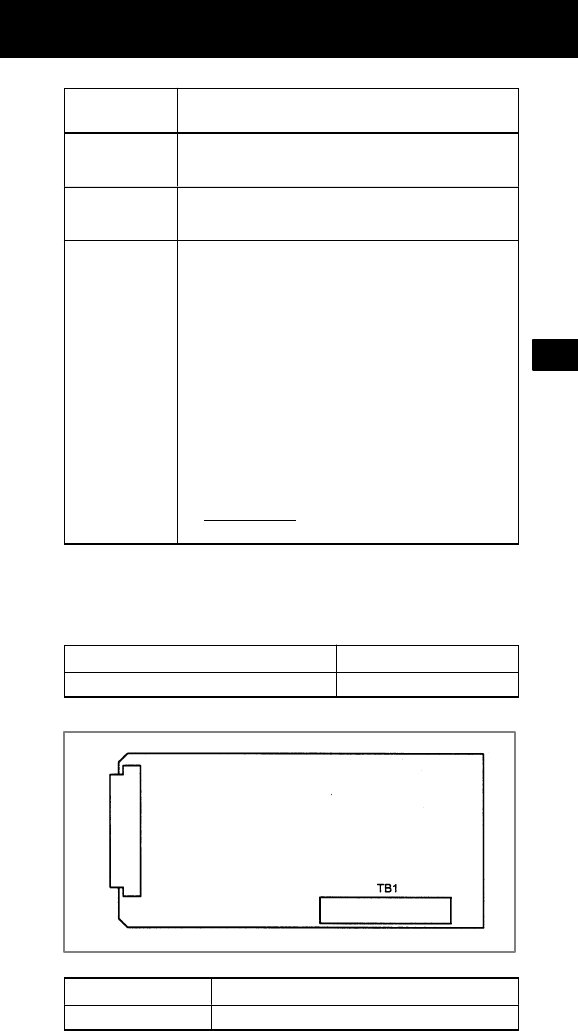

6.1 LCD–Mounted Type i Series Hardware

172

Rotary switch

setting

Contents

0 Setting for maintenance.

The start menu is displayed. It is possible to start boot and

IPL from the PC or PANEL i.

1 Setting for usual operation.

The start menu is not displayed.

It is impossible to start boot or IPL from the PC or PANEL i.

2 The CNC and PC or PANEL i do not perform the handshake

but start independently of each other.

D CNC

Even if the PC or PANEL i is not connected or turned

on, just the CNC can be started and operated. (For this

operation, a special display unit, MDI, operator’s panel,

and the like are necessary.) Even if the PC or PANEL i

is connected and turned on, the startup menu does not

appear.

D PC or PANEL i

Even if the CNC is connected or turned on, the startup

menu does not appear. The boot or IPL operation can-

not be performed from the PC or PANEL i.

If an HSSB device driver for Windows 95/98, WindowsNT4.0, or

Windows2000 is installed on the PC or PANEL i, just the PC

or PANEL i or CNC can be turned on or off.

For multi–connection, in which multiple CNC units are con-

nected to a single PC or PANEL i, usually select this setting.

NOTE PANEL i used here represents hardware that can operate on a

stand–alone basis (provide a stand–alone option).

6.1.3.11 I/O link–II board

Name Specification

FANUC I/O Link–II board A20B–8100–0250

D Connector location

JNA

F–BUS backplane connector

Connector number Application

TB1 Terminal board for FANUC I/O Link–II interface

D Card location

No card is mounted on the FANUC I/O Link–II board.
