Series 16i/18i/21i/160i/180i/210i/160is/180is/210is - Model B Operation and maintenance handbook Page 749

Operation and maintenance handbook

Page of 992

/ 992

11.4 Embedded Ethernet

716

11.4.5 Maintenance screen

The operation of the embedded Ethernet can be checked. The page key is

used for screen switching.

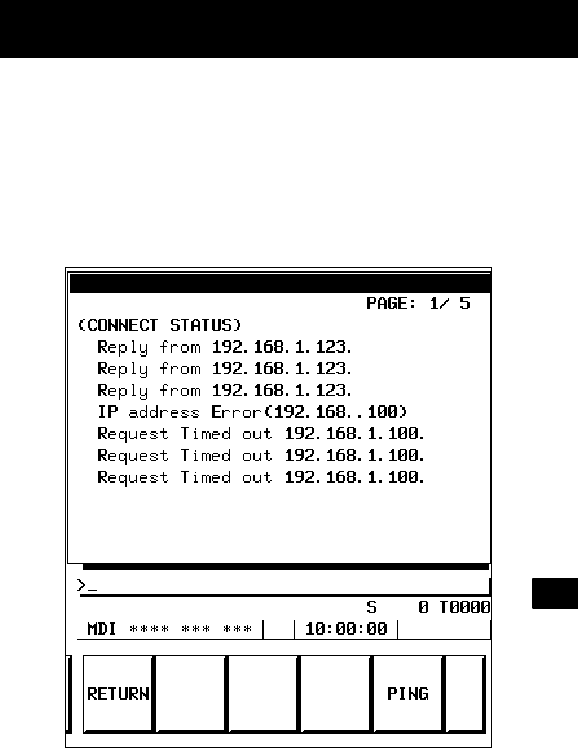

(1) Ping command transmission

By sending the ping command, the state of the communication cable and

whether the communication destination exists can be checked.

Enter the IP address of the communication destination with the MDI keys,

then press the [PING] soft key. Communications are performed three times

with the specified communication destination, and the results are displayed.

Reply from IP–address

This message indicates that a response was received from the

specified communication destination and that the specified

communication destination exists on the network.

Request Timed out IP–address

This message indicates that no response was received from the

specified communication destination and that the specified

communication destination does not exist on the network.

Check if the power to the communication destination equipment is

turned on. Check also the parameter settings and network installation

for errors.

IP address Error (IP–address)

The specified IP address is incorrect. Check the entered IP address.

Ping Service Error[224]

The Ethernet cannot be initialized. Check if the parameter settings are

correct, and also check if the Ethernet cable is connected correctly.
