11.5 Ethernet Option Board

738

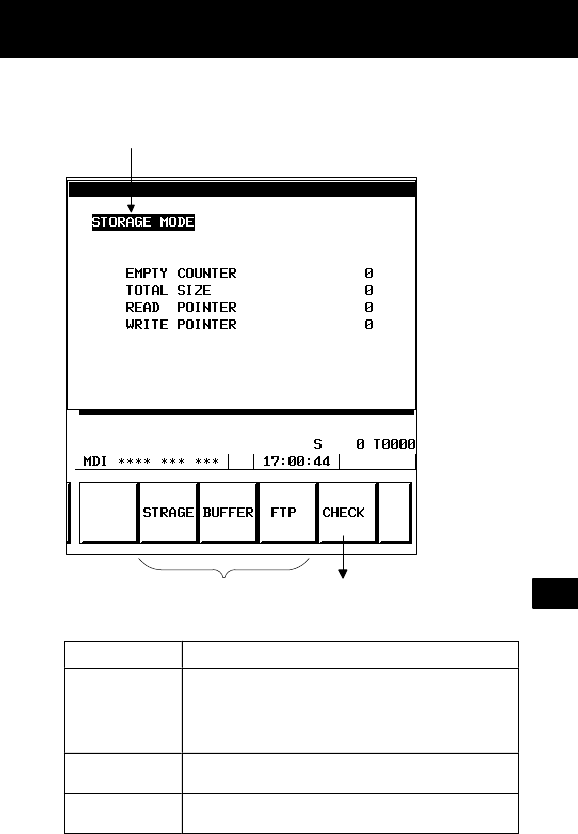

11.5.4 Data server maintenance screen

The current data server mode (storage mode,

buffer mode, or FTP mode) is indicated.

Mode switch key An ATA card can be

checked and formatted.

Item Description

EMPTY

COUNTER

Displays the number of times that the data buffer becomes

empty during transfer of the NC program from the data

server function to the CNC. This Item is initialized to 0 at

power–on. After being initialized, the Item is counted when

the conditions are satisfied.

TOTAL SIZE Displays the total number of transferred bytes when one

NC program is transferred using the data server function.

READ POINTER

WRITE POINTER

Displays internal buffer management information when the

data server function is used.
