11.4 Embedded Ethernet

708

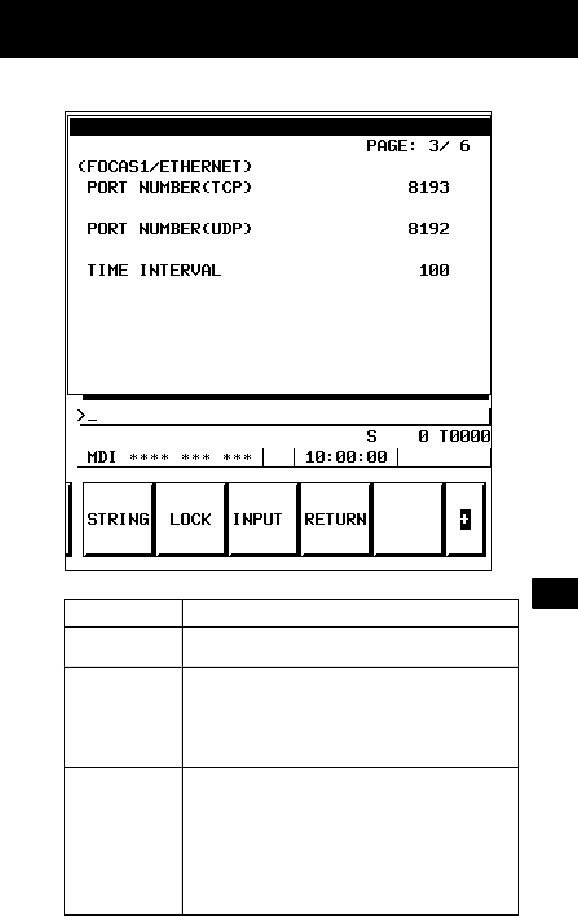

(3) FOCAS1/Ethernet parameter

Item Description

PORT NUMBER

(TCP)

Specify a port number to be used with the FOCAS1/Ether-

net function. The valid input range is 5001 to 65535.

PORT NUMBER

(UDP)

Specify this Item when using the DNC1/Ethernet function.

Specify a UDP port number for transmitting UDP broadcast

data.

The valid input range is 5001 to 65535.

Set 0 when using the FOCAS1/Ethernet function or when

transmitting no UDP broadcast data.

TIME INTERVAL Specify this Item when using the DNC1/Ethernet function.

Specify a time interval at which UDP broadcast data speci-

fied above with a UDP port number is transmitted.

The unit is 10 ms. The valid input range is 10 to 65535. This

means that a value less than 100 ms cannot be specified.

Set 0 when using the FOCAS1/Ethernet function or when

transmitting no UDP broadcast data.

Example) 100: Broadcast data is transmitted at intervals of

one second [1000 ms] (= 100 × 10).

NOTE The DNC1/Ethernet function uses broadcast data, so that the per-

sonal computer and CNC must be placed in one Ethernet segment.

Communications beyond the router cannot be performed.
