10.1 PMC–SB7

632

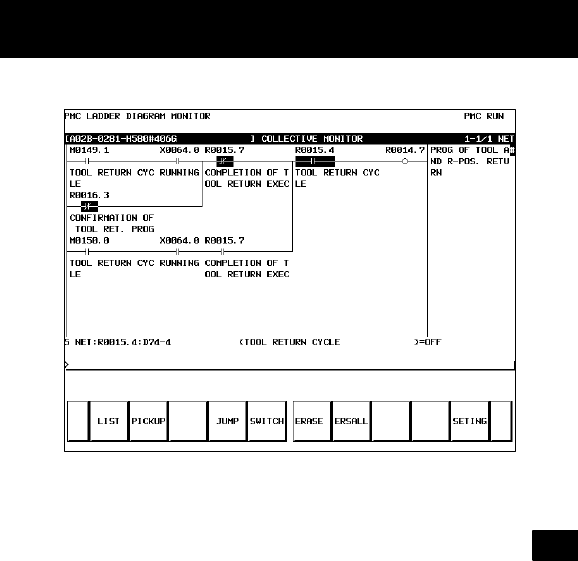

(2) Display information

(3) Specifying a ladder net to be monitored [PICKUP]

By using the method described below, a ladder net to be monitored on

the selection monitor screen can be read for display.

(a) Specifying a desired ladder net on the selection monitor screen

D Typing the address used with the coil to read the net

<1> Enter the address to be monitored.

<2> Press the [PICKUP] soft key.

<3> The net that uses the address specified by <1> with a coil

is read to the top of the screen.

D Specifying the ladder net on the selection monitor screen

<1> Move the cursor to the relay in the ladder net that uses an

address to be monitored.

<2> Press the [PICKUP] soft key.

<3> The net that uses the address specified by <1> with a coil

is read to the top of the screen, and the cursor moves to

the coil position.

(b) Specifying a desired ladder net on the ladder diagram display

screen

<1> Press the [SEARCH] soft key on the ladder diagram

display screen.

<2> Move the cursor to the ladder net to be read.

<3> Press the [PICKUP] soft key.

(4) Jumping to a ladder diagram on the ladder diagram display screen

[JUMP]

Make a jump by finding, on the ladder diagram display screen, the

ladder net where the cursor is placed on the selection monitor screen.

<1> Move the cursor to the net to which you want to jump.

<2> Press the [JUMP] soft key.

(5) Switching to the ladder diagram display screen [SWITCH]

The screen display can be switched to the ladder diagram display

screen.

(6) Deleting the display of one ladder diagram net [ERASE]

One ladder net read into the selection monitor screen can be erased

from the screen.
