17. AC SPINDLE

865

A06B–1407–B100

C99XA1234

A06B–6111–H011#550

V0020090601

A06B–6110–H015

V0020031702

Additional Information

Even if replacement is performed reasonably such as for repairing,

this function incorrectly indicates the * mark when it detects the re-

placement.

To clear the * mark, follow the steps below to update the registered

data, as described in the editing section later.

(1) Make the registered data editable. (PRM13112#0(IDW) = 1)

(2) On the edit screen, place the cursor on the item from which

you want to delete the * mark.

(3) Operate the soft keys [CHANGE], [INPUT], and [SAVE] in that

order.

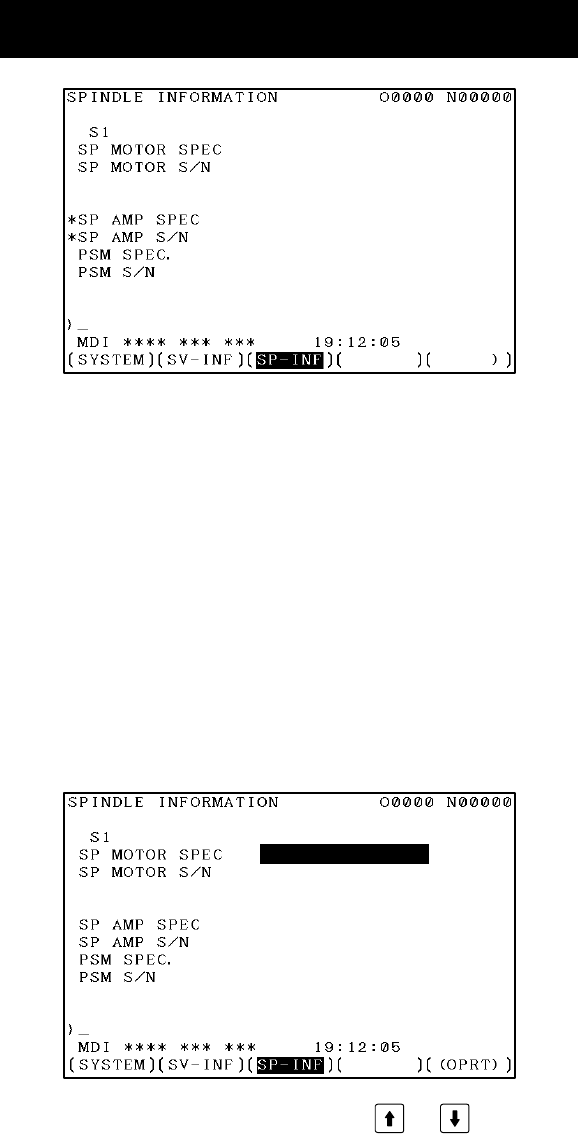

17.5.2 Editing the spindle information screen

1 Assume that PRM13112#0(IDW) = 1.

2 Press the MDI switch on the machine operator’s panel.

3 Follow the steps shown in “Displaying the spindle ID screen” to display

the screen as shown below.

A06B–1407–B100

C99XA1234

A06B–6111–H011#550

V0020090601

A06B–6110–H015

V0020031702

4 To move key–in buffer on the screen, use the and keys.
