11.5 Ethernet Option Board

724

11.5 Ethernet Optional Board

This section provides a description based on the fast Ethernet board/fast

data server.

The Ethernet board/data server of 10BASE–T type does not support the

maintenance screen described in Subsection 11.5.5.

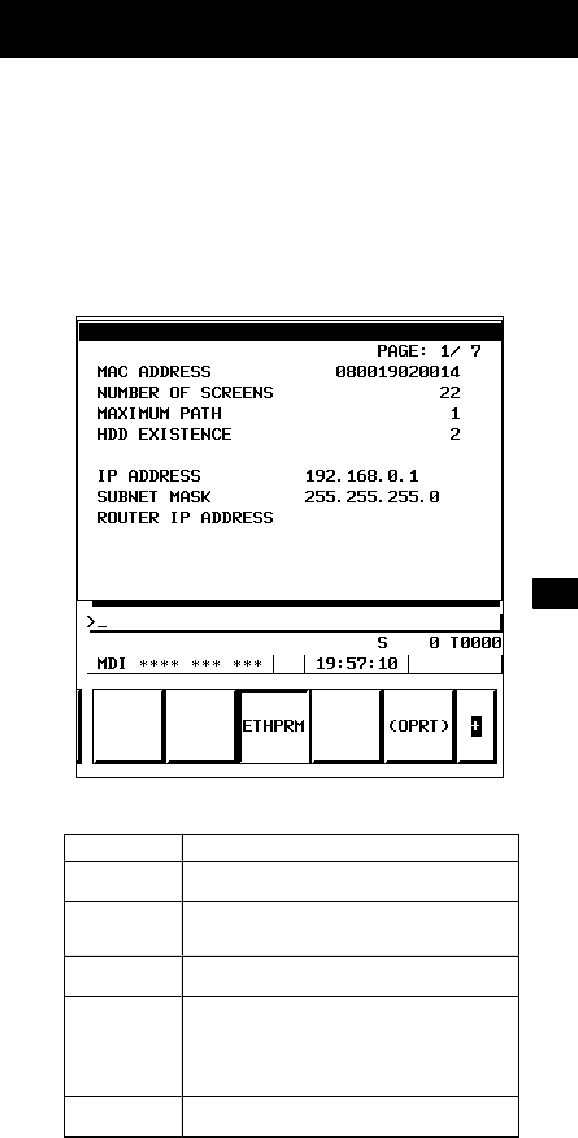

11.5.1 Parameter setting screen

The page key is used for screen switching.

(1) Common parameters

Item Description

MAC ADDRESS

(Display only)

MAC address of the Fast Ethernet board

NUMBER OF

SCREENS

(Display only)

Total number of Ethernet error message screens used by

the Ethernet functions

MAXIMUM PATH

(Display only)

Number of control systems in the CNC

HDD EXISTENCE

(Display only)

Indicates whether ATA flash card is mounted on the Ether-

net board.

0 : Not mounted.

1 : A hard disk is mounted

(for a data server of 10BASE–T type only).

2 : An ATA card is mounted.

IP ADDRESS Specifies the IP address of the CNC.

(Format: “192.168.0.1”)
