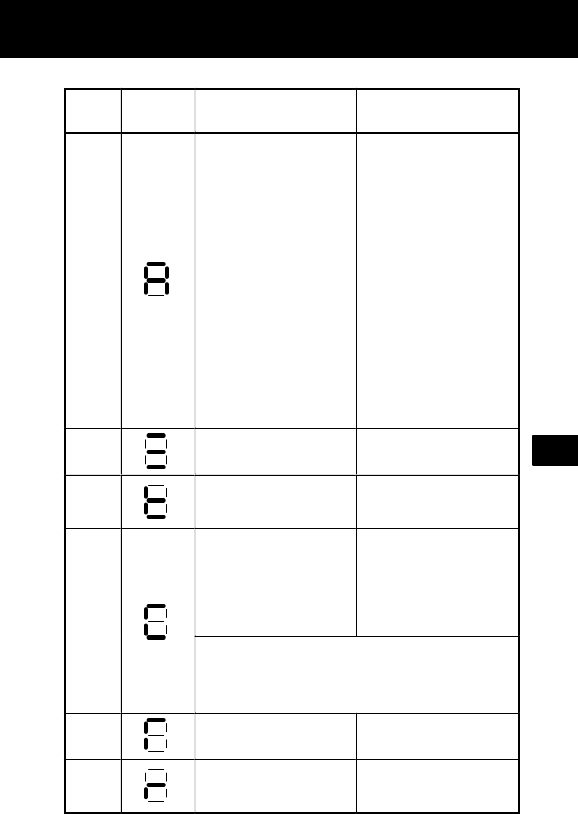

8.3 Alarms Indicated on the Screen of the Power Mate CNC Manag-

er (FANUC Servo Motor Amplifier β Series (I/O Link Option))

542

No. CountermeasureDescription

LED

display

417

A parameter(*) has been

specified incorrectly.

Check the following param-

eters(*):

No.030: Is the specified

motor type cor-

rect?

No.031: Is the specified

direction of rota-

tion of the motor

correct?

No.106: Is the denominator

of the number of

pulses per single

revolution of the

motor 0?

No.180: Is the specified

reference counter

capacity 0 or a

negative value?

418

A DO alarm is issued. Replace the servo amplifier

unit.

423

The specified speed

exceeds 32767000 detec-

tion units per second.

Re–examine the CMR and

speed settings.

425

The cooling fan has

stopped.

This alarm is issued when

the fan motor built into the

servo amplifier unit has

failed.

The fan motor is consum-

able.

(1) Check that the fan is not clogged with foreign matter.

(2) Check that the power connector of the fan is connected

properly.

(3) Replace the fan or servo amplifier unit.

446

The external pulse input line

is disconnected.

Connect the external pulse

input signal correctly.

447

The velocity deviation is too

high (velocity control)

Check the actual velocity.

See the settings of parame-

ter(*) 136.

NOTE Parameter(*) = Parameter to be set on the power mate CNC man-

ager or I/O Link β amplifier
